Summary of Contents for Exhausto EBC11

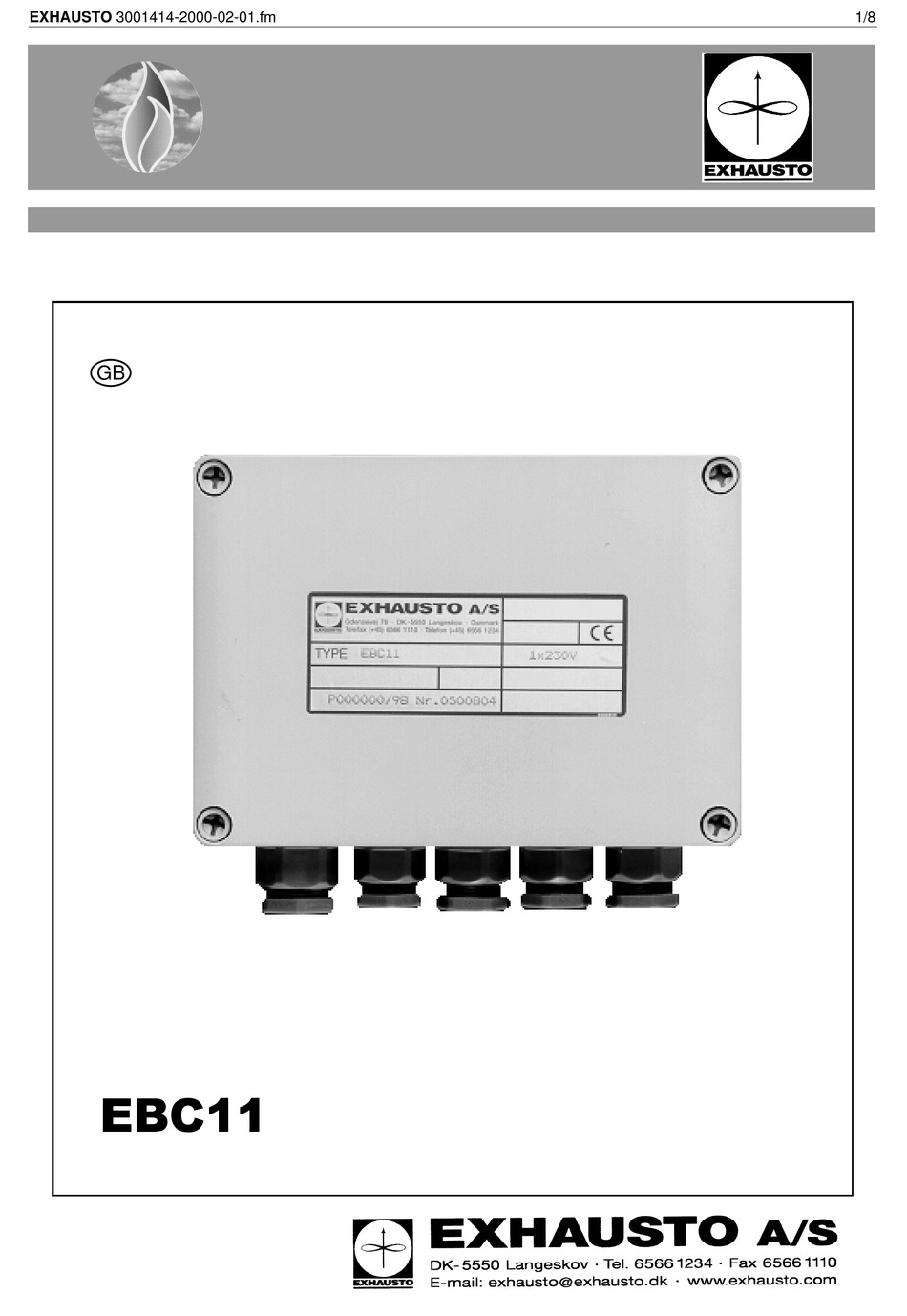

  • Page 1 EXHAUSTO 3001414-2000-02-01.fm (%&44...
  • Page 2 Technical data ______________________________________________________________________________ 8 Product Description The control has a 12-second built-in delay function to The EXHAUSTO control system EBC 11 (Fig. 1) is avoid nuisance cut-outs. used in connection with installation of EXHAUSTO When the boiler stops, the chimney fan stops too. It is chimney fans to heating appliances.
  • Page 3 EXHAUSTO 3001414-2000-02-01.fm Installation Terminals (Fig. 3) Supply L1 (230V) Operation Supply N The control system is installed in the boiler room. Supply PE 4-5 Boiler thermostat 1. Opto coupler (~/-10-230V) 6-7 Boiler thermostat 1. Opto coupler (~/+10-230V) Electric connection 24V DC supply for voltage free contact...
  • Page 4 EXHAUSTO 3001414-2000-02-01.fm 2.2.1 Example of connection The control system can be connected to a supply volt- age as well as a voltage free contact. If in any doubt regarding the correct connection to the boiler con- trols, please contact the boiler manufacturer for advice.
  • Page 5 EXHAUSTO 3001414-2000-02-01.fm 2.2.3 Example 2 – Voltage start signal from timer (Fig. 5) The example shows how voltage start signal from the timer is connected to the EBC 11. • Power supply to the control is connected over terminals 1-3.
  • Page 6 EXHAUSTO 3001414-2000-02-01.fm Installation 1. Set the potentiometer 1 and 2 to its maximum set- Item 2.3.1. must be read before starting installation. ting. (Fig. 6-A and 6-B). 2. Set the pressure differential switch (PDS) at mini- mum. The PDS is typically placed inside the chimney 2.3.1 Dipswitch-setting...
  • Page 7 EXHAUSTO 3001414-2000-02-01.fm Fault finding Observation Type of fault Solution No light in SUPPLY (Fig. 7-I A blown fuse or a failing power 1) Check the fuse (Fig. 7-J) and the chimney fan supply 2) Check the wiring Permanent light in ALARM diode Grid failure (Power failure) Press the RESET button for one second (Fig.
  • Page 8 : -20°C - +50°C Boiler thermostat input : 10-230V AC/DC Boiler output relay : max. 8A/230V Chimney fan output (AC3) : max. 3A/230V EXHAUSTO A/S EXHAUSTO NORGE A/S EXHAUSTO AB Odensevej 76 Enebakkveien 117 Verkstadgatan 13 DK-5550 Langeskov N-0680 Oslo S-542 22 Mariestad Tel.: +45 6566 1234...
