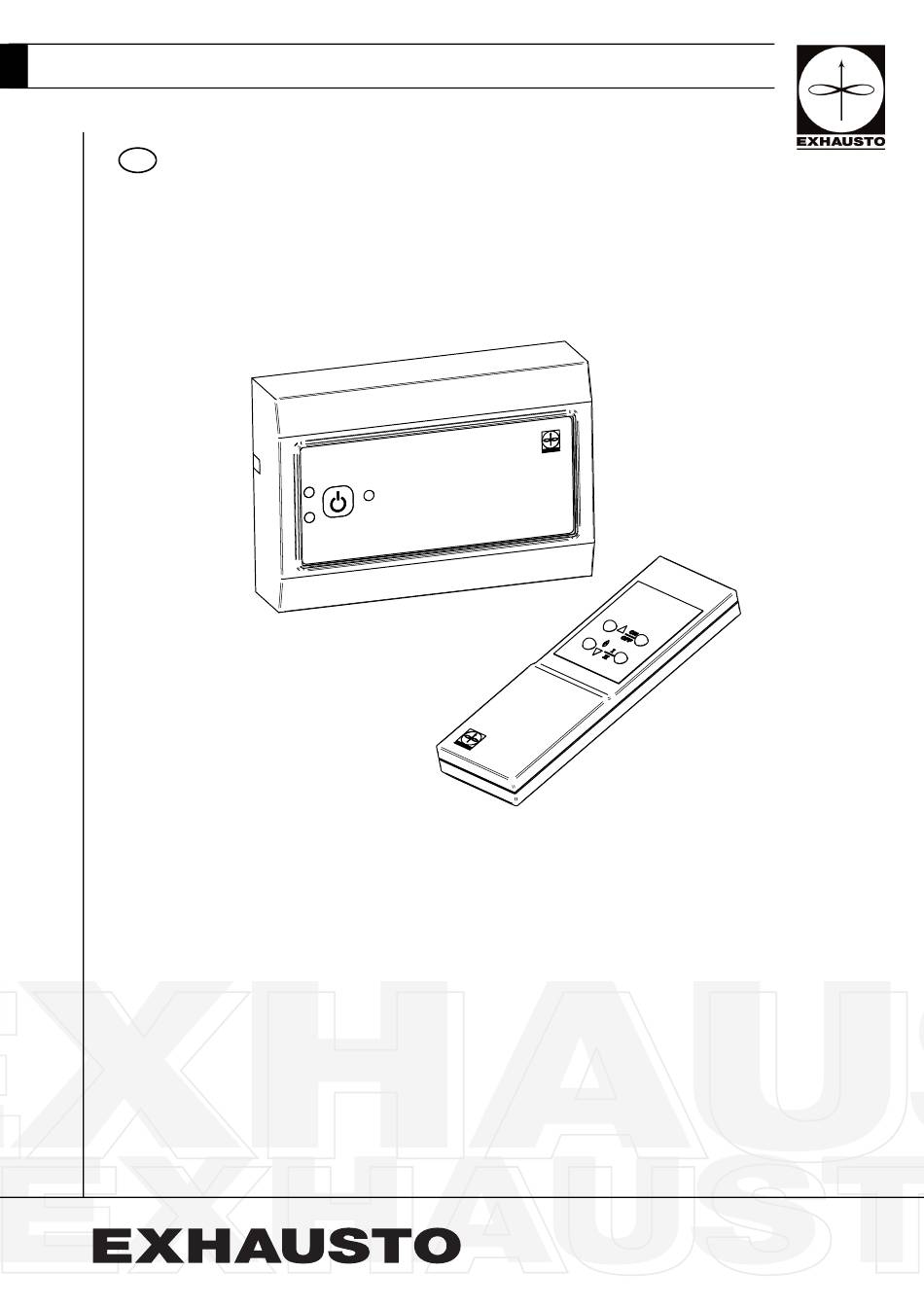

- Page 1 EXHAUSTO 3001736-2004-01-21.fm Installation & operating instructions EFC 25 EXHAUSTO A/S Odensevej 76 · DK-5550 Langeskov Tlf. +45 65 66 12 34 · Fax +45 65 66 11 10 exhausto@exhausto.dk · www.exhausto.com...
-
Page 2: Table Of Contents
How to use this The manual concerns EXHAUSTO fireplace control EFC 25 and a remote control. manual Safety for personnel and property as well as correct operation of the chimney fan are obtained by following the directions of this manual. -
Page 3: Efc 25 Control System For Exhausto Chimney Fans
By using the remote control (Fig. 2) it is possible to switch between high and low fire. When EFC 25 is turned off, the chimney fan stops. It is possible to pre-set a run-on time period of 3 minutes, (Fig. 1-I). -
Page 4: Description
EXHAUSTO 3001736-2004-01-21.fm 4/12 1.2 Description EFC 25 control Fig. 1 Pos. Description Pos. Description Alarm LED Potentiometer for adjusting the fan speed Operating LED Socket for external IR-receiver ON/OFF button Product ID Fuses T3,15A 230V(spare fuse Terminals for Step 2... -
Page 5: Installation Of Control Panel And External Ir-Sensor
The front cover is mounted with a connection ribbon cable in the right side, which results in a restricted opening of this side. The assembling part of the IR-sensor, the black cable, may not be bend. The control box covers a standard single back box.(Not EXHAUSTO supply) Fig. 5 Fig. 4 2.2 Power supply... -
Page 6: Standard Installation
Connect Step 2 signal (if any) to terminals 14-15 (voltage free contact) • Connect the power supply to the terminals marked ”Power”. Diagram Fig. 6 Application Chimney fan w/PDS Isolation switch Power supply EFC 25 Fused switch Fireplace control Fig. 7... -
Page 7: Installation With External Start
Connect Step 2 signal (if any) to terminals 14-15 (voltage free contact) • Connect the power supply to the terminals marked ”Power”. Diagram Fig. 8 Application Chimney fan w/PDS Isolation switch Power supply EFC 25 External ON/OFF switch Fused switch Fireplace control Fig. 9... -
Page 8: Service Mode
EXHAUSTO 3001736-2004-01-21.fm 8/12 Commissioning Commissioning Commissioning is carried out with the control panel open. Only touch the components in the box with electrically insulated tools. Notice Before commissioning all windows and doors must be closed; if other types of fans are installed they must be switched on 10 minutes in advance and run at full speed during commissioning. -
Page 9: Setting Of Potentiometer
Mount the front cover • Inform the end-user about the functions of the control and leave the instructions with the end-user. 3.5 Complete the commissioning card • Keep one copy with the appliance • Post one copy back to EXHAUSTO Ltd. (pre-paid) - Page 10 EXHAUSTO 3001736-2004-01-21.fm 10/12 Daily use Daily use Fig. 10 Operation of EFC • Press simultaneously the ON/OFF-button (fig. 10-B) and the Burner start for 1 from remote con- second(fig. 10-D) • The operating LED (fig 10-E) will flash GREEN until correct air flow has been trol confirmed.
- Page 11 EXHAUSTO 3001736-2004-01-21.fm 11/12 Fault finding Fault finding Start up Observation Type of fault Solution Operating Alarm LED Constant RED Power failure. 1.Press ON/OFF-button or external ON/OFF switch for resetting and start. Flashing RED Failure in failsafe supervision 1.Check the wiring.
- Page 12 CE Approval: The EFC control complies with the essential requirements of the Gas Appliances Directive (90/396/EEC). The compliance is based on examination to: EN298 (1993), PIN: 0063BN1144 EXHAUSTO A/S EXHAUSTO NORGE A/S EXHAUSTO AB Odensevej 76 Lilleakerveien 4 Verkstadsgatan 13...
