Exhausto VEX200 series Basic Instructions

Exact control system
Hide thumbs Also See for VEX200 series:
Table of Contents

Advertisement

Quick Links

3003246-2014-05-21
EXact Control System
Basic instructions for the VEX200 series
OK
EXHAUSTO
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
OK
Esc
EXHAUSTO
Tel. +45 65 66 12 34
Fax +45 65 66 11 10
exhausto@exhausto.dk
www.exhausto.dk
EXact_VEX200
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEX200 series and is the answer not in the manual?

Questions and answers

Related Manuals for Exhausto VEX200 series

Summary of Contents for Exhausto VEX200 series

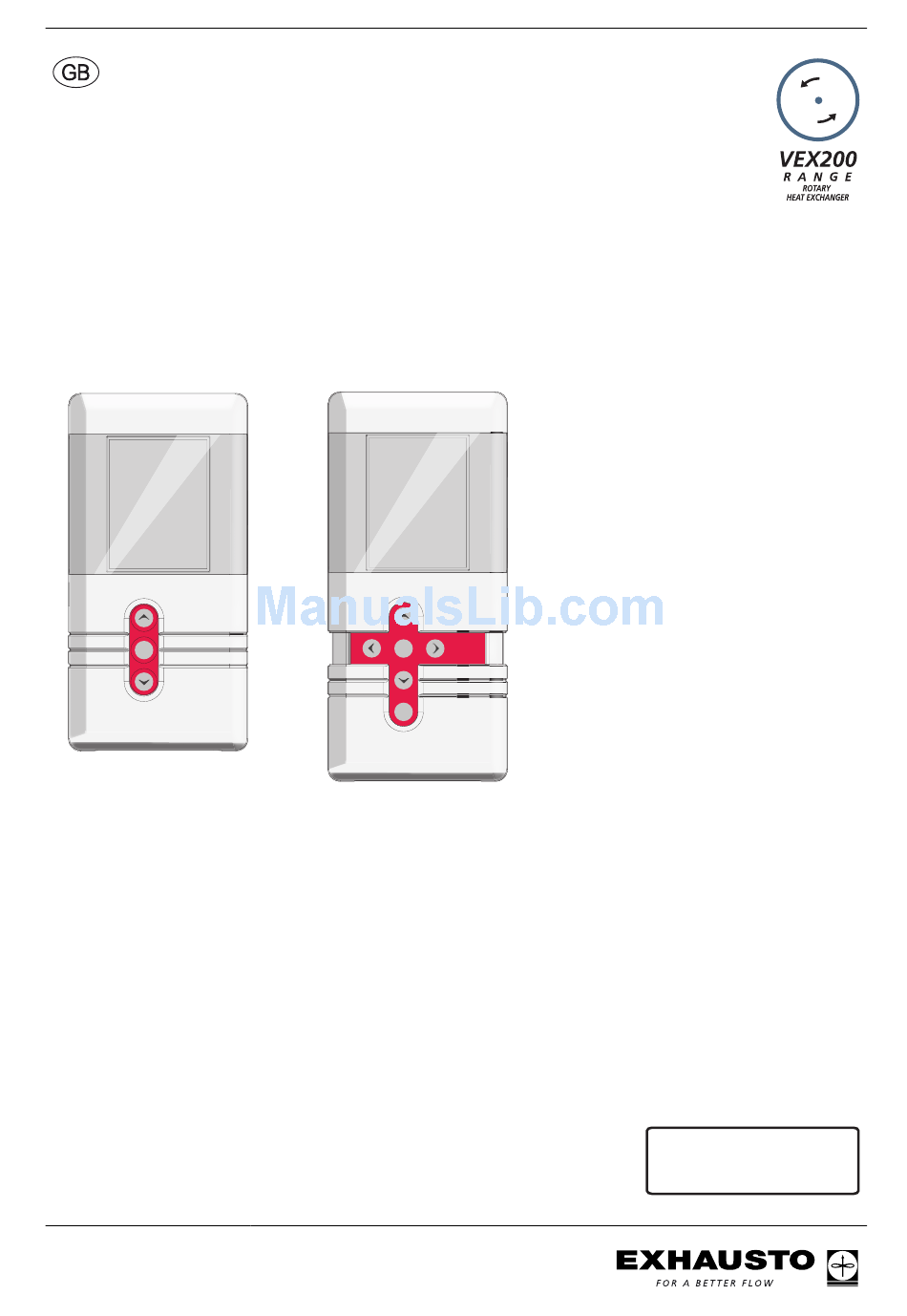

  • Page 1 EXact_VEX200 3003246-2014-05-21 EXact Control System Basic instructions for the VEX200 series EXHAUSTO EXHAUSTO Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk...
