Optical interface module

Advertisement

User's
Manual

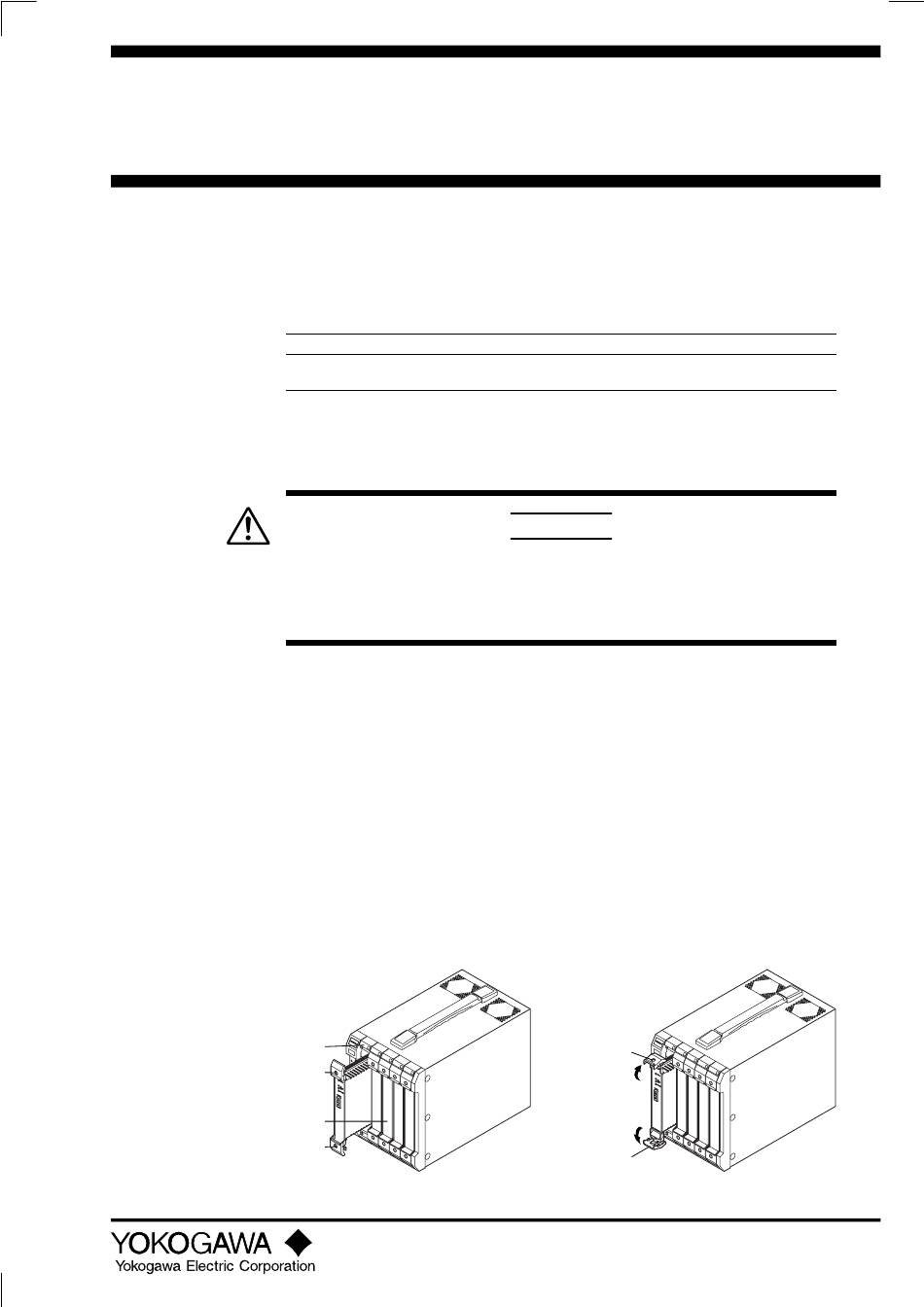

This User's Manual contains information about the installation procedures for the optical interface module WE7031/
WE7032 for the PC-based measurement instrument, WE7000. For other information about the functions and
specifications of the module, read the WE7000 User's Manual, IM707001-01E.

Checking the Product

Installation Procedure

Module attachment
screw
Cover plate
Module attachment
screw
Model 707031/707032
WE7031/WE7032
Optical Interface Module
Check that the model name given on the name plate matches that on the order.
MODEL
Model
Description
707031
WE7031 optical interface module for measuring station, 1 port
707032
WE7032 optical interface module for measuring station, 2 ports
NO.
When contacting the dealer from which you purchased the instrument, please quote the
instrument No.
• To avoid damaging the instrument when installing modules, make sure
to turn OFF the main power switch of the measuring station.
• Be careful not to get your fingers caught in the ejection lever while
inserting the module.
1.
Verify that the power supply is not connected to the measuring station or that the
main power switch is turned OFF. Make sure to turn off the main power switch on
the rear panel (see WE7000 User's Manual IM707001-01E).
2.
Remove the cover plate from slot 0. If another module is already installed in the slot,
remove that module.
3.
Insert the optical interface module into slot 0. Press firmly until it is securely
connected to the connector.
4.
Fasten the module at both the top and bottom locations with the M3 attachment
screws. Set the tightening torque to 0.6 to 0.7 N·m.
When removing the module, unfasten the screws and open the eject lever as shown in
the figure on the lower right.
Slot 0
Disk No. WE07
1st Edition: December 1998 (YK)
All Rights Reserved, Copyright © 1998 Yokogawa Electric Corporation
CAUTION
Eject lever
Eject lever
IM 707031-01E 1st Edition 1/2
