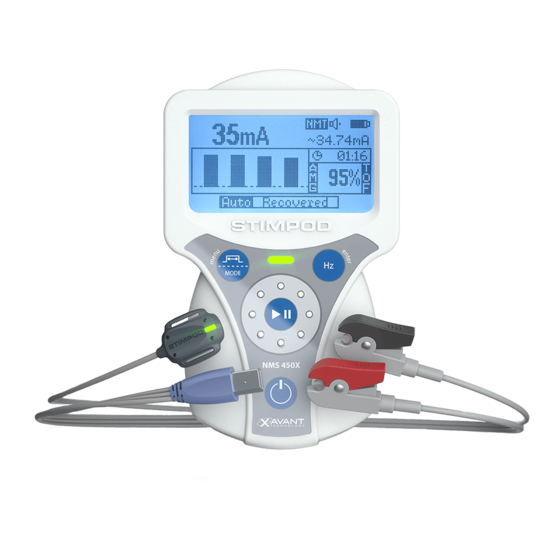

- Page 1 STIMPOD NMS 450X Intelli Cable Software: NMShow XM400-201A04 v1.0...
- Page 2 STIMPOD NMS 450X Intelli Cable Software: NMShow...
-
Page 3: Table Of Contents
Contents Introduction Zoom Controls Installation Guide Main Display Area Connecting to a PC Profile Graph Starting NMShow Pulse Data Graph Create a New User Stimulation Data Table User Login Stimulation Selector Activity Selection Toolbar Creating a New Session Adding Comments Live View Exporting to PDF Stimpod Status... -
Page 4: Introduction
If the application is run on a device which is not connected to the internet, it is the users’ responsibility to download the latest version of the software from the Xavant website and install it on the device by following the installation process as above. -
Page 5: Connecting To A Pc
STIMPOD NMS450X Intelli Cable Software: NMShow Connecting to a PC Step 01: Plug the NMS450X Intelli cable into the FireWire port of the Stimpod. Step 02: Plug the NMT Monitoring cable into the FireWire port of the Intelli cable. Step 03: Plug the USB cable from the Intelli cable into the PC. Fig. -
Page 6: Starting Nmshow
STIMPOD NMS450X Intelli Cable Software: NMShow Starting NMShow After the installation is complete the user can run the NMShow application from the desktop icon or the start menu item. The application will open and display the login screen. Fig. 2: Click on Create new to create a new user account (First time users). -
Page 7: User Login
STIMPOD NMS450X Intelli Cable Software: NMShow Fig. 3: Enter a username in the Username field. The username should be at least 4 characters long and may not be the same as another user’s username on the same device. When all the fields are filled in and the Create button is clicked, the application will check if the user already exists and inform the user if this is the case. -
Page 8: Activity Selection
STIMPOD NMS450X Intelli Cable Software: NMShow Fig. 4: Enter a username. This is the unique identifier linking the user to the sessions recorded. Enter a password. Click the Login button. If the correct username and password combination has been entered, the user will be logged in and the Activity Selection screen will be displayed;... -
Page 9: Creating A New Session
STIMPOD NMS450X Intelli Cable Software: NMShow Creating a New Session To view data live from the Stimpod, an NMS450X has to be connected to the host device via the NMS450X Intelli cable. Ensure that the NMT Monitoring cable is inserted. Click on Live from the Activity selection screen to initiate a new session. Several fields are available which will be attached to the session;... -
Page 10: Live View
STIMPOD NMS450X Intelli Cable Software: NMShow Device selection – This allows the user to select the NMS450X device to be linked from the list of devices connected to the PC. Refresh button – Click this to refresh the list of devices connected to the PC. File name –... - Page 11 STIMPOD NMS450X Intelli Cable Software: NMShow Fig. 7: Closed Circuit...
-
Page 12: Stimpod Status
STIMPOD NMS450X Intelli Cable Software: NMShow Stimpod Status – Indicates the battery level and whether a closed circuit has been detected. Tab controls – Change the view to display either the session profile, single stimulation or stimulation data. Stimulation details – Display details for the selected stimulation sequence. Zoom controls –... -
Page 13: Tab Controls
STIMPOD NMS450X Intelli Cable Software: NMShow Tab Controls These controls change the contents of the main display area. Clicking the Profile tab control will display a graph to visualize the results of all the stimulations for the current session, showing the depth of the block in different zones. This presents the results of the session in a single view, allowing for an overview of the full procedure. -
Page 14: Main Display Area
STIMPOD NMS450X Intelli Cable Software: NMShow Main Display Area Depending on the selection made using the tab controls, the content of the main display area is changed to either the profile graph, the pulse data graph or the stimulation data table. Profile Graph The profile graph displays all stimulation results of the current session, indicating the result, the depth-of-block zone and the relative time from the start of the session. - Page 15 STIMPOD NMS450X Intelli Cable Software: NMShow Fig. 7.3: Depth-of-block zone explanations in terms of the mode and result. Depth-of-block zone descriptions. The depth-of-block zone for the latest stimulation. The result of a single stimulation, in this case TOF. A depth-of-block zone. Commented stimulation sequences.
-
Page 16: Pulse Data Graph
STIMPOD NMS450X Intelli Cable Software: NMShow Pulse Data Graph The pulse data graph displays the results of the selected stimulation sequence. It will display bars indicating the magnitude of the accelerometer response in a similar way as on the Stimpod. Fig. -
Page 17: Stimulation Selector
STIMPOD NMS450X Intelli Cable Software: NMShow Stimulation Selector The selected stimulation can be changed by either using the slider below the main display area, scrolling the mouse wheel on one of the graphs or by using the data table as mentioned above. Fig. -
Page 18: Adding Comments
STIMPOD NMS450X Intelli Cable Software: NMShow Adding Comments One or more comments may be added to each stimulation. Comments will be indicated on the profile graph as an empty circle. Hovering the mouse pointer over these empty circles will display the comment text. Fig. - Page 19 STIMPOD NMS450X Intelli Cable Software: NMShow Standard comments can be added, edited or deleted using the Edit Standard Comments screen, which is opened from the Add Comment screen. Simply enter text into the text area and click Save standard comment to add a new standard comment.
-
Page 20: Exporting To Pdf
STIMPOD NMS450X Intelli Cable Software: NMShow Exporting to PDF A report can be generated from the session data, including the captured session information, statistics, the profile graph, comments and optionally all the stimulation data as on the data table. Click the Download button to save this report as a PDF file. -
Page 21: Clock
STIMPOD NMS450X Intelli Cable Software: NMShow Clock The clock can be used as either a real time clock, a stopwatch or as a timer indicating the time since the start of the session. Fig. 13: Select the clock. The current local time. Select the stopwatch. -
Page 22: Review A Session
STIMPOD NMS450X Intelli Cable Software: NMShow Review a Session You can view any of your previous sessions by using the archive functionality from the Activity selection screen. Clicking on Archive from the Activity selection screen will open the Session select view as shown below. Fig. -
Page 23: Archive View
STIMPOD NMS450X Intelli Cable Software: NMShow Back button – Click the Back button to return to the Activity selection screen. Next button – Click the Next button to open the selected session in the Archive view. Archive View The Archive View displays the graphs and data of any previous session. The functionality of this screen is the same as the Live view except for the following: The device status is not shown, since the device might not be connected and is not relevant to the archived session. - Page 24 STIMPOD NMS450X Intelli Cable Software: NMShow List of Figures Fig. 1: Connecting Stimpod to a PC Fig. 2: Log In Window Fig. 3: Creating New User Window Fig. 4: Log In Window (cont.) Fig. 5: Activity Selection Window Fig. 6: Creating a New Session Window Fig.
- Page 25 STIMPOD NMS450X Intelli Cable Software: NMShow Notes...
- Page 26 STIMPOD NMS 450X Intelli Cable Software: NMShow...
