Apostila de Treinamento

Apostila de Entrenamiento

Training Book

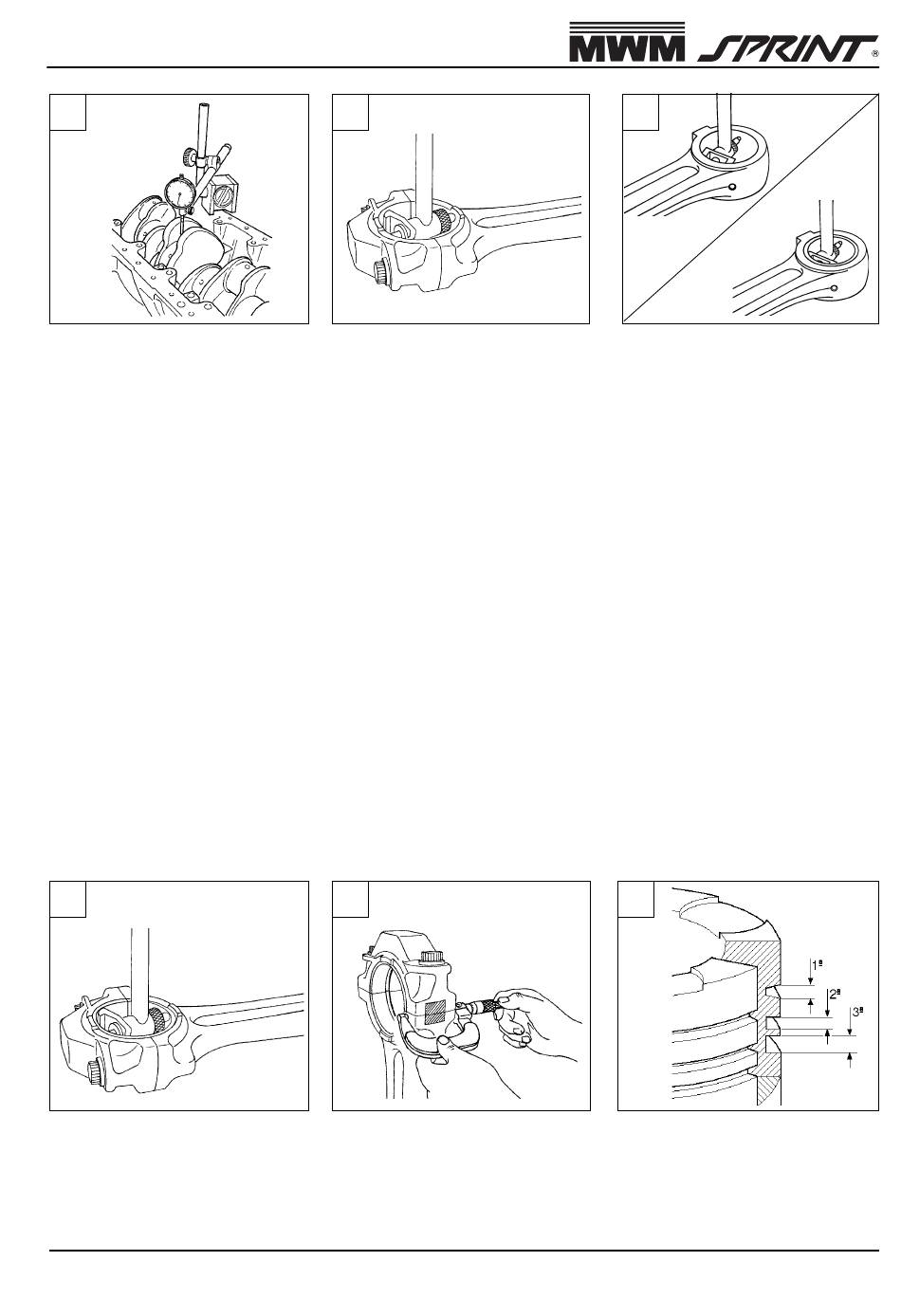

Bronzinas de biela

Casquillos de biela

Connecting rod bearings

Diâmetro interno (16)

Diámetro interno (16)

Inner diameter

Standard ....................................................................................................................... 55,030 - 55,088 mm

Reparo 1 / Reparo 1 / Undersize 1 .................................................................................. 54,780 - 54,38 mm

Reparo 2 / Reparo 2 / Undersize 2 ................................................................................ 54,530 - 54,588 mm

Reparo 3 / Reparo 3 / Undersize 3 ................................................................................ 54,280 - 54,338 mm

Largura (17)

Anchura (17)

Width (17) ................................................................................................................................... 27,75 - 28,00 mm

Pré-tensão de montagem

Pretensado de montage

Pre-tension ................................................................................................................................. 0,025 - 0,065 mm

Folga lateral no moente (12)

Huelgo lateral en el botón (12)

Side clearance on crankpin (12) ...................................................................................................... 0,30 - 0,50 mm

9.407.0.006.0260
