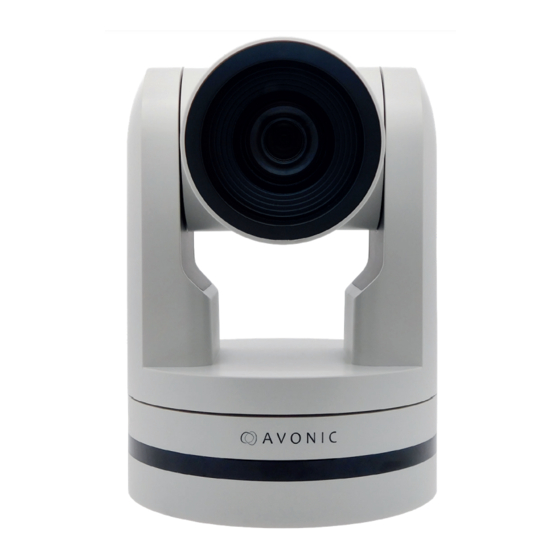

Avonic AV-CM40-IP User Manual

Ptz camera 20x zoom
Hide thumbs Also See for AV-CM40-IP:
Table of Contents

Advertisement

Quick Links

Download this manual
Avonic PTZ Camera 20x Zoom
AV-CM40-IP

User Manual

www.avonic.eu
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-CM40-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic AV-CM40-IP

Summary of Contents for Avonic AV-CM40-IP

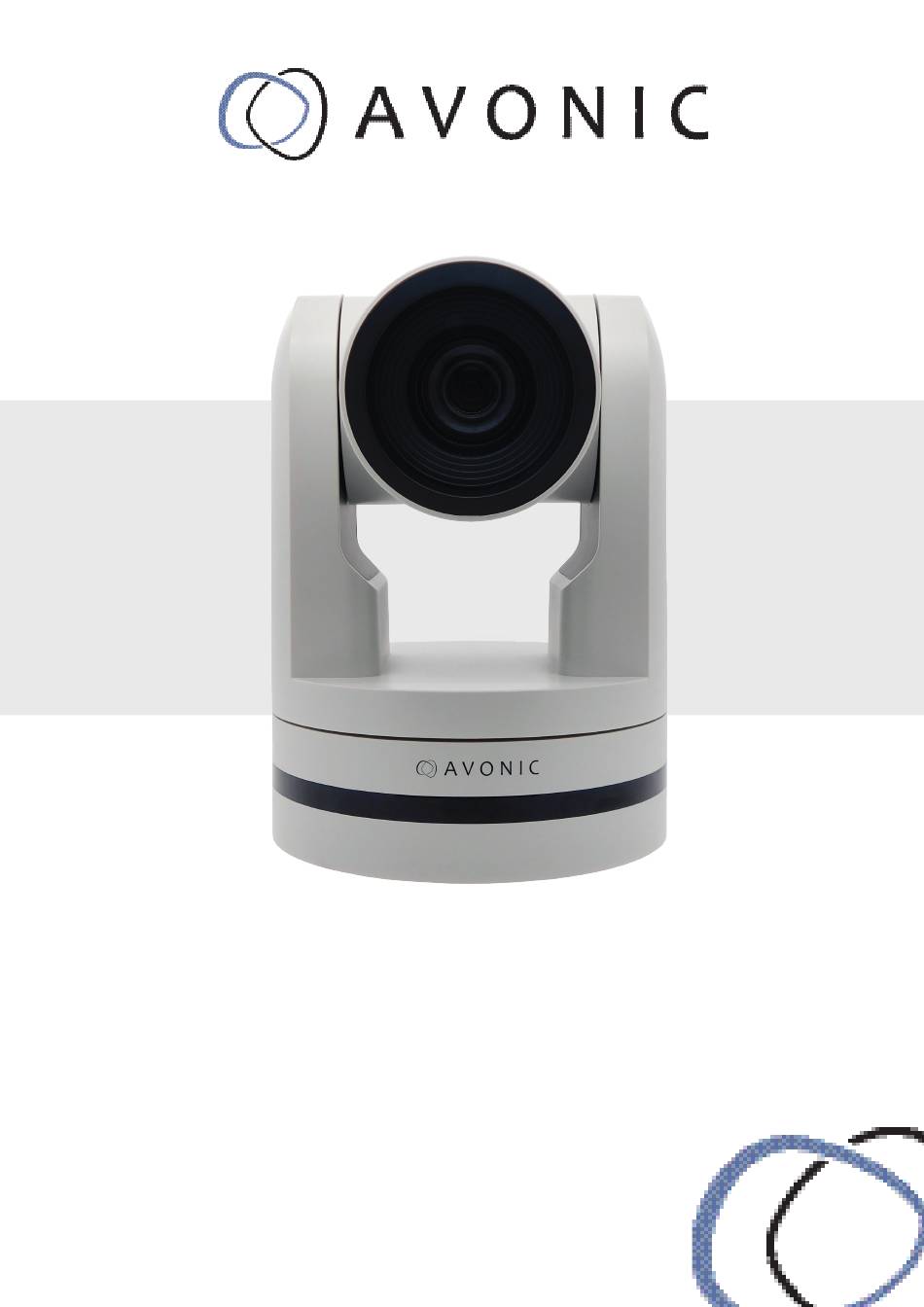

  • Page 1: User Manual

    Avonic PTZ Camera 20x Zoom AV-CM40-IP User Manual www.avonic.eu Version 1.0...

  • Page 2: Table Of Contents

    Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . www.avonic.eu...
  • Page 3 VISCA over IP commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix B Dimensions ......................... 43 www.avonic.eu...

  • Page 4: Introduction

    For any questions or suggestions, contact your reseller or the local distributor of Avonic . Find the local distributor on the website of Avonic . For the most recent version of the manual or datasheet, look at the Avonic website: www . a vonic . e u Join Avonic facebook .

  • Page 5: Package Contents And Accessories

    Package contents and Accessories Contents Quantity Description Avonic SKU 1 pc PTZ Camera AV-CM40-IP 1 pc Power Supply 12V/A AV-CM40-PSU 1 pc Remote Control AV-CM40-RC 1 pc USB cable type A to type A AV-USB20-AA 1 pc RS232 9-pin male to 8-pin male AV-CM-RS232...

  • Page 6: Product Overview

    Product Overview The Avonic CM40-IP is a high-quality PTZ camera, with an HDMI, USB2 . 0 , 3G-SDI and ethernet output . The camera is designed for fixed installations and high quality video in low light conditions. The camera is equipped with high quality components like a Panasonic CMOS sensor and a glass lens with 20x optical zoom . Control the camera over RS232, RS485 or IP with any controller with VISCA or PELCO support .

  • Page 7: Installation

    3G-SDI video output SMTPE 424M compliant HDMI Type A USB2 . 0 Type A, UVC video output RJ45 Ethernet connection with PoE 10 . DC12V power with locking screw (connect the supplied DC PSU) 11 . Power ON/OFF 12 . Kensington Lock www.avonic.eu...

  • Page 8: System Select Switch

    (Note: If the position preset 0 has been stored, the position preset 0 will be called after initializati- on) . From this point onwards the user can control the camera with RC, Serial or IP Communication . RS232 Interface www.avonic.eu...

  • Page 9: Rs232 Network Connection Diagram

    IP network connection diagram Connect an Avonic PoE camera to a LAN using a standard (PoE) switch, if the unit is simultaneously connected to both PoE and its own power supply, the power supply will take priority . If the power supply is disconnected when PoE is present, the camera will remain operational without interruption .

  • Page 10: Osd Menu

    OSD MENU The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller . In the following pages, the navigating is described for using the IR Remote Control . Root menu Language Setup Protocol Visca Address...
  • Page 11 2400 / 4800 / 9600 / 38400 / 115200 Select Item Change Value [Menu] Back 3. CAMERA CAMERA Exposure Color Image Focus Noise Reduction Style Soft / Default / Normal / Clarity / Bright Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 12 Auto / 3000K ~ 7000K 500K increments / Manual / OnePush RG Tuning -10 ~ 10 BG Tuning -10 ~ 10 0 ~ 255 0 ~ 255 Saturation 60% - 200% 0 ~ 14 AWB Sensitivity Low / Middle / High Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 13 NR-3D 1 ~ 8 / OFF Dynamic Hot Pixel 1 ~ 5 / OFF Select Item Change Value [Menu] Back 3.6 STYLE STYLE Style Default / Normal / Clarity / Bright / Soft Select Item Change Value [Menu] Back www.avonic.eu...
  • Page 14 720p59 . 9 4/ 720p29 . 9 7 Select Item Change Value [Menu] Back 6. VERSION VERSION MCU Version date Camera Version date AF Version date [Menu] Back 7. RESTORE DEFAULT RESTORE DEFAULT Restore default? NO / YES Select Item Change Value [Menu] Back [Home] OK www.avonic.eu...

  • Page 15: Operation

    OPERATION Remote controller Power Camera select Number Keys Focus + - Auto/Manual Focus Zoom + - Set & Clear Preset PTZ keys (up/down/left/right) Home BLC (Back Light Control) ON/OFF Menu Function Keys (F1/F2/F3/F4) Blank buttons www.avonic.eu...
  • Page 16 “Set Preset” . You can call the preset by pressing the number 0-9 on the remote control . Set Preset: [SET PRESET]+[<number>] Call Preset: [<number>] Clear Preset: [CLEAR PRESET]+[<number>] If the position preset 0 has been stored, this position will be called after initialization . www.avonic.eu...

  • Page 17: Other Key Combinations

    : Switch the video format to 1080p25* [#]+[#]+[8] : Switch the video format to 720p30* [#]+[#]+[9] : Switch the video format to 720p25* *NOTE: THE CAMERA RETURNS TO THE VIDEO OUTPUT SETTING OF THE ROTARY DIAL AFTER A REBOOT www.avonic.eu...

  • Page 18: Serial Communication Control

    By default the ip address of the camera is 192 . 1 68 . 5 . 1 63 with username and password admin/ admin . Avonic IP cameras can be controlled by any device using the Visca over ip protocol (see command list see Appendix A) .

  • Page 19: Webgui

    Click on the camera icon below the screen to switch preview between main stream and sub stream . Note that preview of the output only works when the main- or sub-stream is set to H264 (see page 22) . www.avonic.eu...

  • Page 20: Audio

    Select encoding type mp3, AAC or G . 7 11A Select sample rate: 16000, 32000, 44100, 48000 Sample bits is always 16 Bitrate Kbps : 32, 48 . 64, 96, 128 Channel: Mono or Stereo Input volume: 1 - 10 www.avonic.eu...

  • Page 21: Video

    I Frame Interval: 1-300 1-150 I Frame min . QP: 10-51 10-51 Stream name: live/av0 live/av1 Click on ‘Save’ to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully . www.avonic.eu...

  • Page 22: Streaming Video

    . 1 . 2 . 3 :4000 rtp://224 . 1 . 2 . 3 :4002 Click on ‘Save’ to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully . www.avonic.eu...

  • Page 23: Camera Settings

    Click on ‘Save’ to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully Note that only a picture will be shown with the main video stream set to H264 . www.avonic.eu...

  • Page 24: Osd

    Scale size automatically to resolution for both main- and substream, check or uncheck box, if checked the ca- mera name and time overlay will always scale with the image, keeping the proportions intact . Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully www.avonic.eu...

  • Page 25: Output Format

    . The resolution of the USB output is determined by the computer connected to it . Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully www.avonic.eu...

  • Page 26: Network

    . Make sure these settings don’t interfere with other uses and services on the same network . Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully www.avonic.eu...

  • Page 27: Ethernet

    The MAC Address can be found on the last visible line . Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully and that a reboot is needed for the changes to take effect . 98:14:D2:... www.avonic.eu...

  • Page 28: System

    Save to apply settings, a small dialogue screen appears in the bottom right of the window telling the settings are saved successfully . Time Manually set time and date or synchronize time and date via a computer or an external server on the LAN or WAN . www.avonic.eu...

  • Page 29: User

    User Define different users with levels of permission and different username passwords combinations. Update By default this screen shows a readout of the current firmware versions. Update file provides a firmware upgra- de functionality via this screen . When the camera is done uploading and processing the update it will reboot . Make sure to refresh the screen and log in again after the reboot . www.avonic.eu...

  • Page 30: Default

    Click on the button to perform a factory default . The camera will be ready for use again after the boot cycle . Reboot Click on the button to activate a reboot, the camera will be ready for use after it has restarted . Log in again after the reboot . www.avonic.eu...

  • Page 31: Mjpeg Snapshot

    MJPEG snapshot The Avonic CM40-ip is equipped with a MJPEG snapshot feature for example to implement into third party soft- ware . To access the MJPEG snapshot feature use the following format: http://ip-address/snapshot.jpg (up to firmware 2.4.5.) http://IP/img/capjpg/snapshot.jpg (starting from firmware 2.4.6) Every time the page is refreshed the picture will be updated .

  • Page 32: Maintenance

    Turn the camera off and on again and check if the problem persists . • Restore to Factory Default Power Issues • No self-test (applies only to PTZ cameras) and no power LED - Check the net power - Check the power supply www.avonic.eu...

  • Page 33: Image

    - Check VISCA / PELCO address settings on both camera and controller WebGUI • Cannot enter WebGUI - Check network cable - Check if PC is in the same subnet as camera - Reset the factory default ip settings by pressing [*] [#] [Manual] • Firmware update failed - Check firmware file integrity, download it again. www.avonic.eu...

  • Page 34: Visca Command List

    VISCA over IP commands The Avonic IP camera is implemented with a TCP server . The TCP port number is 1259 by default and can be altered in the WebGUI . Once the connection between client and server is set up, the client will be able to send PTZ commands to the server .
  • Page 35 Returned when a com- table (y: Execution com- mand cannot be exe- mand Socket No . cuted due to current Inquiry command: 0) conditions . For exam- ple, when commands controlling the focus manually are received during auto focus . www.avonic.eu...
  • Page 36 CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain www.avonic.eu...
  • Page 37 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position CAM_BackLight 8x 01 04 33 02 FF Back Light Compen- sation On/Off 8x 01 04 33 03 FF www.avonic.eu...
  • Page 38 8x 01 04 66 03 FF CAM_ColorGain Diret 8x 01 04 49 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) SYS_Menu 8x 01 06 06 03 FF Turns on/off the menu screen 8x 01 06 06 02 FF www.avonic.eu...
  • Page 39 Flip-V 8x 01 04 A4 02 FF Flip-HV 8x 01 04 A4 03 FF CAM_SettingSave Save 8x 01 04 A5 10 FF Save Current Setting CAM_Iridix Direct 8x 01 04 A7 00 00 0p 0q FF pq: Iridix Position www.avonic.eu...
  • Page 40 90 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 81 09 04 4B FF 90 50 00 00 0p 0q FF pq: Iris Position CAM_BrightPosInq 81 09 04 4D FF 90 50 00 00 0p 0q FF pq: Bright Position www.avonic.eu...
  • Page 41 90 50 03 FF CAM_PictureFlipInq 81 09 04 66 FF 90 50 02 FF 90 50 03 FF CAM_ColorGainInq 81 09 04 49 FF 90 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) www.avonic.eu...
  • Page 42 81 09 04 4F FF 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensitivi- 81 09 04 A9 FF 90 50 00 FF High tyInq 90 50 01 FF Normal 90 50 02 FF www.avonic.eu...

  • Page 43: Appendix B Dimensions

    APPENDIX B DIMENSIONS www.avonic.eu...
