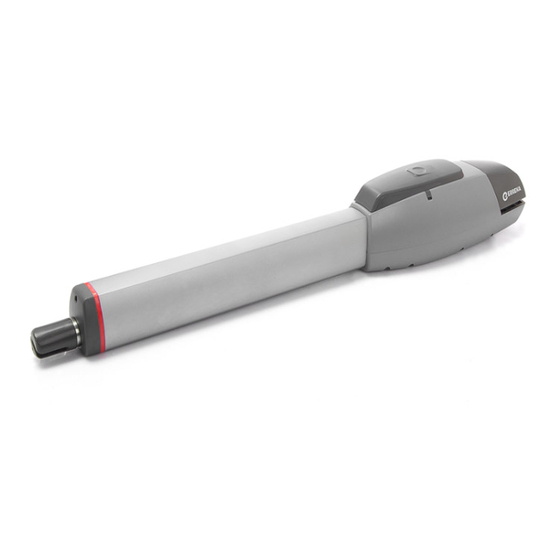

KAIROS
Quick Installation Guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The installation manual can be downloaded by going
WARNING
to the "Downloads" section of Erreka website:
http://www.erreka-automation.com
G
D

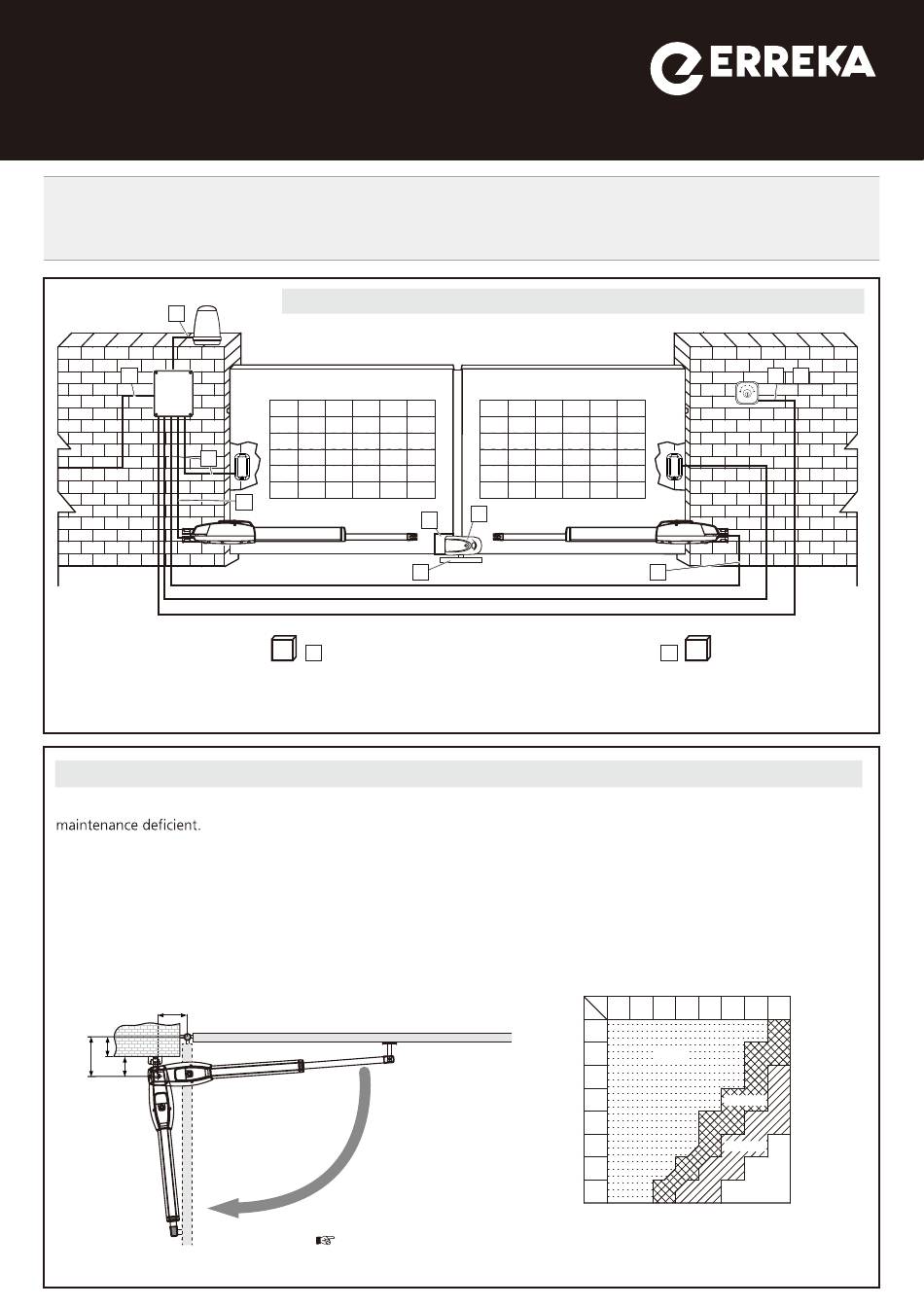

Electrical Wiring

A.B: 24v DC Motor(2x1mm²)
C: Photocell 2x0.5mm² (max 20m)
D: Control Box (3x1.5mm²)
E: Push Botton 2x0.5mm²(max 25m)
KAIROS It is not applicable to an insecure or lacking rigidity door nor solves the defects due to incorrect installation or
Check the following points before starting the installation:
1). Hinges are properly positioned and greased.
2). No obstacles in the moving area and no frictions between two gate leafs or with the ground while moving.
3). "C" value is 139mm.
4). "D" can be measured from the gate easily.
5). "A" = "C" + "D"
6). The value of "B" can be calculated from the value of "A" and the leaves opening angle.
Ex. If "A"=160mm with the leaves opening angle of 100 degrees, then the value of "B" is approximate 190mm.
B
D
A
C
1
C
A
TA
F: Key Selector(2x0.5 mm²)
G: Flash Light (2x0.5mm²)
H.I: Electric Lock (2x1mm²)

Assembly levels, inward opening

Please make sure B and A are similar or the same in value that the leaves can be
operated smoothly, also to reduce the burden of the motor.

Elements of the complete installation

Elementos de la instalación completa
H
TC
I
0
B
TA
TA: Open Stopper
TC: Close Stopper
B
110
120 130 140 150 160
170 180
A
110
>120°
120
130
110°~120°
140
150
100°~110°
160
170
90°~100°
180
Open Interior
MSB-029/02
E
F
