UpDown Desk ECS+ Quick Start Manual

Handset Control Unit
NOTICE You must read the user manual carefully before installing or operating the control unit. If
chosen handset doesn't match this user manual, please see separate user manual for actual handset.
Over load protection!
If the total load on the equipment is too high, you will only be able to adjust for 2 seconds. The system
will then stop and you need to release the table from load before new adjustment is attempted. After
load release, press button again.
Over heat protection!
If heavy loaded is driven continuously for a long period of time the motor might get overheated. The
software observes this and, if overheated, the system will shut down and you will have to wait about 9
minutes before being able to run again.
Anti Collision "AC" (optional)!
The ECS+ can be equipped with intelligent software for pinch protection. If a collision is detected system
will stop and back off about 1 inch.
IMPORTANT! Make sure to remove the blocking item causing the pinch before trying to operate the
table again.
Failure to do so may cause injury to user or equipment.
During low ration the currents to each connected motor is continuously measured and any variation of
current is evaluated about 50 times each second.

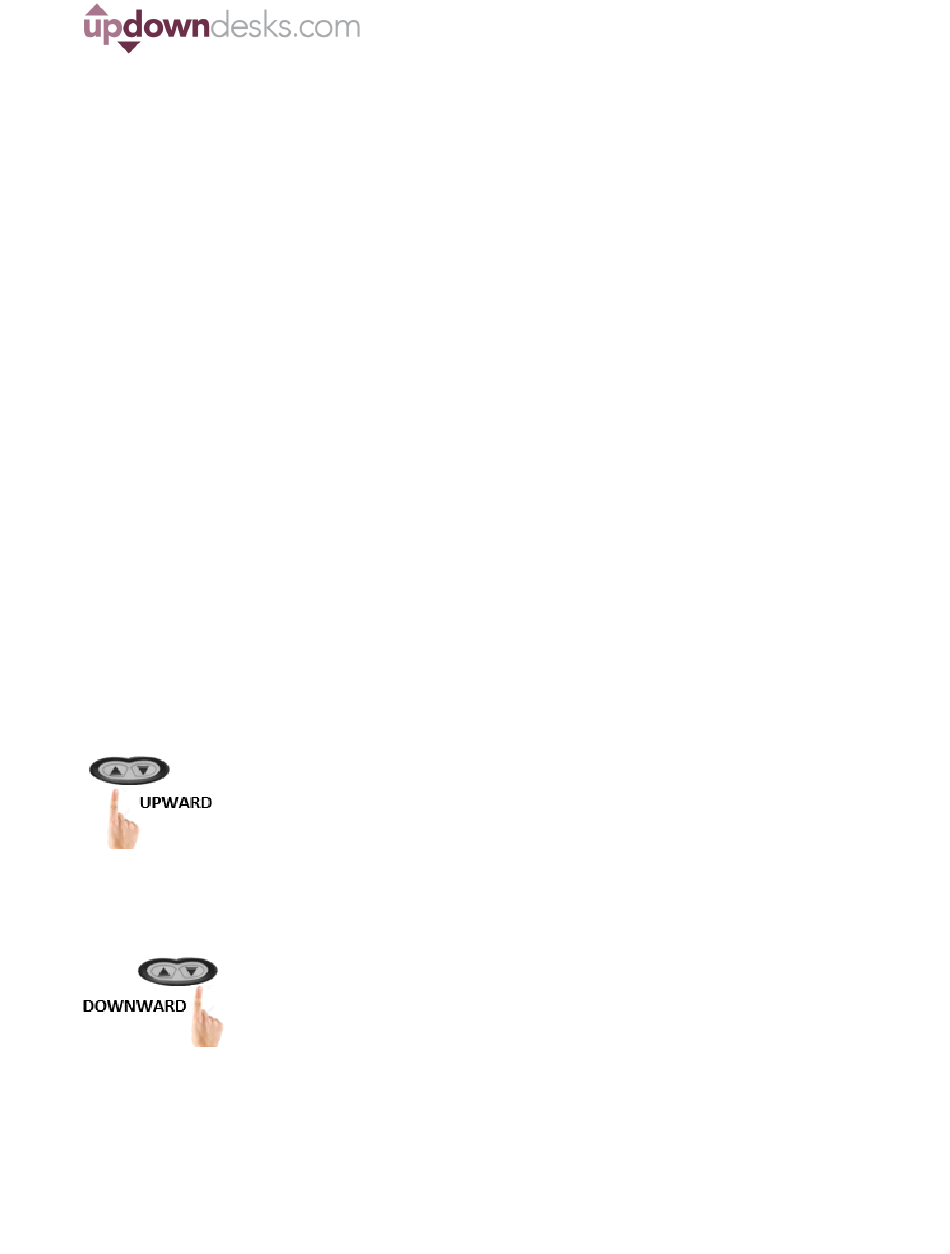

Upward desktop movement
This function enables you to adjust the desktop upwards.
To change its position, proceed as follows: Press the handset "up" button. Keep
pressing the button until the required desktop height is reached.
NOTICE - The desktop will continue moving upwards until you release the button or
the maximum height is reached.
Downward desktop movement
This function enables you to adjust the desktop downwards. To change its position,
proceed as follows: Press the handset "down" button. Keep pressing the button
until the required desktop height is reached.
NOTICE - The desktop will continue moving downwards until you release the
button or the minimum height is reached.
