Summary of Contents for Satel Proof-TR4

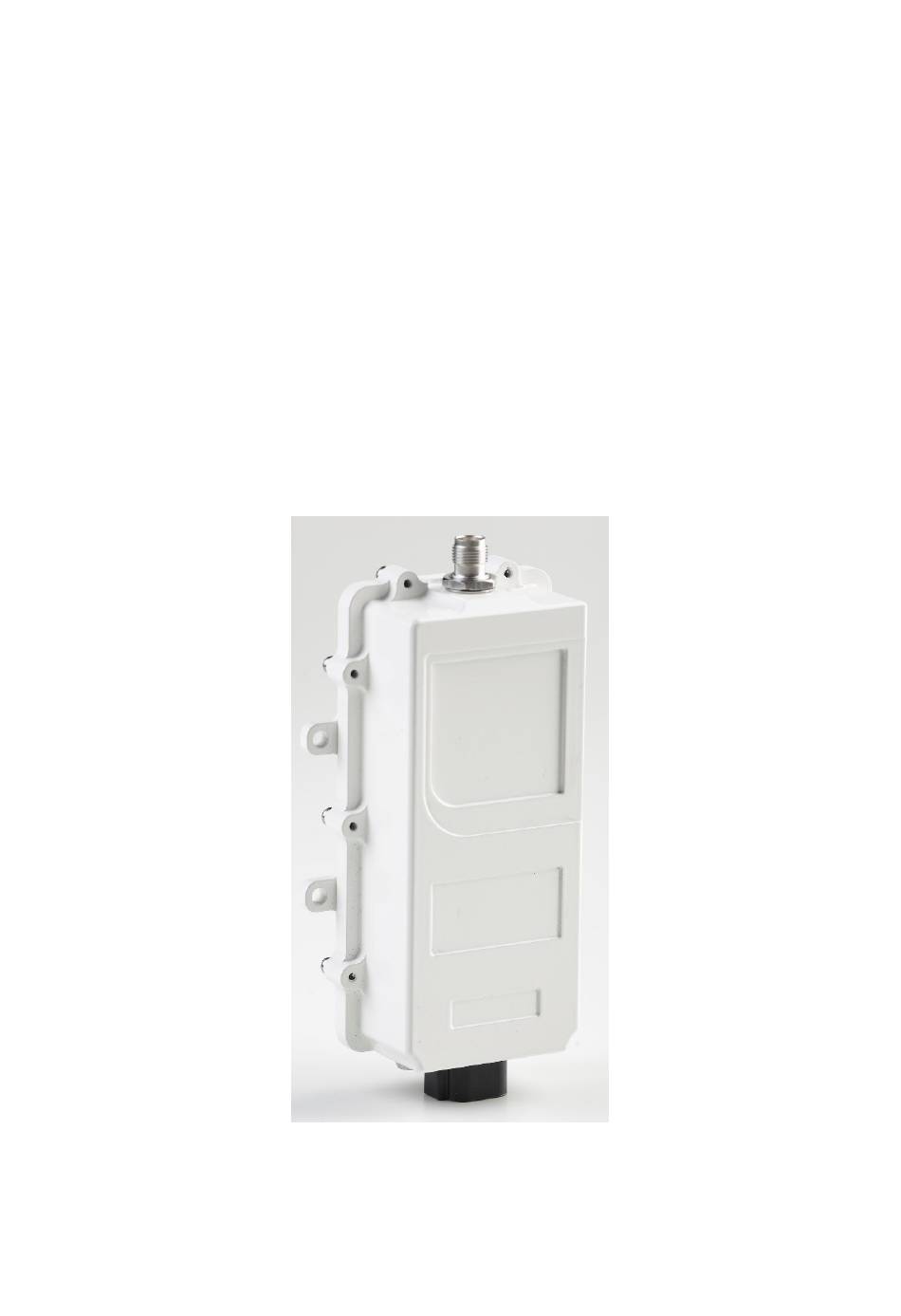

- Page 1 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 SATEL Proof-TR4/-TR9 Radio Modem User Guide...
-
Page 2: Table Of Contents
User Guide, Version 1.0 TABLE OF CONTENTS TABLE OF CONTENTS ..................2 IMPORTANT NOTICE ..................4 RESTRICTIONS ON USE – SATEL PROOF-TR4 ............ 5 RESTRICTIONS ON USE – SATEL PROOF-TR9 ............ 6 PRODUCT CONFORMITY ..................7 WARRANTY AND SAFETY INSTRUCTIONS ............8 GROUNDING .................... - Page 3 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 Transmitter ................... 24 Receiver ....................25 Priority RX/TX ..................25 Forward Error Correction (FEC) ............26 Error checking ..................26 TX delay....................26 Separate RX/TX-frequencies ..............26 Pacific Crest and TRIMTALK compatibility ..........27 8.8.1...
-
Page 4: Important Notice
User Guide, Version 1.0 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL Oy (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by... -
Page 5: Restrictions On Use - Satel Proof-Tr4
SATEL Proof-TR4 is allowed to be used in the following countries, either on license free channels or on channels where the operation requires a license. More detailed information is available at the local frequency management authority. -
Page 6: Restrictions On Use - Satel Proof-Tr9
SATEL Proof-TR9 is allowed to be used in the following countries. More detailed information is available at the local frequency management authority. -
Page 7: Product Conformity
User Guide, Version 1.0 PRODUCT CONFORMITY Hereby, SATEL Oy declares that radio modems are in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 2014/53/EU. Therefore the equipment is labelled with CE-... -
Page 8: Warranty And Safety Instructions
-The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. -
Page 9: Grounding
User Guide, Version 1.0 GROUNDING SATEL Proof-TR4 / -TR9 is equipped with a grounding terminal, as shown below. It is recommended to connect a ground wire from the grounding terminal to the earth ground and that all other interconnected devices share the same electrical ground potential. -
Page 10: Description Of The Product
-4Pro, SATEL Compact-Proof and EASy-Proof). SATEL Proof-TR4/-TR9 can be interconnected to a data terminal or similar devices by RS-232. SATEL Proof-TR4/-TR9 contains a 6 pin Deutsch DT connector for RS-232 and power supply, and TNC female connector for antenna. SATEL Proof-TR4/-TR9 is intended to be used inside or outside environment and fulfills IP69K ratings (high pressure hot water). -
Page 11: Satel Proof-Tr4/-Tr9 Technical Specifications
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 2 SATEL Proof-TR4/-TR9 TECHNICAL SPECIFICATIONS SATEL Proof-TR4 complies with the following international standards: o EN 300 113 o EN 300 489 (EMC) o IEC 60950 (safety) o FCC CFR47 part90 RECEIVER TRANSMITTER Note! Frequency Range 403 ... - Page 12 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 DATA MODEM Note Electrical Interface RS-232 Data speed of Serial Interface 1200 – 115200 bps 4FSK FEC OFF: 19200 bps (25 kHz) 9600 bps (12.5 kHz) 4FSK FEC ON: 14400 bps (25 kHz) 7200 bps (12.5 kHz) Data speed of Radio 8FSK FEC OFF: 28800 bps (25 kHz) 14400 bps (12.5 kHz)
- Page 13 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 SATEL Proof-TR9 complies with the following international standards: FCC Parts 15.209 and 15.247 of Title 47 IC RSS-247, ICC RSS-Gen AS/NZS 4268:2012, AS/NZS 4771:2000 RECEIVER TRANSMITTER Frequency Range 902-928 MHz Spreading Method Frequency Hopping...
-
Page 14: Configuration
The configuration of SATEL Proof–TR4/-TR9 radio modem can be modified by connecting the modem to the PC and using SATEL Configuration Manager (CM) or by using external SL commands. Programming is done using RS-232 port. The RS-232 serial port settings must match between SATEL Proof–TR4/-TR9 and terminal port. -
Page 15: Changing Parameters Using The Sl Commands
In case you need more information on the time delays related to the use of SL commands, please contact the manufacturer. SL commands are described in separate documentation. In order to get information of the latest and/or special SL commands please contact SATEL. -
Page 16: Modem Settings
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 4 MODEM SETTINGS 4.1 Default settings of SATEL Proof-TR4 The radio modem is delivered with the following default settings (unless otherwise specifically ordered): DEFAULT VALUES OF THE ADJUSTABLE SETTINGS ( the user can change these settings later on ) -
Page 17: Default Settings Of Satel Proof-Tr9
ON/OFF Add RSSI to Data ON/OFF 4.2 Default settings of SATEL Proof-TR9 The radio modem is delivered with the following default settings (unless otherwise specifically ordered): DEFAULT VALUES OF THE ADJUSTABLE SETTINGS (the user can change these settings later on) - Page 18 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 High Noise MCU Speed Remote LED Multipoint Parameters Number of Repeaters Master Packet Repeat Max Slave Retry Retry Odds DTR Connect Repeater Frequency Network ID Multimaster Sync Slave/Repeater Subnet ID “Disabled”...
-
Page 19: Antenna Connector
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 5 ANTENNA CONNECTOR All models have a single TNC female type antenna connector with impedance of 50 Ohm. The antenna should always be connected when the power is on. -
Page 20: Deutsch Connector
Note**) Reserved for future needs. Power supply SATEL Proof-TR4/-TR9 is available in one operating voltage range. The radio modem must be connected to a power supply with an adequate current output. A proper fuse should be connected in between the radio modem and the power supply: Operating voltage range +6 …... -
Page 21: Serial Ports
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 7 SERIAL PORTS The radio modem is referred to as DCE (Data Communication Equipment) whereas the device connected to it, typically a PLC or a PC, is referred to as DTE (Data Terminal Equipment). -
Page 22: Data Buffering
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 7.2 Data buffering Whenever the radio modem is in Data Transfer Mode it monitors both the radio channel and the serial interface. When the terminal device starts data transmission the radio modem switches to transmission mode. -
Page 23: Rf Interface - Satel Proof-Tr4
All modem types have a single TNC female type antenna connector with impedance of 50 Ohm. SATEL Proof-TR4 (403 – 473 MHz) offers the radio settings for user to select: Channel spacing: 25 kHz or 12.5 kHz Frequency can be any 6250 Hz divisible frequency between 403…473 MHz in case the Channel Spacing is 25 kHz or 12.5 kHz... -
Page 24: Transmitter
The setting and/or using of non-approved power levels may lead to prosecution. SATEL and its distributors are not responsible for any illegal use of its radio equipment, and are not responsible in any way of any claims or penalties arising from the operation of its radio equipment in ways contradictory to local regulations and/or requirements and/or laws. -
Page 25: Receiver
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 8.2 Receiver The sensitivity of the receiver depends on the channel spacing of the radio modem (=data speed of the radio interface) and on the mode of the FEC (error correction). Receiver sensitivity Frequency range... -
Page 26: Forward Error Correction (Fec)
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 8.4 Forward Error Correction (FEC) FEC improves the reliability of data transfer over the radio by adding additional correction information to the radio messages. Based on that information, the receiving radio modem will be able to correct erroneous bits provided the ratio of erroneous and correct bits is reasonable. -
Page 27: Pacific Crest And Trimtalk Compatibility
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 8.8 Pacific Crest and TRIMTALK compatibility SATEL Proof-TR4/-TR9 radio modem provides the following radio compatibility options: SATELLINE-3AS Original SATELLINE-3AS data transfer mode (Default) PacCrest-4FSK Transparent mode/FEC ON/Scrambling ON (Option 1) PacCrest-GMSK Transparent mode/FEC ON/Scrambling ON (Option 2) ... - Page 28 Remote Address of a Pacific Crest transmitter (or if the message has the broadcast address 255). SATELLINE modems must have the following key settings: FEC OFF (because the FEC here means SATEL 3AS FEC, not Pacific Crest/TRIMTALK FEC ) Error check OFF ...
-
Page 29: Repeater Function
Repeater OFF/ON in the Additional setup-> Repeater programming menu. Note 1. If error correction is ON (FEC ON) and TRIMTALK mode is activated by using ”SL@S=3” command, the firmware automatically switches SATEL FEC OFF temporarily, and turns it back at the mode return. -
Page 30: Transmission Delays
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 In case only broadcast messages are used (like in RTK applications) there is usually no need for TX Delay, except if the transfer delays identical to Pacific Crest modems are preferred – in such cases an appropriate value of TX Delay is 34 ms. - Page 31 SATEL Proof-TR4/-TR9 User Guide, Version 1.0 Pacific Crest GMSK mode on 12.5 kHz channel - Transfer delays 1 byte 10 bytes 100 bytes 500 bytes 9600 93 ms 101 ms 445 ms 2011 ms 19200 91 ms 97 ms 393 ms...
-
Page 32: Mechanical Dimensions
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 9 MECHANICAL DIMENSIONS... -
Page 33: Installation
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 10 INSTALLATION SATEL Proof–TR4/-TR9 radio can be installed to any position from its 4 screw attachment points with maximum of M5 bolts/screws. SATEL Proof–TR4/-TR9 is waterproof fulfilling IP67 and IP69K specifications. Note that the antenna must be installed properly and Deutsch DT connector cable counterpart must have a gasket installed to properly seal the connection in order to reach the IP ratings. -
Page 34: Accessories
SATEL Proof-TR4/-TR9 User Guide, Version 1.0 11 ACCESSORIES SATEL provides a wide selection of accessories and solutions for its radio modems. Antennas Serial data/Power cables and adapters RF-cables Filters and lightning protectors Power supplies Enclosures Please visit www.satel.com...
