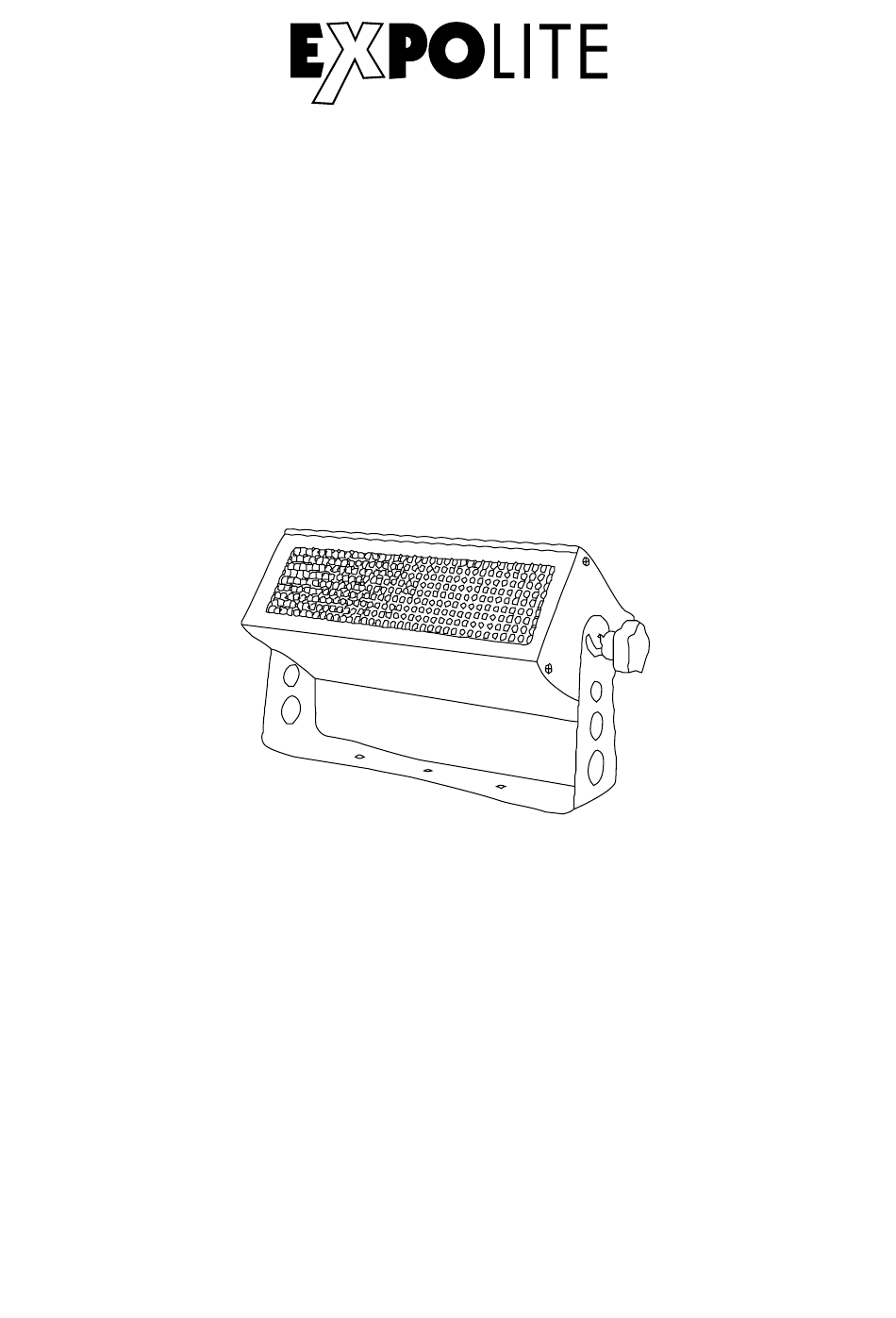

Tour-Flash mini
led52005
PRE-MANUAL
Änderungen sind ohne Ankündigung möglich.
RAWMNLeng V201705-001
Changes are possible without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tour-Flash mini and is the answer not in the manual?

Questions and answers

Related Manuals for Expolite Tour-Flash mini

Summary of Contents for Expolite Tour-Flash mini

  • Page 1 Tour-Flash mini led52005 PRE-MANUAL Änderungen sind ohne Ankündigung möglich. RAWMNLeng V201705-001 Changes are possible without prior notice.

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. This device falls under protection-class I.

  • Page 3: Preparation For Use

    PREPARATION FOR USE UNPACKING Thank you for having chosen Intella LED lighting Unpack the device, inside the box you should find: The fixture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation.
  • Page 4 Storm400 specifications Light Source : 324pcs RGB/White 5050 LED, no ultraviolet radiation Output: 35000 for white version DMX mode: 1/3/4/6/7/16 Dimmer: 16Bit Dimmer Operating Mode: DMX Mode /Master-slave mode Power: AC110-240V 50/60Hz 300W Cooling: FAN Over Heat Protect: With temperature sensor to extend the lamp life Size: Compact size, 2.8kg Effects: 9 segments LED/ 3 segments for RGB version, can be controlled separately,...

  • Page 5: Operation

    OPERATION Display Menu Menu Sub-menu Address Set DMX Address 001-512 Mode 1 Auto Mode 1 Mode 2 Auto Mode 2 Mode 3 Auto Mode 3 Auto Mode 4 Auto Mode 4 Mode 5 Auto Mode 5 Mode6 Auto Mode 6 Speed 000-031 Auto Run Speed...

  • Page 6: Dmx Control Summary

    DMX Control Summary Intensity Flash intensity can be set from minimum (blackout) to maximum in all DMX modes except 1 channel mode (where it is always at maximum intensity). A special pixel mode enables the fixture to be used as a blinder, where the intensity of blinder colour can be set.
  • Page 7 0-255 Strobe rate(0-30HZ) No effect 6-42 Ramp up effect 43-85 Ramp down effect 86-128 Ramp up-down effect 129-171 Random effect 172-214 Lightning effect 215-255 Spike effect 6 Channel Mode Values Functions 0-255 Master Dimmer (0-100%) 0-255 Red/Segment1-3 Dimmer(0-100%) 0-255 Green/Segment4-6 Dimmer(0-100%) 0-255 Blue/Segment7-9 Dimmer(0-100%) 0-255...
  • Page 8 16 Channel Mode Values Functions 0-255 Master Dimmer (0-100%) 0-255 Red/Segment1-3 Dimmer(0-100%) 0-255 Green/Segment4-6 Dimmer(0-100%) 0-255 Blue/Segment7-9 Dimmer(0-100%) 0-255 Flash duration(0-full on) 0-255 Strobe rate(0-30HZ) No effect 6-42 Ramp up effect 43-85 Ramp down effect 86-128 Ramp up-down effect 129-171 Random effect 172-214 Lightning effect...
  • Page 9 Pixel Mode (White) 9 Channel Values Blinder intensity Blackout 6-255 Segment 1 Dimmer Blackout 6-255 Segment 2 Dimmer Blackout 6-255 Segment 3 Dimmer Blackout 6-255 Segment 4 Dimmer Blackout 6-255 Segment 5 Dimmer Blackout 6-255 Segment 6 Dimmer Blackout 6-255 Segment 7 Dimmer Blackout 6-255...
