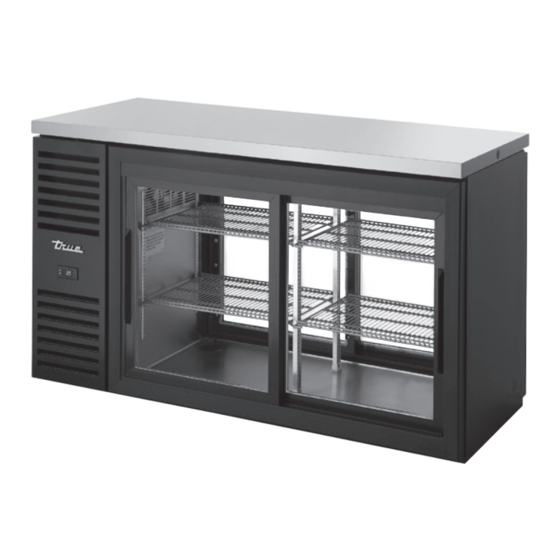

Summary of Contents for True TBR Series
- Page 2 Stainless Steel Exterior & Interior Reach-In Low Profile Slide Door MB/MC TSID Mega Top Single Duty Deli No Tank (Ice Merchandisers) TSL01 TRUE Standard Look, Version 01 TSSU ® Pass-Through Sandwich/Salad Unit Radius Front T -SERIES ® Upright Reach-In ®...
-
Page 4: Appliance Disposal
ENTRAPMENT – Cabinet warranties are void if OEM power cord is WARNING tampered with. TRUE will not warranty any units that are connected to an adapter or extension cord. PROPER DISPOSAL OF THE CABINET – Compressor warranties are void if the compressor WARNING Child entrapment and suffocation are not problems of the past. -
Page 5: Installation
TRUE equipment. The cost of a professional installation is money well spent. Before you start to install your TRUE unit, carefully inspect it for freight damage. If damage is discovered, immediately file a claim with the delivery freight carrier. -
Page 7: Installing Leveling Legs
The unit should be placed close enough to the electrical supply so that extension cords are never used. LEVELING Proper leveling of your TRUE cooler is critical to operating success (for non-mobile models). Effective condensate removal and door operation will be effected by leveling. -
Page 8: Sealing Cabinet To Floor
TRUE TBR | TDR SERIES truemfg.com INSTALLATION (CONT.) SEALING CABINET TO FLOOR – Allow 1" (25.4 mm) between STEP 1 – POSITION CABINET the wall and rear of the refrigerated bar equipment to assure proper ventilation. – Cabinet should be level, side to side STEP 2 –... -
Page 9: Connecting Electricity
• The refrigerator/freezer should always be plugged into a NORTH AMERICA USE ONLY! dedicated electrical circuit. TRUE uses these types of NEMA plugs. If you do not have the • This provides the best performance and prevents building proper outlet, have a licensed electrician verify and install the wiring circuits from being overloaded, which could cause correct power source. -
Page 10: Cabinet Setup
TRUE TBR | TDR SERIES truemfg.com CABINET SETUP STANDARD ACCESSORIES FOR PROPER SHELF CLIP INSTALLATION PLEASE SHELF INSTALLATION: READ THE FOLLOWING INSTRUCTIONS. Hook shelf clips onto shelf standards. – Install the top tab of the shelf clip into the proper hole. - Page 11 TRUE TBR | TDR SERIES truemfg.com CABINET SETUP (CONT.) TDR ACCESSORIES DRAFT TOWER INSTALL DRAFT ARM Place rubber washer over draft arm mounting holes in cabinet, put beer line connector down through hole. Next, secure draft arm with four screws (see images 1-6).
- Page 12 TRUE TBR | TDR SERIES truemfg.com CABINET SETUP (CONT.) Spill Tray Grate Spill Tray Tray Gasket Spill Tray Access Port DRAFT SPILL TRAY Place the tray gasket over the spill tray tube. Slide the spill tray tube into the spill tray access port.
- Page 13 TRUE TBR | TDR SERIES truemfg.com CABINET SETUP (CONT.) AIR DISTRIBUTOR MANIFOLD & DISTRIBUTOR COVER A two-way air distributor manifold is included to allow a single CO2 supply line to pressurize two kegs. The air distributor is located behind the distributor cover. To gain access, simply lift the cover off the manifold mounting bracket.
-
Page 14: Access Ports
TRUE TBR | TDR SERIES truemfg.com CABINET SETUP (CONT.) ACCESS PORTS: • Access ports provide optional locations to route external beer lines, CO2 lines,or overflow beer spill tray drain lines. • A drill may be used to carefully penetrate the access ports inner and outer sleeve. -
Page 15: Cabinet Operation
RECOMMENDATION difficulties. Should it ever become necessary to replace you run your TRUE unit empty for two to three days. This allows temperature control, be sure it is ordered from your you to be sure electrical wiring and installation are correct and no TRUE dealer or recommended service agent. - Page 16 TRUE TBR | TDR SERIES truemfg.com CABINET OPERATION (CONT.) GENERAL SEQUENCE OF OPERATION – REFRIGERATOR & FREEZERS CABINETS WHEN THE CABINET IS PLUGGED IN: • Interior lights will illuminate on glass door models (see light switch location). • An electronic control with digital display will illuminate (if installed).
- Page 17 TRUE TBR | TDR SERIES truemfg.com CABINET OPERATION (CONT.) DRAFT BEER STORAGE, HANDLING, PRESSURE & OPERATION Dispensing pressures differ according to: Draft beer should be treated as a food product. In most instances • The type of draft dispensing system draft beer is not pasteurized.
-
Page 18: Draft Beer Problems
TRUE TBR | TDR SERIES truemfg.com CABINET OPERATION (CONT.) DRAFT BEER PROBLEMS To minimize draft beer problems, always follow the recommended Beer in the glass appears CLOUDY BEER – DESCRIPTION: instructions for temperature and CO2 pressures from your beer hazy, not clear. -
Page 19: Changing Co2 Gas Cylinder
TRUE TBR | TDR SERIES truemfg.com CABINET OPERATION (CONT.) CHANGING CO2 GAS CYLINDER PRESSURE ADJUSTMENT ON CO2 REGULATOR follow these instructions when you replace a CO2 ALWAYS gas cylinder: INCREASING PRESSURE: Close cylinder at "A". Close regulator shut-off "C". Remove tap "D" from barrel. Pull pressure release ring Turn regulator key "B"... -
Page 20: Maintenance, Care & Cleaning
Cleaning is recommended whenever changing to a fresh keg. NOTE: USE CL E ANERS APPROV ED BY YOUR BEER SUPPLIER AND FOL LOW THEIR INSTRUCTIONS. IF YOU ARE USING THE BRUSH CL E ANING K IT PURCHA SED FROM TRUE FOL LOW THESE BLC SYSTEM SPANNER INSTRUCTIONS:... -
Page 21: Cleaning The Condenser Coil
TRUE TBR | TDR SERIES truemfg.com MAINTENANCE, CARE & CLEANING (CONT.) CLEANING THE CONDENSER COIL When using electrical appliances, basic safety precautions should be followed, including the following: WARNING: Do not clean appliance with a water jet or hose. CAUTION: Condenser coil fins are sharp. -
Page 22: Important Warranty Information
• If you cannot remove the dirt adequately, please contact your licensed refrigeration service provider THE CLEANING OF THE CONDENSER IS NOT COVERED BY THE WARRANTY! If you have any questions, please call TRUE Manufacturing at and ask for the Service 636-240-2400 800-325-6152 Department. -
Page 23: Stainless Steel Equipment Care & Cleaning
TRUE TBR | TDR SERIES truemfg.com MAINTENANCE, CARE & CLEANING (CONT.) STAINLESS STEEL EQUIPMENT 8 STEPS THAT CAN HELP PREVENT RUST CARE & CLEANING ON STAINLESS STEEL Do not use any steel wool, abrasive or chlorine-based CAUTION: 1. USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces. -
Page 24: Kit Contents
TRUE TBR | TDR SERIES truemfg.com CABINET ADJUSTMENTS SWING DOOR OPERATION – REVERSE DOOR SWING REVERSING THE DOOR SWING: (shipped with cabinet) KIT CONTENTS: • Door stop bracket • Bottom hinge bracket • Top hinge bracket • Door cam base and riser •... - Page 25 TRUE TBR | TDR SERIES truemfg.com CABINET ADJUSTMENTS (CONT.) Also remove any door 1. Install screws back into plugs and all screws on the prior hole locations opposite side of the current securing the previous door hinge placement top door brackets, top and and bottom.
-
Page 26: Door Removal
– Slide left door to the right, so right edge lines up with STEP 5 the end of the TRUE Logo located at the top of the door frame (see image 6). Then lift door out of track same way as image 4. - Page 27 TRUE TBR | TDR SERIES truemfg.com CABINET ADJUSTMENTS (CONT.) SLIDE DOOR OPERATION – DOOR ADJUSTMENT SLIDE DOOR CABINETS WITH HOLD-OPEN FEATURE These instructions explain how to keep the door in the open position. Slide the door open. Latch the door in the open position from the back side of door (notch in track).
-
Page 28: Tools Required
TRUE TBR | TDR SERIES truemfg.com SERVICING & REPLACEMENT COMPONENTS • Component parts shall be replaced with OEM (original equipment manufacturer) components. • Unplug the refrigerator/freezer before cleaning or making any repairs. Setting temperature controls to the 0 position or powering off an electronic control may not remove power from all components (for example;... - Page 29 TRUE TBR | TDR SERIES truemfg.com SERVICING & REPLACEMENT COMPONENTS (CONT.) SWING DOOR GASKET REPLACEMENT – You will now need to silicone each of the 4 corners STEP 2 of the door. For narrow gaskets (see image 2a), and for wide gaskets (see image 2b).
-
Page 31: Warranty Information
TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of three (3) years from the date of original installation or 39 months after shipment date from TRUE, whichever occurs first.
