RV

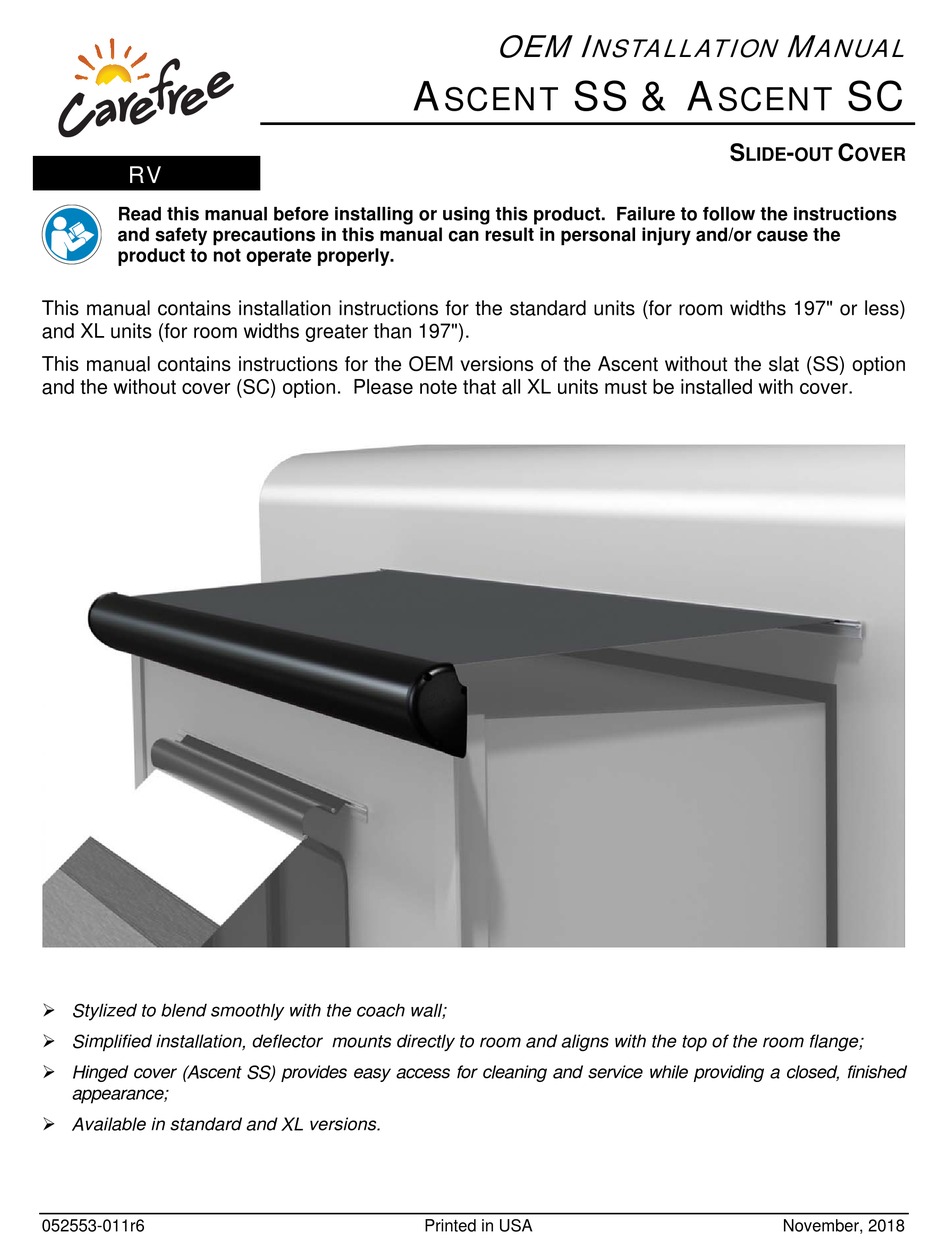

Read this manual before installing or using this product. Failure to follow the instructions
and safety precautions in this manual can result in personal injury and/or cause the
product to not operate properly.
This manual contains installation instructions for the standard units (for room widths 197" or less)
and XL units (for room widths greater than 197").
This manual contains instructions for the OEM versions of the Ascent without the slat (SS) option
and the without cover (SC) option. Please note that all XL units must be installed with cover.
Stylized to blend smoothly with the coach wall;
Simplified installation, deflector mounts directly to room and aligns with the top of the room flange;
Hinged cover (Ascent SS) provides easy access for cleaning and service while providing a closed, finished
appearance;
Available in standard and XL versions.
052553-011r6
OEM I
NSTALLATION
A
SS & A
SCENT
Printed in USA
M
ANUAL
SC
SCENT
S
-
C
LIDE
OUT
OVER
November, 2018
Advertisement
Table of Contents
Related Manuals for Carefree ASCENT SS
Summary of Contents for Carefree ASCENT SS
- Page 1 Stylized to blend smoothly with the coach wall; Simplified installation, deflector mounts directly to room and aligns with the top of the room flange; Hinged cover (Ascent SS) provides easy access for cleaning and service while providing a closed, finished appearance;...
- Page 2 Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado products only. Any other reproduction or translation of this document in whole or part is strictly prohibited without prior written approval from Carefree of Colorado.
-
Page 3: Table Of Contents
Base Weight @ 197" Box Length = 50.4 lbs; for every 12" increase, add 2.0 lbs Base weight calculation is approximate and does not include awning rail or cover (Ascent SS). For Ascent SS, add 1.25 lbs per 12" length for cover. -
Page 4: Preliminary Layout - All Models
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT RELIMINARY AYOUT ODELS Two options are available to install the deflector. Option 1 mounts the case directly to the flange and face of the room. Option 2 uses mounting brackets for the deflector. This option is used when the coach has a curved flange or when the measurement of the top of room to top of flange height exceeds the 2.7"... -
Page 5: Mounting The Awning Rail
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT OUNTING THE WNING NOTES: a) The awning rail for the XL is shipped in two pieces. b) Clean and deburr the mating ends of the rails so that there are no sharp edges at the joint. c) When mounting the rails, make sure that the two pieces are aligned and straight. -
Page 6: Installation - Ascent And Ascent Xl (Up To 353")
1. Product configuration is specified at time of order, including length, fabric, color etc. Check assembly against original purchase order. 2. The cover (item 2) and screws (item 8) are used with the Ascent SS only. 3. Awning rail is optional and ordered separately. -
Page 7: Installing The Deflector - Option 1, Direct Mount
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT 1, D NSTALLING THE EFLECTOR PTION IRECT OUNT The following instructions reference the preliminary layout done previously. Refer to "Option 1 - Direct Mount of Deflector" on page 2. Screw Grooves Top of Flange 2”... -
Page 8: Installing The Deflector - Option 2, W/ Brackets
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT NSTALLING THE EFLECTOR PTION RACKETS The following instructions reference the preliminary layout done previously. Refer to "Option 2 - Case Mount w/ Brackets" on page 2. 4" min, 12" max (typ) 7.5"-8.5"... -
Page 9: Installing The Roller Tube Assembly
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT 7. Thoroughly clean any shavings and debris from the case before proceeding to the next step. 8. Snap the bracket cover onto the bracket to cover the screw heads. The tab on the back of the cover goes into the slotted hole of the bracket. -
Page 10: Installing The Front Cover (Ascent Ss Only)
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT NSTALLING THE RONT OVER SCENT ONLY If closed, open the room approximately 3 inches. If open, close the room to approximately 3 inches. #8 x 1 1/2 Shoulder Screw (x2) Cover DETAIL as010b... -
Page 11: Installation - Ascent Xl, 354" And Longer
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT XL, 354" NSTALLATION SCENT ONGER IMPORTANT NOTE: All Ascent XL models 197" and longer) must be installed with the cover. OMPONENT HECKLIST as005a I ESCRIPTION Awning Rail ... -
Page 12: Installing The Deflector - Option 1, Direct Mount
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT 1, D NSTALLING THE EFLECTOR PTION IRECT OUNT The following instructions reference the preliminary layout done previously. Refer to "Option 1 - Direct Mount of Deflector" under Preliminary Layout on page 2. Screw Grooves Top of Flange... -
Page 13: Installing The Deflector - Option 2, W/ Brackets
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT NSTALLING THE EFLECTOR PTION RACKETS The following instructions reference the preliminary layout done previously. Refer to "Option 2 - Deflector Mount w/ Brackets" under Preliminary Layout on page 2. #12 x 1/2 Self Drilling Screw (qty: 2 per bracket) 4"... -
Page 14: Installing The Roller Tube Assembly
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT NSTALLING THE OLLER TUBE SSEMBLY CAUTION Do not remove the spring locking pins until instructed when all steps are completed. Assembling the Roller Tube and Fabric The roller tube is shipped in two pieces. The splice for the roller tube is attached in the end of the right roller tube. Clearly Mark the RH End of Roller Tube 6”... -
Page 15: Mounting The Roller Tube Assembly
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT Mounting the Roller Tube Assembly NOTICE For the XL model this operation requires 3 people; one person for each end of the assembly and one in the center. Awning Rail Deflector Slide End Cap In After Inserting... -
Page 16: Installing The
OEM A SC & SS AREFREE OF OLORADO NSTALLATION ANUAL SCENT NSTALLING THE RONT OVER NOTICE DO NOT attempt to open or close the room until the front cover is installed, closed and fastened. #8 x 1 1/2 Shoulder Screw (x2) #8-32 x 1/2 Screw (x2)
