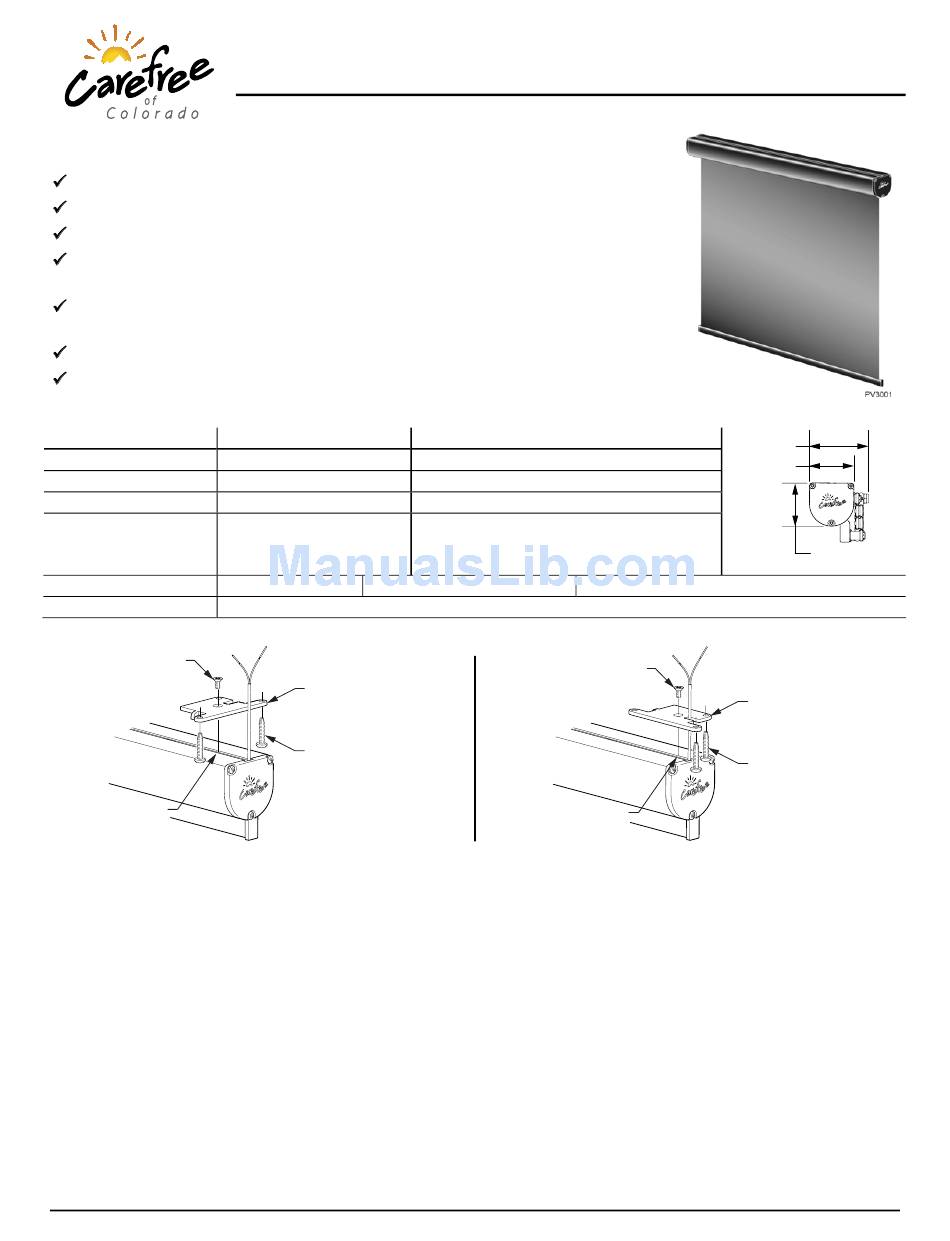

Carefree POWER SMART VISOR Installation & Operation

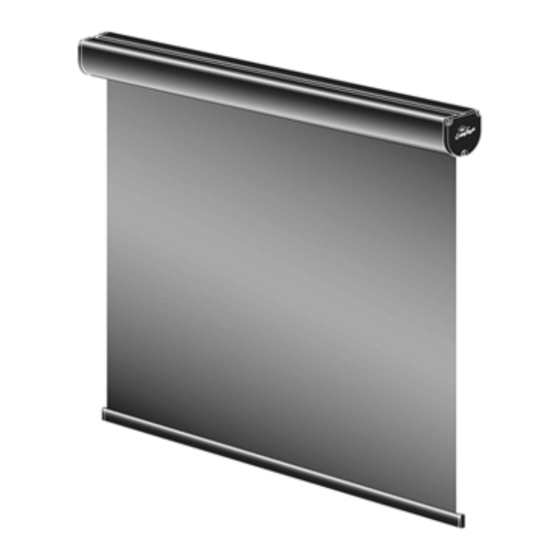

The Carefree line of Powervisor products provides many features for the coach
owner.
Cuts down heat and glare;
Works as a privacy shade while parked;
Slim case design;
Horizontal mounting brackets provide mounting flexibility and reduced
installation labor;
Scissor support arm assembly provides increased rigidity that reduces
curtain movement;
Single switch operation;
Optional Power Visor remote available (replaces hard-wired switch).
S
PECIFICATIONS
P
Available Widths: 30", 36", 40", 43", 54"
Maximum Drop: 36"
Color: Black
Black vinyl
Fabric:
Motor: 10VDC-14VDC
Control: Single switch operation (optional remote available, remote replaces switch)
I
NSTALLATION
8-32 x 5/16
PFH Screw
Captured Nut in
Mounting Slot
1. Determine the best orientation to mount the brackets and attach the mounting brackets to the visor
using the supplied 8-32 x 5/16 flat head screws.
2. Position the visor and mark the location of the mounting holes and motor wire.
3. Drill four (4) 1/8" pilot holes for the mounting screws.
4. Drill a 1/4" access hole for the motor wire leads.
5. Lift the visor in position, feed the motor wires through and attach the visor using four (4) #10 x 1 screws.
052556-001r1
S V
OWER MART ISOR
Circuit Protection: 5amp
Mounting Bracket
#10 x 1 PPH Screw
(2 per bracket)
Figure 1. Mounting the Visor.
I
P S
OWER MART
P S V
OWER IDE ISOR
26", 30", 36", 40", 43"
36"
Black
Split fabric design:
Top =solid black vinyl
Bottom = solar see through mesh
Available in LH or RH Internal Mount
8-32 x 5/16
PFH Screw
Captured Nut in
Mounting Slot
1
& O
NSTALLATION
P
OWER
V P
ISOR AND OWER
2 7/8"
2 1/8"
Mounting Bracket
#10 x 1 PPH Screw
(2 per bracket)
PERATION
V
ISOR
S V
IDE ISOR
2 1/8"
PV3009
PV3002
January, 2009
