- Page 1 ERVICE ANUAL SCENT LIDE OVER HIS MANUAL CONTAINS INFORMATION FOR SCENT SCENT These instructions apply to all models listed. Details and procedures unique to a specific model are labeled appropriately 052553-301 Printed in USA June, 2008 Table of Contents...
- Page 2 ROPRIETARY TATEMENT The Ascent series of Slide-Out Room Covers is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete.
- Page 3 Carefree of Colorado Service Manual SCENT ABLE OF ONTENTS Product Overview .......................... 2 The Front Cover - All Models......................3 Canopy Replacement - All Models ....................4 Removing the Fabric and Roller Tube ....................4 Installing the Fabric and Roller Tube ......................5 Spring/Roll Bar Replacement .......................
-
Page 4: Product Overview

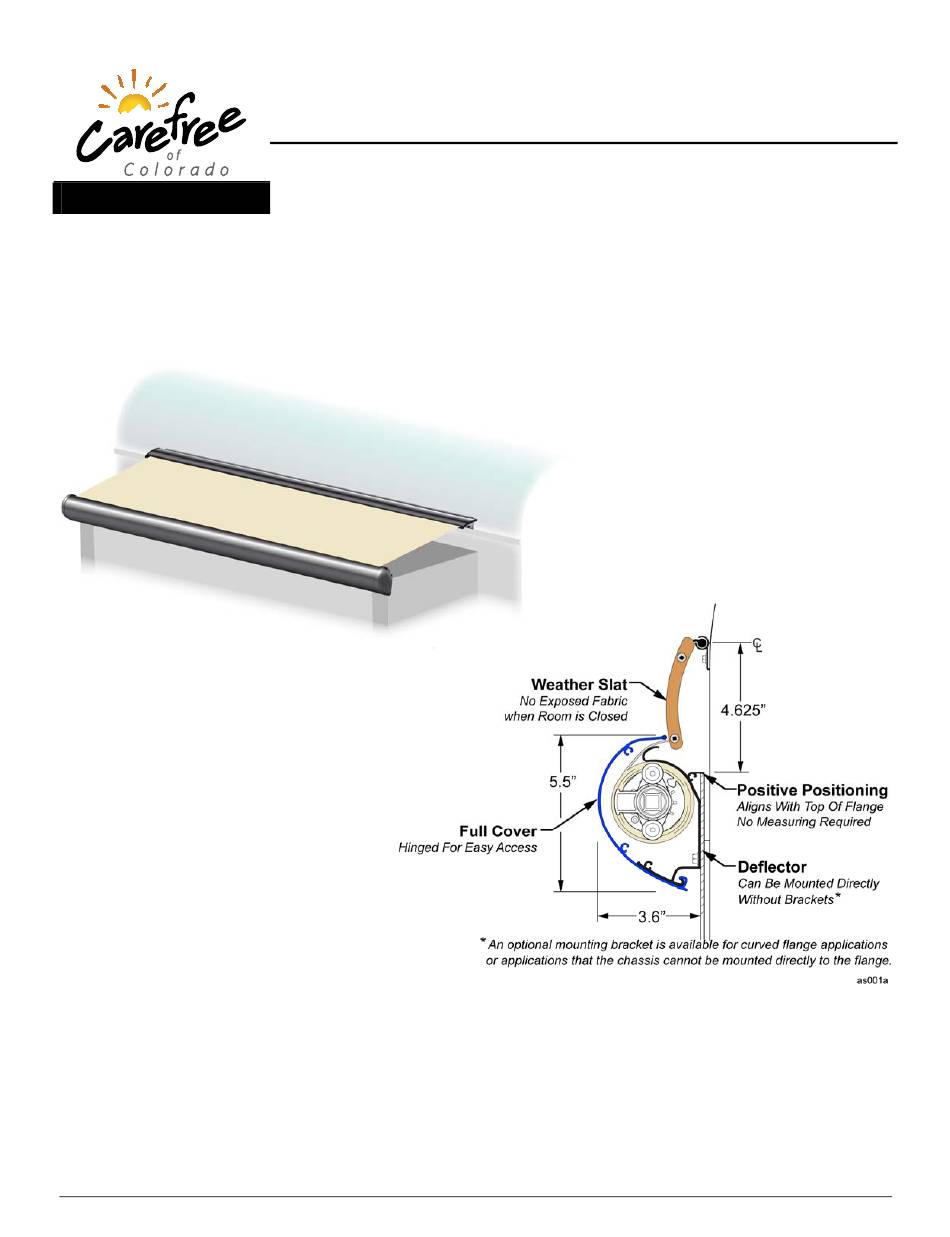

Service Manual Carefree of Colorado SCENT RODUCT VERVIEW Stylized to blend smoothly with the coach wall; Simplified installation, deflector mounts directly to room and aligns with the top of the room flange; Improved pitch provides for rain run off; Hinged cover provides easy access for cleaning and service while providing a closed, finished appearance;... - Page 5 Carefree of Colorado Service Manual SCENT RONT OVER ODELS To Open the Cover #10 x 1 1/2 SHCS Screw (qty: 2) Cover DETAIL as010 Figure 2. Opening the Front Cover. 1. Open the room approximately 3" - 4". This will relieve the fabric tension against the front cover.
- Page 6 Service Manual Carefree of Colorado SCENT ANOPY EPLACEMENT ODELS Slat Rotate one End Plate Down to Expose Fabric Slot Remove and Save Lower Screws Slide End Cap Out After Loosening Screws Spindle Tab (ref) Loosen the 2 Roller Tube & Fabric End Cap Screws Approximately 1”...
- Page 7 Carefree of Colorado Service Manual SCENT 5. (Detail B) Inside the end caps, remove the spindle tab retaining screws and washers. There is one screw in each end cap. 6. On one end of the deflector, loosen the screws for the end cap approximately 1" and slide the end cap out.
- Page 8 Service Manual Carefree of Colorado SCENT PRING EPLACEMENT WARNING HESE PROCEDURES DEAL DIRECTLY WITH THE PRE WOUND SPRING TENSION IN THE ROLL BAR AILURE TO EXCERCISE CARE AND OR FAILURE TO FOLLOW THE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY AND...
-
Page 9: Spring Assembly
4. Insert the new spring assembly and secure to the roller tube with the #8 x 1 screw removed previously. Calculating the Spring Winds The Ascent spring winds are calculated based on the box length of the slide-out. To calculate the spring winds (room closed), measure the box length... - Page 10 Service Manual Carefree of Colorado SCENT 7. After adding the required number of spring winds, firmly Firmly Grasp the Roller Tube hold the ratchet handle and roller tube and insert the spring locking pin. The pin will only go in partially until 3/8 Square Drive the 3/8 drive is removed.
- Page 11 Carefree of Colorado Service Manual SCENT 7. (Detail B) Inside each end cap, screw in the #10 x 3/8 screw and fender washer as shown. CAUTION HEN THE PINS ARE REMOVED THE ROLLER TUBE SPRINGS WILL QUICKLY ROLL UP ANY SLACK MATERIAL...
-
Page 12: Standard Maintenance
Service Manual Carefree of Colorado SCENT TANDARD AINTENANCE Maintaining a Carefree Ascent slide-out cover is easy. Just follow these basic steps: • Periodically check that the fasteners are tight. Tighten if necessary. • Keep the awning fabric clean. ABRIC CAUTION... -
Page 13: Part Number Listing
OLOR XTENSION AC = Ascent 050 - 196 Standard Fabric VINYL & STANDARD Extension = 42" BZ = Ascent XL 197 - 330 CUSTOM POLYWEAVE ACRYLIC Refer to sales order information for specific codes and colors available UMBER ERIAL UMBER... -
Page 14: Parts List
Service Manual Carefree of Colorado SCENT LLUSTRATED ARTS XL Only DETAIL DETAIL DETAIL DETAIL XL Chassis Assy XL Slat Assy XL Cover Assy XL Roll Bar Assy ascent501 052553-301 Table of Contents... - Page 15 Refer to Canopy Order Form Notes: 1. XXX = Color; xxx = Length in inches 2. Ascent XL components (items 12, 22) are shipped in two pieces and must be assembled during installation. 3. Roller tube assy (item 15) is complete and includes roller tube, LH spindle assy (item 17) and pre- wound RH spring assy (item 18).
- Page 16 Service Manual Carefree of Colorado SCENT NOTES: 052553-301 Table of Contents...
