Carefree LATITUDE Service Manual

2v motorized lateral arm awning w/ direct response
Hide thumbs Also See for LATITUDE:
Table of Contents

Advertisement

Quick Links

S
M
ERVICE
ANUAL
L
ATITUDE
12V Motorized Lateral Arm Awning w/ Direct Response
S
S
INGLE
TAGE
D
S
UAL
TAGE
070005-301r2
Printed in USA
February, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LATITUDE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carefree LATITUDE

Summary of Contents for Carefree LATITUDE

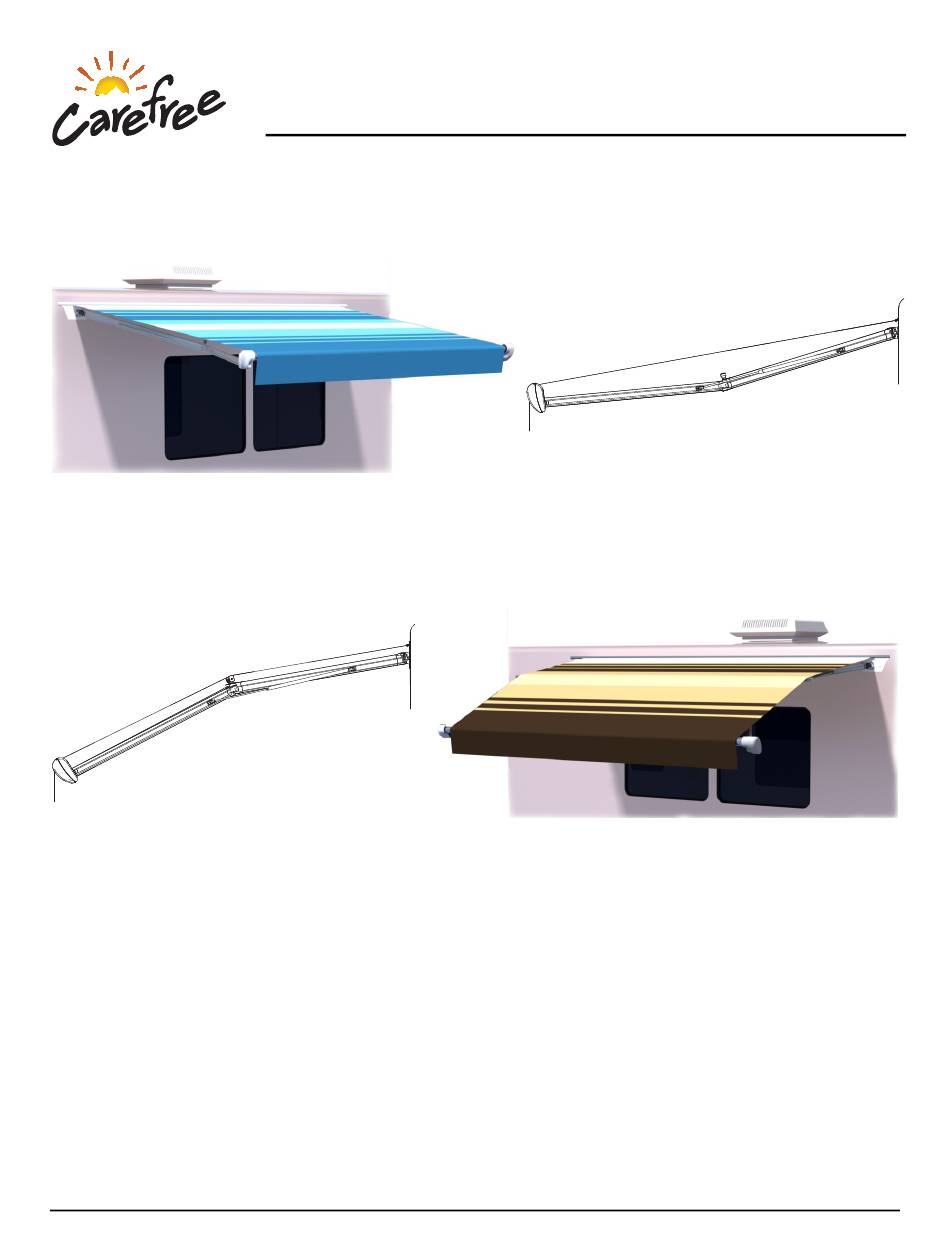

  • Page 1 ERVICE ANUAL ATITUDE 12V Motorized Lateral Arm Awning w/ Direct Response INGLE TAGE TAGE 070005-301r2 Printed in USA February, 2016...
  • Page 2 ROPRIETARY TATEMENT The Latitude Awning is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete.

  • Page 3: Table Of Contents

      Part Number Listing ........................15 Part Number/Serial Number Location ....................15  Part Number Configuration ........................15  Illustrated Parts List ..........................16  Latitude – Single Stage ........................16  Latitude – Dual Stage ........................18  070005-301r2 Printed in USA February, 2016...

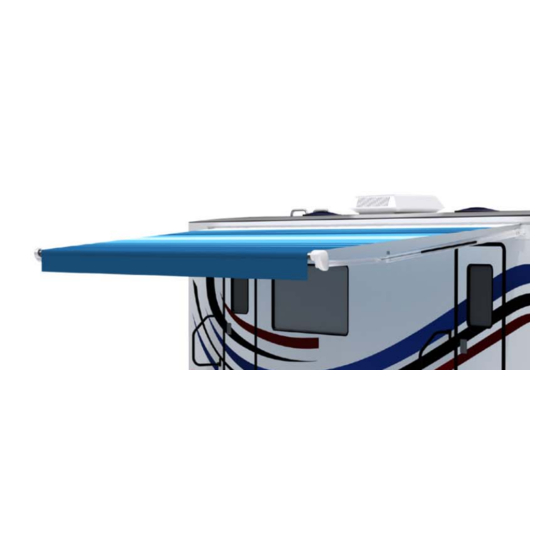

  • Page 4 RODUCT VERVIEW The Latitude Awning is a state of the art lateral arm awning. Each unit is equipped with lateral support arms. No vertical arms interfere with coach sidewalls, custom graphics or equipment mounted on the sidewalls.  Fully retractable and self-storing;...

  • Page 5: Standard System Adjustments

    Carefree of Colorado Service Manual ATITUDE TANDARD YSTEM DJUSTMENTS DJUSTING THE OSITION For the awning to operate and close correctly, the arms must be parallel to the roller tube. If the arm sags, the arm position can be adjusted to bring the arm parallel.

  • Page 6: Canopy Replacement

    Service Manual Carefree of Colorado ATITUDE Spring Arms ANOPY EPLACEMENT 1. Extend the awning completely. 2. Firmly tie the elbows of the spring arms together. Use a minimum 1/2" rope - do not use bungee cords. When tying the rope, use a non-slip knot such as a square knot or equivalent.
  • Page 7 Carefree of Colorado Service Manual ATITUDE 9. While firmly pressing the roller tube, remove the arm ties. Slowly allow the roller tube and arms to extend. 10. Restore power. 11. Retract the awning and check that the canopy is rolling up squarely onto the roller tube. Adjust as necessary.

  • Page 8: Removing The Head Covers

    Service Manual Carefree of Colorado ATITUDE EMOVING THE OVERS These instructions are for removing the head covers for service or replacement. The illustration shows the motor head covers. The instructions apply to both the motor and idler head. NOTE: If replacing the covers: To ensure that the covers properly match up and latch together always replace both the front and rear cover.

  • Page 9: Arm Replacement

    10. For the motor side arm: Carefully press the control cable into the slot at the top of the arm channels. Allow some slack at the joints and elbows to allow the cable to flex when the awning is operated. 11. For Two-Stage Latitude: Press the middle rail glide onto the elbow pin. Tighten the securing screw loosened previously.

  • Page 10: Gas Spring Replacement

    Service Manual Carefree of Colorado ATITUDE PRING EPLACEMENT WARNING HE GAS SPRING CLEVISES MUST BE ORIENTED AND INSTALLED AS SHOWN AILURE TO ORIENT THE CLEVISES CORRECTLY CAN CAUSE THE ARMS TO NOT FUNCTION CORRECTLY CAUTION When detaching the roller tube, do not allow the roller tube to drop toward the ground.

  • Page 11: Replacing The Mounting Plate

    Carefree of Colorado Service Manual ATITUDE EPLACING THE OUNTING LATE This procedure requires two people. The illustrations show Tie Arm Together the RH plate. The procedure is the same for the LH plate. 4" 1. Open the awning 18"-24". This is to allow adequate room for tools and access to the mounting plate.

  • Page 12: Motor/Gearbox Replacement

    Service Manual Carefree of Colorado ATITUDE OTOR EARBOX EPLACEMENT Roller Tube Shaft Spring Arms Motor Mount Screws (x3) Rear Front Cover Cover Black Gearbox Firmly Tie Elbows Together Sensor Motor Motor Wires Top= Black; Bottom = Red FL018 9. Extend the awning a minimum of 18" to access the screws in the back cover of the motor side head assembly.

  • Page 13: Sensor/Control Module Replacement

    Carefree of Colorado Service Manual ATITUDE ENSOR ONTROL ODULE EPLACEMENT This procedure may be done with the awning open or closed. 1. Disconnect power to the awning. 2. Remove the front cover. The cover snaps onto the rear Module cover. To remove, press the bottom of the rear cover until the front cover releases then lift the front cover off.

  • Page 14: Led Lighting

    Service Manual Carefree of Colorado ATITUDE LED L IGHTING WITCH NSTALLATION NOTE: Installers may choose to furnish the control switch. The installation requires that the power line (+12VDC) be attached to a dedicated 2A circuit breaker or a 2A in-line fuse must be installed between the switch and power source.

  • Page 15: Led Strip Replacement

    Carefree of Colorado Service Manual ATITUDE LED S LED Slot TRIP EPLACEMENT 1. Extend the awning out completely. 2. Disconnect power. 3. Remove the slot covers from the ends of the LED strip. LED Strip 4. Use a non-permanent marker to mark the location of each end Slot Cover of the LED strip.

  • Page 16: Led Harness Replacement

    3/8" from the edge of the material. Attach using a 1" x 6" piece of clear tape (the tape is a special bond tape available from Carefree). Posi t i o n Wi r e 3/ 8 " From Edge 10.2.

  • Page 17: Wiring Diagrams

    Carefree of Colorado Service Manual ATITUDE IRING IAGRAMS Switch and Control Module To +12VDC Awning .187, 18-20awg Female Spade .187, 14-16awg Female Terminals (qty: 3) Spade Terminals (qty: 2) Extend/Retract Black Black On/Off (+12Vdc switched) Rear View of Switch Assy...

  • Page 18: Standard Maintenance

    Service Manual Carefree of Colorado ATITUDE TANDARD AINTENANCE Maintaining a Carefree Awning is easy. Just follow these basic steps:  Always operate the awning according to the instructions.  Periodically check that the fasteners are tight. Tighten if necessary. ...

  • Page 19: Part Number Listing

    ISTING UMBER ERIAL UMBER OCATION Serial Label This awning is designed to provide many years of safe and reliable Carefree service Carefree Carefree L ATITUDE Sn : 1234567890 when operated and maintained according to the instructions in the owner’s manual.

  • Page 20: Illustrated Parts List

    Service Manual Carefree of Colorado ATITUDE LLUSTRATED ARTS Latitude – Single Stage Original Current RE TR AC T O FF EX TE A w ni ng C on tr O FF FL501 070005-301r2...
  • Page 21 Motor Bracket R012660-001 Idler Bracket R001786-10X Arm Assy, LH, Single Stage R001787-00X Arm Assy, RH, Single Stage R001788 Gas Spring, Latitude Single Stage R040905-001 Hook, Gas Spring pkg of 2 R001789 Support, Gas Spring pkg of 2 R001823 Barrel, used on Single Stage Only...

  • Page 22: Latitude - Dual Stage

    Service Manual Carefree of Colorado ATITUDE Latitude – Dual Stage Original Current RE TR AC T O FF EX TE A w ni ng C on tr O FF FL502 070005-301r2...
  • Page 23 Motor Bracket R012660-001 Idler Bracket R001793-10X Arm Assy, LH, Dual Stage R001794-00X Arm Assy, RH, Dual Stage R001795 Gas Spring, Latitude Dual Stage R040905-001 Hook, Gas Spring pkg of 2 R001789 Support, Gas Spring pkg of 2 R001796 Ramp, Midrail...
