VISULEX Maki
User's Manual

Advertisement

Table of Contents
loading

Summary of Contents for Papenmeier VISULEX Maki

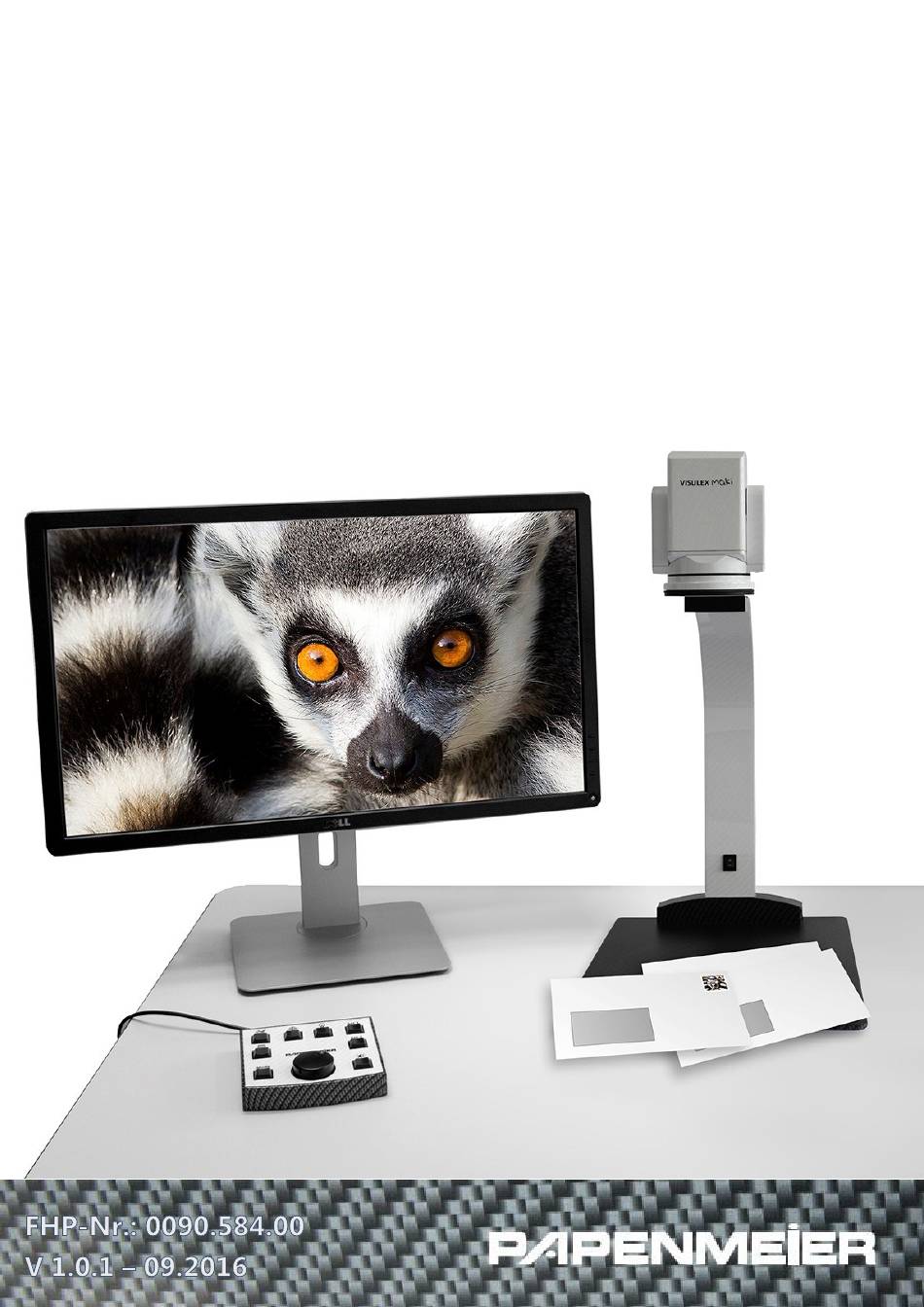

  • Page 1 VISULEX Maki User’s Manual...
  • Page 3: Table Of Contents

    Scope of Delivery............8 Address ..............8 Copyright ..............8 VISULEX MAKI ............. 9 Getting Started with VISULEX Maki ....... 9 Installation and Operation ..........9 Connectors at the Camera Arm ........9 Moving the camera ..........10 Control Panel ............11 Operating Concept ............
  • Page 4 OPTIONAL COMPONENTS ........25 Low Vision Controller ..........25 Installation ................25 Operation ................25 PC Software ............. 27 Installation ................27 Operation ................27 Hotkeys .................. 30 APPENDIX ..............32 Service ..............32 Saftey Advice ............32 Service and Maintenance ........33 Purpose of the Device ..........
  • Page 5 As of: 09.2016 This User’s Manual is protected by copyright belonging to F.H. Papenmeier GmbH & Co. KG, with all rights reserved. The User’s Manual may not be copied in whole or in part, without written consent from F.H. Papenmeier GmbH &...
  • Page 7: Introduction

    30-times zoom. Thanks to modern LED- technology and to using polarizing filters, you will obtain optimum illumination at minimum reflections. VISULEX Maki offers high flexibility because of its compact size and reduced weight. An optional table clamp provides additional space at your working place.
  • Page 8: Scope Of Delivery

    Scope of Delivery Scope of Delivery VISULEX Maki ships with the following components:  Base plate  Camera arm  Control panel  Power supply unit  Manual  Cross table  Table clamp (optional)  Switch box (optional)  Low Vision Controller(optional) ...
  • Page 9: Visulex Maki

    Connect monitor and camera arm by means of a DVI- cable. Finally, plug the power adapter into a power socket and place the connector into the port at the camera arm. Now, your VISULEX Maki is ready to be used and can be switched on.
  • Page 10: Moving The Camera

    Moving the camera Moving the camera The camera arm is firmly connected to the base plate and cannot be turned. However, you can turn the camera head by 110 degrees in each direction: To the right, to the left, forward and backward respectively.
  • Page 11: Control Panel

    Control Panel Control Panel The control panel consists of a rotary knob including a push button and eight keys. In this manual, the keys will be described in clockwise direction. Operating Concept Performing a short key press will execute a direct function.
  • Page 12: Zoom

    Control Panel By means of the rotary knob the values are changed as follows:  To increase a value, turn the rotary knob to the right.  To decrease a value, turn the rotary knob to the left. The changes will be visible immediately. Note: The changed values have to be confirmed by pressing on the rotary knob.
  • Page 13: Key 1 - Colour Modes

    Control Panel Key 1 – Colour modes Perform a short press on Key 1 to switch between colour modes. The following colour modes are available:  True Colour  Greyscale  Pseudocolour  Pseudocolour inverse After the mode “Pseudocolour inverse”, the mode “True Colour”...
  • Page 14: Key 2 - Lines And Curtains

    Control Panel Key 2 – Lines and Curtains Perform a short press on Key 2 and activate or deactivate the lines or curtains. When the lines or curtains are activated and a long press on key 2 is performed, the lines and curtains can be configured in four steps.
  • Page 15 Control Panel Step three: In this step, the other line or the other curtain will be positions by means of the rotary knob, analogue to step two. By pressing on the rotary knob the position will confirmed. This will lead you to the last step. Step four: In the final step, the colour of the lines or curtains can be selected.
  • Page 16: Key 3 - Mirroring

    Control Panel Key 3 – Mirroring Perform a short press on Key 3 to flip the image horizontally. This is required for the use as a board camera when you turn the camera head away from the camera arm, towards you. When the image is flipped horizontally and a long press on Key 3 is performed, the image will be flipped vertically in addition.
  • Page 17 Control Panel Thus, the orientation in the document will be much easier. Now, you will have two possibilities: 1. Realign your document by means of the cross-hair. Press Key 4 again or press on the rotary knob. Colour effects, lines, curtains and zoom will be set to their previous values.
  • Page 18: Key 5 - Led-Light

    Control Panel Key 5 – LED-Light Perform a short press on Key 5 to switch the LED light in the camera arm on or off. By performing a long press on Key 5, the light brightness can be adjusted. By means of the rotary knob you can select the optimum light brightness according to your needs.
  • Page 19: Key 8 - Image Parameters

    Control Panel Key 8 – Image parameters By performing a long press on Key 8, you are able to adjust the image parameters depending on the selected colour mode. True Colour When True Colour is activated, the image brightness can be adjusted.
  • Page 20: Standby-Modes

    Standby-Modes Standby-Modes VISULEX Maki has got two different standby modes. The first standby mode reacts to movements within the image. You are able to define the time in the on-screen menu or you can switch off the standby mode completely. If no image change has been detected in the set time, the LED Light will switch off and the image will turn black.
  • Page 21: The On-Screen Menu

    The on-screen menu The on-screen menu By means of the on-screen menu, you can set system parameters. To activate the on-screen menu, please press the keys 3, 4, 5 and 6 simultaneously for three seconds. The following menu will be presented: Default values White balance: Cold Sounds: OFF...
  • Page 22: Default Values

    The on-screen menu Default Values The on-screen menu presents you the following line: Default values: <NO> Select <YES> by means of the rotary knob and confirm this by pressing on the rotary knob. All values will be reset to Default Settings. Please note: The saved sets will get lost as well.
  • Page 23: Sounds

    The on-screen menu Sounds The on-screen menu presents you the following line: Sounds: <OFF> By means of the rotary knob, you can switch the signal sounds on or off. Once you have deactivated the sounds, you will receive no more acoustical feedback. Confirm your selection by pressing on the rotary knob.
  • Page 24: Standby

    Confirm your selection by pressing on the rotary knob. You will get back to the previous menu. Info In this menu, you will obtain information about your VISULEX Maki. Among other things, you will find the version number which should be available if service support is required.
  • Page 25: Optional Components

    In order to switch or mix two image sources, please use the Low Vision Controller. Installation Connect the output of VISULEX Maki and the second desired image source, e.g. a computer to the inputs of the low vision controller (Input 1, Input 2). Connect the output of the low vision controller (Monitor Output) to the monitor.
  • Page 26 Low Vision Controller Switching image half Key: Use this key to switch the two image halfes when split screen is activated. The selected fixed image half will not be changed. Split Screen on/off Key: Use this key to activate/deactivate split screen. Switching Image Source Key: Use this key to switch the image sources in full image.
  • Page 27: Pc Software

    Please install the program on your windows system and follow the instructions of your installation wizard: Connect your VISULEX Maki to your computer. For this purpose, use a free USB port and start the program. Please note: When using the PC software, it is...
  • Page 28 PC Software When you click on one of the Zoom buttons with the right mouse key, a context menu will be opened in which you can select pre-defined zoom levels directly. Colour modes Please press the button to toggle between the colour modes.
  • Page 29 PC Software Please press the button and activateor or deactivate the overview function. Please use Key 4 at the control panel to configure the focus. As another option, you can control the lines and curtains using hotkeys. LED Light Please press the button to switch the LED light it the camera arm on or off.
  • Page 30: Hotkeys

    The PC program has got global hotkeys. By means of these key combinations, you can perform the function, no matter which program is in the foreground, as long as VISULEX Maki has been started. At present, the following hotkeys are available: Hotkey function...
  • Page 31 PC Software The following states are available: - Default: The default combination for the hotkey has been activated successfully. - User-defined: A user-defined combination has been activated successfully. - Error the combination could not be activated. Thus, it does not matter if it is a user-defined or the default combination.
  • Page 32: Appendix

    Appendix Service In case of any defect of the device, please contact an authorized Papenmeier service centre. If you are in doubt about the service centre responsible for your area, please contact Papenmeier: F. H. Papenmeier GmbH & Co. KG...
  • Page 33: Service And Maintenance

    Service and Maintenance Service and Maintenance Avoid touching the device with dirty hands. You may clean the surface of the device and the optical components with a soft, damp cloth. Do not use any aggressive detergent or soap. WEEE Rg. Nr. DE 60886380 Purpose of the Device This device is intended to be used for the purpose of compensation for the handicap of visually impaired...
  • Page 34: General Precautions

    General Precautions General Precautions Our products guarantee optimum safety and reduce to a minimum the strain caused through over-exertion. However, when respecting some precautions you can contribute to avoid prejudice to your health or damage to the product. If a cellular phone is used close to the product, a minimum distance of 30 cm (1 ft) shall be respected.
  • Page 35: Technical Data

    Technical Data Technical Data Copyright © 2016 F.H. Papenmeier GmbH & Co. KG All rights reserved.
  • Page 36: Ce-Marking

    CE-Marking...
