AutoMate
MATrIx TIghTEnIng DEvIcE

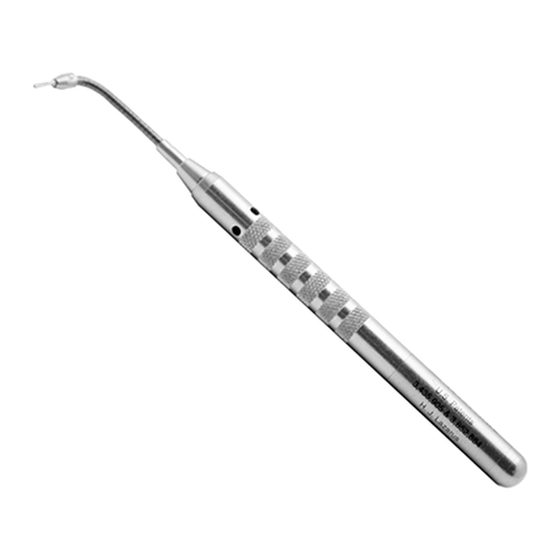

Tightening the matrix with AUTOMATE III tightening device
1. Until tightened, stabilize matrix to gingiva with finger.
Insert tip of AUTOMATE III tightening device into coil (do not use force).
Note: AUTO MATE III has sonic torque control, thereby requiring only minimal
rotational force.
2. Rotate knurled handle clockwise. After 2 to 3 sonic clicks, STOP! The band is
sub-gingivally tightened.
© 2009
DENTSPLY International
Manufactured by
DENTSPLY Caulk
38 West Clarke Avenue
Milford, DE 19963 USA
www.dentsply.com
III
®
DENTSPLY D
De-Trey-Str. 1
78467 Konstanz
GERMANY
www.dentsply.de
T
GmbH
e
rey
Advertisement
Table of Contents
Related Manuals for DENTSPLY AutoMate III
Summary of Contents for DENTSPLY AutoMate III
- Page 1 MATrIx TIghTEnIng DEvIcE Tightening the matrix with AUTOMATE III tightening device 1. Until tightened, stabilize matrix to gingiva with finger. Insert tip of AUTOMATE III tightening device into coil (do not use force). Note: AUTO MATE III has sonic torque control, thereby requiring only minimal rotational force. 2. Rotate knurled handle clockwise. After 2 to 3 sonic clicks, STOP! The band is sub-gingivally tightened.
- Page 2 AutoMate ® MATrIzEnspAnnEr Arretieren der Matrize mit dem AUTOMATE III Matrizenspanner 1. Die Matrize durch leichten Fingerdruck gegen Zahn und Gingiva fixieren und die Spitze des AUTOMATE III Matrizenspanners in die Spannspule einsetzen. 2. Den gerippten Griff im Uhrzeigersinn drehen, nach 2-3 »Klicks« liegt die Matrize dem Zahn dicht an (der AUTOMATE III Matrizenspanner besitzt über eine Drehmo m entraste eine akustische Spannungskontrolle). © 2009 DENTSPLY International Manufactured by DENTSPLY D GmbH DENTSPLY Caulk De-Trey-Str. 1 38 West Clarke Avenue 78467 Konstanz...
- Page 3 Instructions for Shaft Assembly Replacement for AutoMate III or Dual Torque ® Matrix Tightening Device 1. Grasp projecting end of old assembly with fingers or any small pliers. 2. Un-thread old assembly (counterclockwise). 3. Thread new assembly with fingers only. © 2009 DENTSPLY International Manufactured by DENTSPLY D GmbH DENTSPLY Caulk De-Trey-Str. 1 38 West Clarke Avenue 78467 Konstanz Milford, DE 19963 USA GERMANY www.dentsply.com www.dentsply.de...
- Page 4 Auswechseln des Arbeitsteiles AutoMate III oder Dual Torque ® Matrizenspanner 1. Das auszuwechselnde Arbeitsteil an dem Metallring mit den Fingern oder einer kleinen Zange fixieren, 2. Griff gegen den Uhrzeigersinn herausdrehen und 3. Neuen Einsatz einsetzen und nur mit den Fingern festdrehen. © 2009 DENTSPLY International Manufactured by DENTSPLY D GmbH DENTSPLY Caulk De-Trey-Str. 1 38 West Clarke Avenue 78467 Konstanz Milford, DE 19963 USA GERMANY www.dentsply.com www.dentsply.de...
