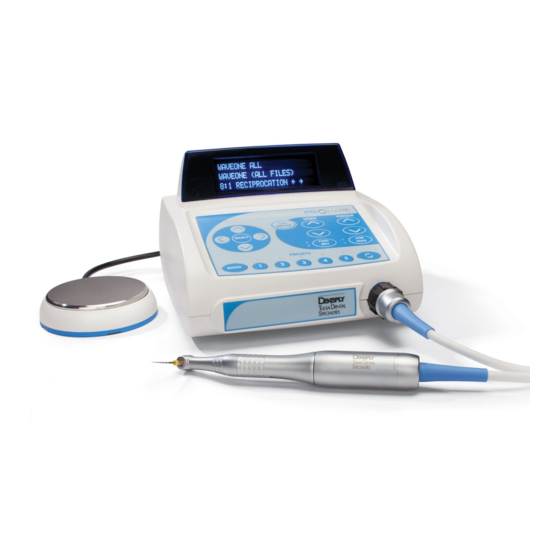

DENTSPLY PROMARK Quick Reference Manual

DENTSPLY International, Inc. • 608 Rolling Hills Drive • Johnson City, TN 37604
Menu Navigation & Select
Calibration (single press)
System Setup (press & hold)
• SETUP OPTIONS:
- Preset Memory Lock
- Recall Factory Setup
• GLOBAL OPTIONS:
- Auto Stop Reverse
- Reverse Beeper
- Torque Warning
- Accessory Warn
- Sleep Mode
- Keypress Beep
- System Volume
- Save Settings
- Cancel
Handpiece Ratio Selection
Initial out-of-box startup: Select default 8:1 handpiece; TUL-8M (Tulsa Dental Specialties) or
AHP-88MN/MNP (Anthogyr). It is important to select correct handpiece for the system to control
speed and torque accurately. An 8:1 handpiece is required for reciprocation.
Calibration Procedure: Connect motor and handpiece to system. Secure a file into the hand-
piece. Press & release CAL button. To ensure torque accuracy, calibrate system daily.
WARNING: During the preprogrammed calibration operation, the file will rotate.
Basic Operation: Select the Preset Button corresponding to the endodontic rotary file series
you are using. By default, the PROMARK
below. Pressing the Preset Button repeatedly will cycle through the individual files listed below
each series name. The Up/Down Arrow Buttons can also be used to cycle through the files,
and the Right/Left Arrow Buttons can be used to navigate from Preset to Preset.
System Setup: Enter the System Setup menu by holding down the CAL button until a double
beep is heard. (See Directions For Use for additional setup instructions.)
PROMARK ® Default Preset Chart
Preset Button 1 Default File Series:
DENTSPLY Tulsa Dental Specialties PathFile
File #1: PathFile ® (All Files)
Preset Button 2 Default File Series:
DENTSPLY Tulsa Dental Specialties WaveOne
File #1: WaveOne ® (All Files)
An 8:1 handpiece is required for reciprocation.
Preset Button 3 Default File Series:
DENTSPLY Tulsa Dental Specialties ProTaper Next™
File #1: PTN High Torque (All)
File #2: PTN Low Torque (All)
* Refer to Directions For Use for advanced features
and programming.
Distributed By
1-800-662-1202 • Fax:1-800-597-2779 • www.TulsaDentalSpecialties.com
Quick Reference Guide
® Preset Buttons are set for the file series shown
Preset Button 4 Default File Series:
DENTSPLY Tulsa Dental Specialties ProTaper
® All Files
File #1: ProTaper S1 & SX
File #2: ProTaper S2 & F1
File #3: ProTaper F2, F3, F4, F5
® All Files
File #4: ProTaper D1 & D2
File #5: ProTaper D3
Preset Button 5 Default File Series:
DENTSPLY Tulsa Dental Specialties VORTEX
File #1: VORTEX Orifice (All)
File #1: VORTEX 04, .35 through .50 taper
File #2: VORTEX 04, .25 and .30 taper
File #3: VORTEX 04, .15 and .20 taper
File #4: VORTEX 06, .35 through .50 taper
File #5: VORTEX 06, .25 and .30 taper
File #6: VORTEX 06, .15 and .20 taper
DENTSPLY Tulsa Dental Specialties
*

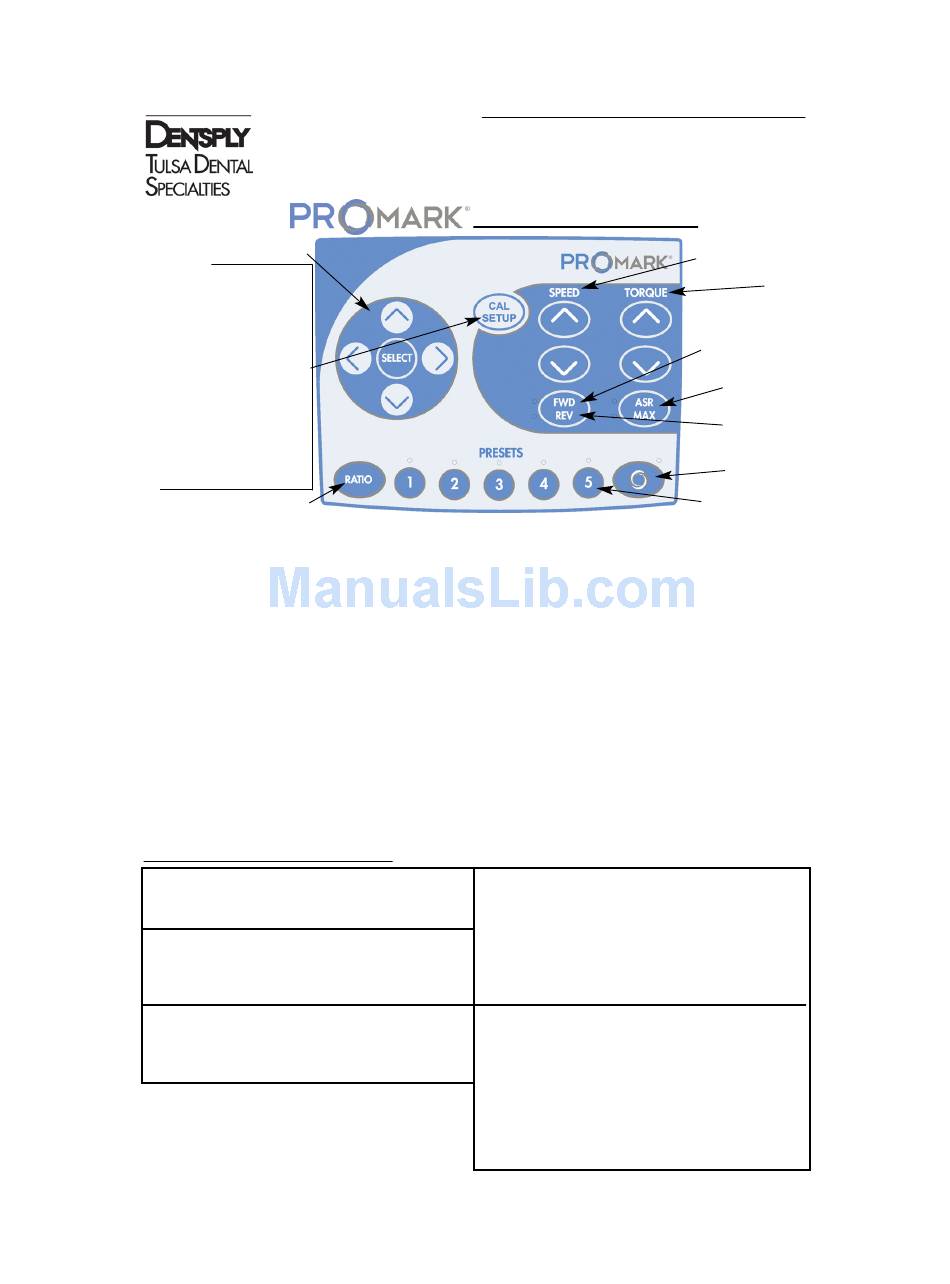

Increase/Decrease
Increase/Decrease
Motor Direction
Forward/Reverse
Auto-Stop-Reverse/
MAX Torque
Reciprocation
Out Mode
Standby Key
Preset Buttons (5)
® Universal
® 04, 06 Taper
Speed
Torque
