Page 1: Installation Manual
INSTALLATION MANUAL 100 Series Keyboard Tray Pivot USA 1-800-888-8458 Europe +31 20 312.29.39 3/32" 8-32 x 5/16" Ergonomics Ergonomía Ergonomie Ergonomi 888-99-014 REMOVE PIVOT COVERS IF ALREADY ATTACHED. Rev J. 09/05 1 of 6 888-47-008-00... - Page 2 Because vertical surfaces vary widely and the ultimate mounting method is out of Ergotron's control, it is imperative that you consult with appropriate engineering, architectural or construction personnel to ensure that the Arm is mounted properly to handle applied loads.
- Page 3 (26.97mm) Because vertical surfaces vary widely and the ultimate mounting method is out of Ergotron's control, it is imperative that you consult with appropriate engineering, architectural or construction personnel to ensure that the Arm is mounted properly to handle applied loads.

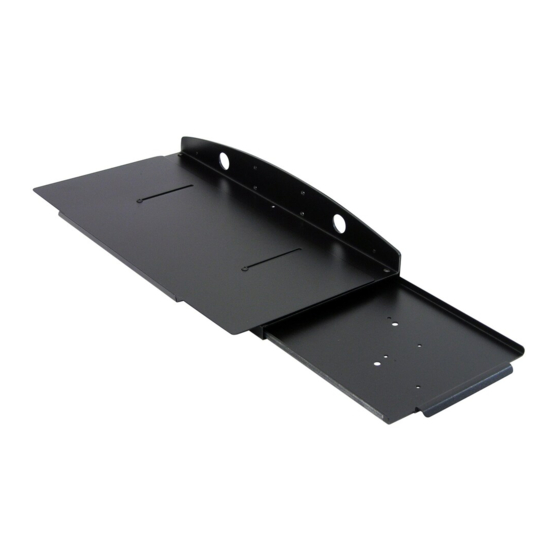

- Page 4 888-77-009 OVERVIEW Ergotron's 100 Series Keyboard Tray Pivot is factory-set to provide positive pivot control and a smooth moving force throughout the entire pivot range of motion. To customize your installation, you will evaluate the Pivot operation by moving the keyboard tray through its full range of movement. If excessive force is required to lift the keyboard tray or if the keyboard tray does not stay in the desired position, pivot adjustment is required.
-
Page 5: Trouble Shooting
1/2" (12.7mm) 1/2" (12.7mm) TROUBLE SHOOTING Symptom Probable Cause Solution Keyboard pivots up and down Adjust Pivot tension as shown Improper Pivot tension with diffi culty or too easily above Weight Capacity: 5 - 15 lbs (2 - 6.8 kgs) Rev J. - Page 6 © 2005 Ergotron, Inc. All rights reserved. Patents Pending and Patented U.S. & Foreign. Ergotron is a registered trademark of Ergotron, Inc. Reproduction of this material in whole or part for any purpose other than that authorized by Ergotron, Inc. is prohibited.
