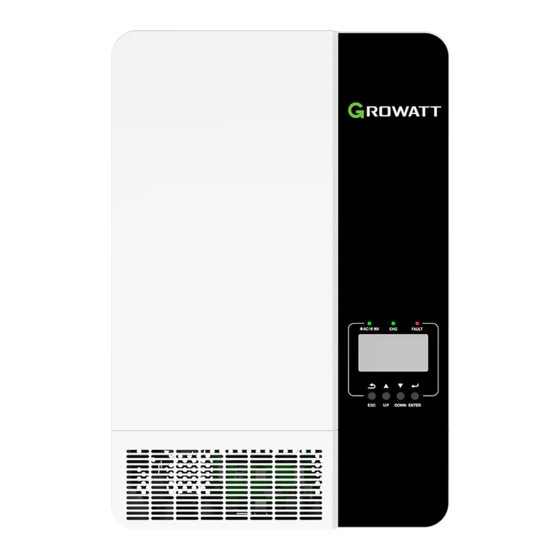

- Page 1 User Manual Off Grid Solar Inverter SPF 3000TL LVM-US SPF 3500TL LVM-US SPF 3500 US SPF 5000 US Version: 1.0...
-
Page 2: Table Of Contents
5.4 Parallel Operation in Single Phase ......................25 5.5 Parallel Operation in Three Phase ......................27 5.6 Parallel Operation in Split Phase(Only for SPF 3000TL LVM-US /SPF 3500TL LVM-US) ........31 5.7 PV Connection ............................32 5.8 LCD Setting and Display .......................... 32 5.9 Commissioning ............................ -
Page 3: Information On This Manual
1.0 Information on this Manual 1.1 Validity This manual is valid for the following devices: SPF 3000TL LVM-US SPF 3500TL LVM-US SPF 3500 US SPF 5000 US 1.2 Scope This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. -
Page 4: Introduction
2.0 Introduction Hybrid Power System This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. -
Page 5: Product Overview
2.2 Product Overview 1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. AC input 7. WiFi/GPRS communication port 8. USB communication port 9. BMS communication port (support CAN/RS485 protocol) 10. RS485 communication port (for expansion) 11. -
Page 6: Installation
3.0 Installation 3.1 Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items in the package: The unit x 1 User manual x 1 Communication cable x 1 Current sharing cable x 1 Parallel communication cable x 1 Note: The Software CD is no longer provided, if necessary, please download it from the official website... -
Page 7: Battery Connection
2. Connect all battery packs as units requires. It’s suggested to connect at least 200Ah capacity battery for SPF 3000TL LVM-US / SPF 3500TL LVM-US / SPF 3500 US / SPF 5000 US. 3. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are tightened with torque of 2Nm. - Page 8 3.4.3 Lithium Battery Connection If choosing lithium battery for SPF 3000TL LVM-US / SPF 3500TL LVM-US / SPF 3500 US / SPF 5000 US, you are allowed to use the lithium battery only which we have configured. There are two connectors on the lithium battery, RJ45 port of BMS and power cable.
- Page 9 AGM (default) Flooded Lithium (only suitable when communicated with BMS) User-Defined Battery type If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 19, 20 and 21. User-Defined 2（suitable when lithium battery without BMS communication）...
-
Page 10: Ac Input/Output Connection
Default 20%, 5%~50% Settable Note: Any questions about communicating with BMS, please consult with Growatt. 3. Communicating with battery BMS in parallel system If need to use communicate with BMS in a parallel system, you should make sure to connect the BMS communication cable between the battery and one inverter of the parallel system. - Page 11 AC input. The recommended spec of AC breaker is 40A for SPF 3000TL LVM-US /SPF 3500TL LVM-US /SPF 3500 US /SPF 5000 US. CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input and output connectors.
-
Page 12: Pv Connection
1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. 2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage. INVERTER MODEL SPF 3000TL LVM-US SPF 3500TL LVM-US SPF 3500 US SPF 5000 US Max. -
Page 13: Communication Connection
3.8 Communication Connection Please use supplied communication cable to connect to inverter and PC. Follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software. The monitoring software is downloadable from our website www.ginverter.com. 3.9 Dry Contact Signal There is one dry contact(3A/250VAC) available on the rear panel. -
Page 14: Operation
4.0 Operation 4.1 Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the button of the case) to turn on the unit. 4.2 Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three indicators, four function keys and a LCD display, indicating the operating status and input/output power information. - Page 15 4.2.3 LCD Display Icons Icon Description AC Input Information AC input icon Indicate AC input power, AC input voltage, AC input frequency, AC input current Indicate AC power loads in bypass PV Input Information PV input icon Indicate PV power, PV voltage, PV current, etc Output Information Inverter icon Indicate...
- Page 16 In AC mode, battery icon will present Battery Charging Status Status Battery voltage LCD Display <2V/cell 4 bars will flash in turns. Bottom bar will be on and the other three bars Constant Current 2 ~ 2.083V/cell will flash in turns. mode / Constant Bottom two bars will be on and the other two bars 2.083 ~ 2.167V/cell...
-
Page 17: Lcd Setting
Maximum charging current: set total charging current for SPF 3000TL LVM-US: Default 60A, 10A~80A Settable solar and utility chargers. SPF 3500TL LVM-US: Default 60A, 10A~80A Settable (Max. charging current = SPF 3500 US: Default 60A, 10A~80A Settable utility charging current +... - Page 18 Generator(Only diesel generators allowed) If selected, acceptable AC input voltage range will be within: SPF 3000TL LVM-US /SPF 3500TL LVM-US: 65~140VAC SPF 3500 US /SPF 5000 US: 90~280VAC Note: When connecting generator, the generator should be no less than 10KVA(no less than 20KVA for three phase parallel system), and the inverters should be no more than 2 units in one phase.
- Page 19 Program 02 is smaller than that in Program 11, SPF 3000TL LVM-US :Default 30A, 0A~40A Settable the inverter will apply SPF 3500TL LVM-US :Default 30A, 0A~40A Settable charging current from SPF 3500 US :Default 30A, 0A~60A Settable Program 02 for utility...
- Page 20 (Switch off). Note: Parallel operation L1 Phase:(Only for SPF 3000TL LVM-US / SPF 3500TL LVM-US) can only work when battery connected L2 Phase: (Only for SPF 3000TL LVM- L2 Phase: (Only for SPF 3000TL...
- Page 21 “3P2” in program 23 for the inverters connected to L2 phase and “3P3” in program 23 for the inverters connected to L3 phase. Split-phase operation only for SPF 3000TL LVM-US / SPF 3500TL LVM-US Select “2P0” for the inverters connected to L1 phase;...
- Page 22 Default 120min, 5min~900min Battery equalized timeout Settable Default 30days, 1 days~90 days Equalization interval Settable Equalization activated immediately Equalization activated immediately off(default) Equalization activated If equalization function is enabled in program 43, this program can be setup. If “On” is selected in this program, it’s to activate battery equalization immediately immediately and LCD main page will shows “...
-
Page 23: Display Information
4.4 Display Information The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable information is switched as below order: voltage, frequency, current, power, firmware version. Setting Information LCD display ① AC Input voltage ②... -
Page 24: Operating Mode Description
4.5 Operating Mode Description Operation mode Description LCD display Standby mode / Charging by utility and PV Charging by utility energy. Power saving mode Note: *Standby mode: The inverter No output is is not turned on yet but at supplied by the this time, the inverter can unit but it still charge battery without AC... -
Page 25: Parallel Installation Guide
5.0 Parallel Installation Guide 5.1 Introduction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase with up to 6 units. 2. Maximum 6 units work together to support 3-phase equipment. Four units support one phase maximum. 3. - Page 26 250A/230VAC 300A/230VAC Note1: You can use 40A breaker for SPF 3500 US and 50A for SPF 3000TL LVM-US /SPF 3500TL LVM-US /SPF 5000 US for only 1 unit, and each inverter has a breaker at its AC input. Note2: Regarding three phase system, you can use 4 poles breaker, the rating is up to the current of the phase which has the maximum units.
-
Page 27: Parallel Operation In Single Phase
5.4 Parallel Operation in Single Phase WARNING! All inverters must be connected to the same batteries and ensure each group of cables from the inverters to the batteries in the same length. Two inverters in parallel: Power Connection Communication Connection Three inverters in parallel: Power Connection Communication Connection... - Page 28 Four inverters in parallel: Power Connection Communication Connection Five inverters in parallel: Power Connection Communication Connection...
-
Page 29: Parallel Operation In Three Phase
Six inverters in parallel: Power Connection Communication Connection 5.5 Parallel Operation in Three Phase WARNING! All inverters must be connected to the same batteries and ensure each group of cables from the inverters to the batteries in the same length. One inverter in each phase: Power Connection Communication Connection... - Page 30 Two inverters in one phase and only one inverter for the remaining phases: Power Connection Communication Connection Two inverters in two phases and only one inverter for the remaining phase: Power Connection Communication Connection...
- Page 31 Three inverters in one phase and only one inverter for the remaining two phases: Power Connection Communication Connection Two inverters in each phase: Power Connection Communication Connection...
- Page 32 Three inverters in one phase, two inverters in second phase and one inverter for the third phase: Power Connection Communication Connection Four inverters in one phase and one inverter for the other two phases: Power Connection Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters.
-
Page 33: Parallel Operation In Split Phase(Only For Spf 3000Tl Lvm-Us /Spf 3500Tl Lvm-Us)
5.6 Parallel Operation in Split Phase(Only for SPF 3000TL LVM-US /SPF 3500TL LVM-US) One inverter in each phase: Power Connection Communication Connection Two inverters in each phase: Power Connection Communication Connection... -
Page 34: Pv Connection
Three inverters in each phase: Power Connection Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters. 5.7 PV Connection Please refer to user manual of single unit for PV Connection on Page 10. CAUTION: Each inverter should connect to PV modules separate. - Page 35 Step 4: Switch on all AC breakers of Line wires in AC input. It’s better to have all inverters connect to utility at the same time. If not, it will display warning 15. LCD display in Master unit LCD display in Slave unit Step 5: If there is no more fault alarm, the parallel system is completely installed.
- Page 36 5.9.3 Parallel in Split Phase(Only for SPF 3000TL LVM-US /SPF 3500TL LVM-US) Step 1: Check the following requirements before commissioning: Correct wire connection Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected ...
-
Page 37: Fault Reference Code
6.0 Fault Reference Code Fault Code Fault Event Icon on Fan is locked Over temperature Battery voltage is too high Battery voltage is too low Output short circuited Output voltage is too high. Overload time out Bus voltage is too high Bus soft start failed The main relay failed Over current or surge... -
Page 38: Warning Indicator
7.0 Warning Indicator Warning Warning Event Audible Alarm Icon Code flashing Fan is locked when inverter is on Beep 3 times every second Beep once every second Over temperature Beep once every second Battery is over-charged Beep once every second Low battery Beep once every 0.5 second Overload... -
Page 39: Battery Equalization
8.0 Battery Equalization Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalizationalso helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery. -
Page 40: Specifications
9.0 Specifications Table 1 Line Mode Specifications INVERTER MODEL SPF 3000TL SPF 3500TL SPF 3500 US SPF 5000 US LVM-US LVM-US Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 120Vac 230Vac 95Vac±7V (UPS); 65Vac±7V 170Vac±7V (UPS); 90Vac±7V Low Loss Voltage (Appliances) (Appliances) 100Vac±7V (UPS);... - Page 41 Table 2 Inverter Mode Specifications INVERTER MODEL SPF 3000TL SPF 3500TL SPF 3500 US SPF 5000 US LVM-US LVM-US 3KVA/3KW 3.5KVA/3.5KW Rated Output Power 5KVA/5KW Pure Sine Wave Output Voltage Waveform 120Vac±5% 230Vac±5% Output Voltage Regulation 50Hz / 60Hz (Auto detection) Output Frequency 29.2A 15.2A...
- Page 42 Table 3 Charge Mode Specifications Utility Charging Mode INVERTER MODEL SPF 3000TL SPF 3500TL SPF 3500 US SPF 5000 US LVM-US LVM-US 3-Step Charging Algorithm 40Amp(@V =120Vac) 60Amp 80Amp Max. AC Charging Current =230Vac) =230Vac) 58.4Vdc Flooded Battery Bulk Charging Voltage 56.4Vdc AGM / Gel Battery...
-
Page 43: Trouble Shooting
10.0 Trouble Shooting Problem LCD/LED/Buzzer Explanation What to do LCD/LEDs and buzzer Unit shuts down The battery voltage is too low . 1. Re-charge battery. will be active for 3 Automatically during seconds and then (<1.91V/Cell) 2. Replace battery. startup process. complete off. - Page 44 1. If you connect to a lithium battery without communication, check whether the voltage points of the program 19 and 21 are too high Fault code 08 Bus voltage is too high. for the lithium battery. 2. Restart the unit, if the error happens again, please return to repair center.
