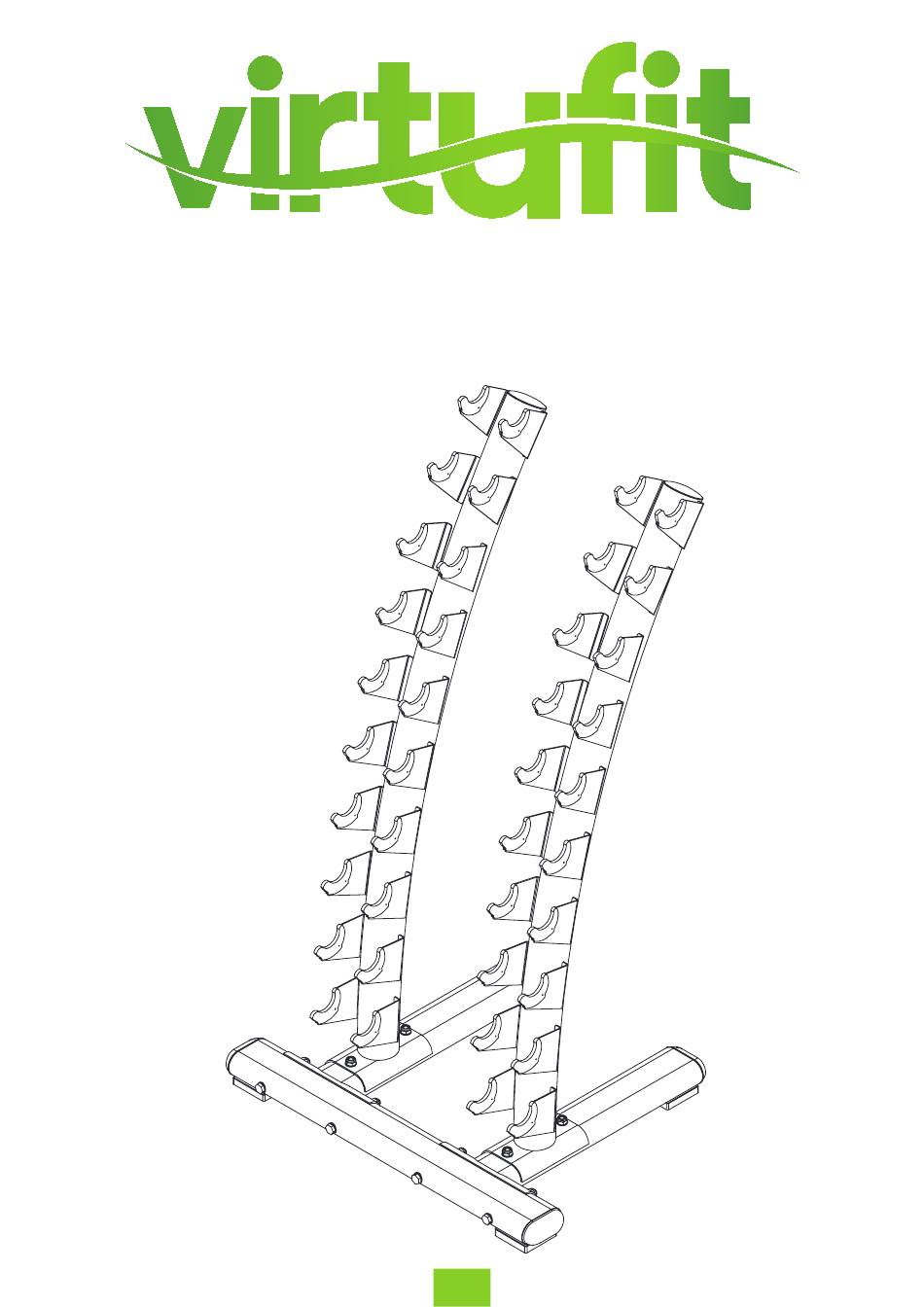

Page 1: User Manual
Upright Dumbbell Rack User manual VirtuFit Upright Dumbbell Rack... - Page 2 M10 washers (13) and four M10 nylon nuts (12). Attach the two rear feet (2) to the front base (1), using four M10X120 mm hexagon bolts (9), eight M10 locking rings(14) and four M10 nylon nuts (12). VirtuFit Upright Dumbbell Rack...
- Page 3 EXPLODED DRAWING VirtuFit Upright Dumbbell Rack...
- Page 4 Upright Dumbbell Support 50X100 mm Oval End Plug 76 mm Round End Plug Pedestal Left Dumbbell Support Right Dumbbell Support Plastic Finish M10X120 Hex Bolt M10X65 Hex Bolt M6X20 Bolt M10 Nylon Nut M10 Washer M10 Spring Washer VirtuFit Upright Dumbbell Rack...
