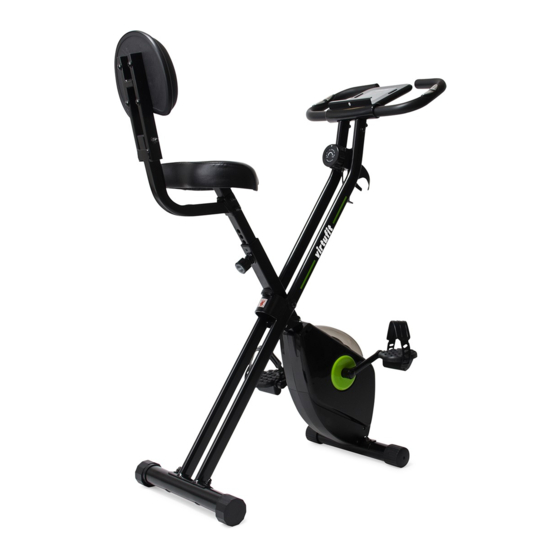

- Page 1 iConsole Folding Bike with Backrest and Bottle Cage User manual...
-
Page 2: Table Of Contents
6 - 8 ASSEMBLY INSTRUCTIONS LEVELING THE BIKE AND RESISTANCE FOLDING INSTRUCTIONS 11 - 12 MAINTENANCE TROUBLE SHOOTING 14 - 15 CONTROL PANEL EXPLODED DRAWING 18 - 19 PARTS LIST TRAINING INSTRUCTIONS VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 3: Safety Instructions
– Before using the equipment, check that the nuts and bolts are securely tightened. – The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 4: Safety Instructions
Maintenance assembly and repair work not carried out by an official dealer. • In the event of improper use, neglect and / or poor maintenance. • Failure to maintain the fitness equipment in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 5: Checklist
XX 4 4 VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 6: Assembly Instructions
In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Assemble Rear & Front Stabilizer • Assemble Pedals (L / R). VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... - Page 7 Support Tube (6). To get the ideal seat height you must adhere to the following guideline; the highest pedal should be near your knee and the saddle should protrude just above your waist. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 3 • Assemble Handlebar & Exercise Monitor. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 9: Leveling The Bike And Resistance
You should begin your “Exercise Period” at the resistance level and speed to suit your needs. Remember to start out slow and easy, and work your way up to the fitness level you desire. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 10: Folding Instructions
Als u de op kunt u de borgpin ( Using the Locking Pin (3) to fold and unfold the bike. When in use, the Locking Pin (3) is in Position A. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 11: Maintenance
Inspect all bolts and nuts in connection with moving parts of the device, tighten as required. • Check the mobility of moving parts and components of the use equipment, silicone spray if necessary. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 12: Maintenance
1. If you see an improper display on the monitor, please replace the batteries to have a good result. 2. Please use 2pcs of 1.5v AA batteries as a power supply. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 13: Trouble Shooting
• When the display show Drawing D, it means the batteries need to be changed. • If there is no signal when you pedal, please check if the cable is well connected. Afbeelding A Afbeelding B Afbeelding C Afbeelding D VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 14: Control Panel
Automatically counts the total distance of all training. 0 - 9999 (KM). CALORIES Burned calories during your exercise. 0.0 - 999.9 (cal). PULSE Heart rate during your exercise. 30 - 230 (beats per minute). VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 15: Control Panel
2. With any signal been transmitted into the monitor, the value of TMR, DST, and CAL will start to count up. 4. Without any signal been transmitted into the monitor for 4 minutes, the monitor will enter to SLEEP mode. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... - Page 16 5. When the two devices are connected, the computer automatically turns off and you can use the folding bike through your phone. If you close the app and disconnect it, the computer will restart. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage...
-
Page 17: Exploded Drawing
EXPLODED DRAWING VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 18: Parts List
Nut M10*1.25 Seat adjustment knob Curved washer M6 Adjustable hex and cap Flat washer M6 End cap Flat washer Pedal (R & L) Sensor wire Chain cover (R & L) Spring washer VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 19: Parts List
Handlebar end cap Water bottle holder Nut M10*1 Screw M5*10 Locknut M6 Wire plug Carriage bolt Flat washer Screw Obling end cap Square end cap Flat washer Allen bolt Backrest support VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... -
Page 20: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit iConsole Folding Bike with Backrest and Bottle Cage... - Page 21 For questions or missing parts please contact your dealer.
