LION SERIES
SWITCHING POWER
PROFESSIONAL AMPLIFIER
LION 2-1500
Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1
F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Montarbo LION Series
Summary of Contents for Montarbo LION Series

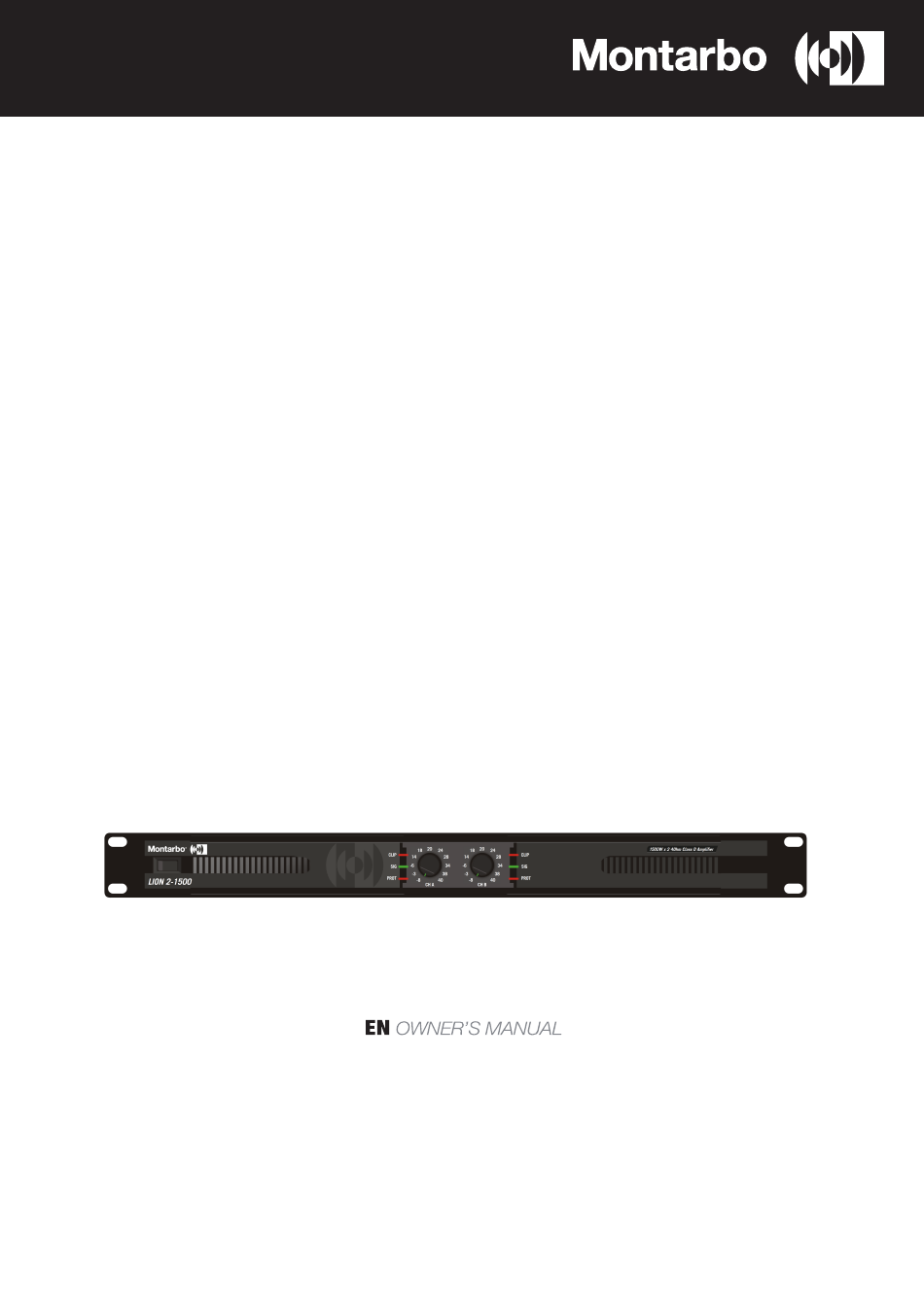

- Page 1 LION 2-1500 Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
-
Page 2: Lion
LION SERIES Important Safety Instructions - 2 -... -
Page 3: Table Of Contents
LION SERIES Index 1. INTRODUCTION 2. FEATURES 3. CONTROL ELEMENT 4. APPLICATIONS 5. WIRING CONNECTIONS 6. BLOCK DIAGRAM 7. TECHNICAL SPECIFICATIONS - 3 -... -
Page 4: Introduction
LION SERIES Introduction The LION 2-1500 switching power professional Amplifier is designed for professional use on stage. The high-quality components and the carefully designed circuits ensure excellent audio performance and an extremely linear frequency response. In fact, the switching technology offers, together with an increased efficiency and a better control of heat dissipation than conventional power supply systems, a drastic reduction of dimensions and weight, for easier transportation and installation. -
Page 5: Control Element

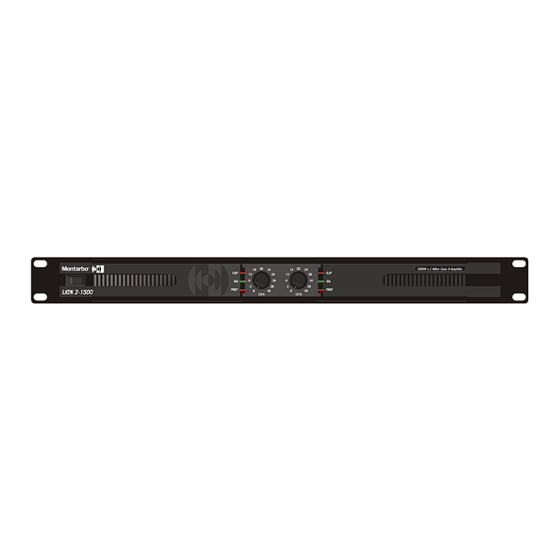

LION SERIES Control Element FRONT PANEL 1- Power Switch It switches ON/OFF the unit main power. 2- Power LED The Power LED lights up when the amplifier is powered on. 3- Level Control These volume controls adjust the volume level. -
Page 6: Rear Panel
LION SERIES Control Element REAR PANEL 1- Channel A Link out 2- Channel A XLR/TRS Input This XLR/TRS jack will accept any balanced or unbalanced low impedance line level source by means of a three-pin XLR/TRS plug. The wiring for the plug is as follows: Pin1(Sleeve)=Ground, Pin2(TIP)=Signal+, Pin3(Ring)=Signal-. - Page 7 LION SERIES Control Element Mode 5: NC - Not used Mode 6: 70V-Stereo CHA and CHB are stereo 70V line output, the min load is 4Ω. Mode 7: NC - Not used Mode 8: NC - Not used Mode 9: Auto-standby If the switch is to on, and no signal input or signal input peak less than -20dB after 20 minutes is detected, LION 2-1500 will go to standby (ERP Standards).
-
Page 8: Applications
LION SERIES Applications Stereo Operation The LION 2-1500 Amplifier can be used in the stereo mode as two separate 1500 watt units, each capable of driving loads down to 4 ohms. Each channel operates independently and has its own input... -
Page 9: Wiring Connections
LION SERIES Wiring Connections Ring=Right Signal Sleeve Ring Strain Clamp Tip=Left Signal Sleeve=Ground/Screen Use for Headphone 1/4" Stereo (TRS) Jack Plug Sleeve Tip=Signal Strain Clamp Sleeve=Ground/Screen Use for Mono Line In, Mono 1/4"Jack Plugs 1/4" Mono (TS) Jack Plug Ring=Return Signal... - Page 10 LION SERIES Wiring Connections Ring=Return Signal (Connected together) To Channel Insert Sleeve=Ground/Screen Tip=Signal To Tape or FX Input Sleeve=Ground/Screen 'Tapped' Connection Direct Output Lead (Enables the Insert to be used as a Direct Output while maintaining the channel signal flow)
-
Page 11: Block Diagram
LION SERIES Block Diagram - 11 -... -
Page 12: Technical Specifications
LION SERIES Technical Specifications Power Specifications (tolerance +/-5%) 2 ohms (EIAJ) 2800W x 2 Stereo Mode 4 ohms (RMS) (Both Channels Drive) 1500W x 2 8 ohms (RMS) 900W x 2 Electrical Specification Input Sensitivity (Limit Off) 0.9-1.1V (0+/-1dBv) 20k ohms balanced or... - Page 13 LION SERIES Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
