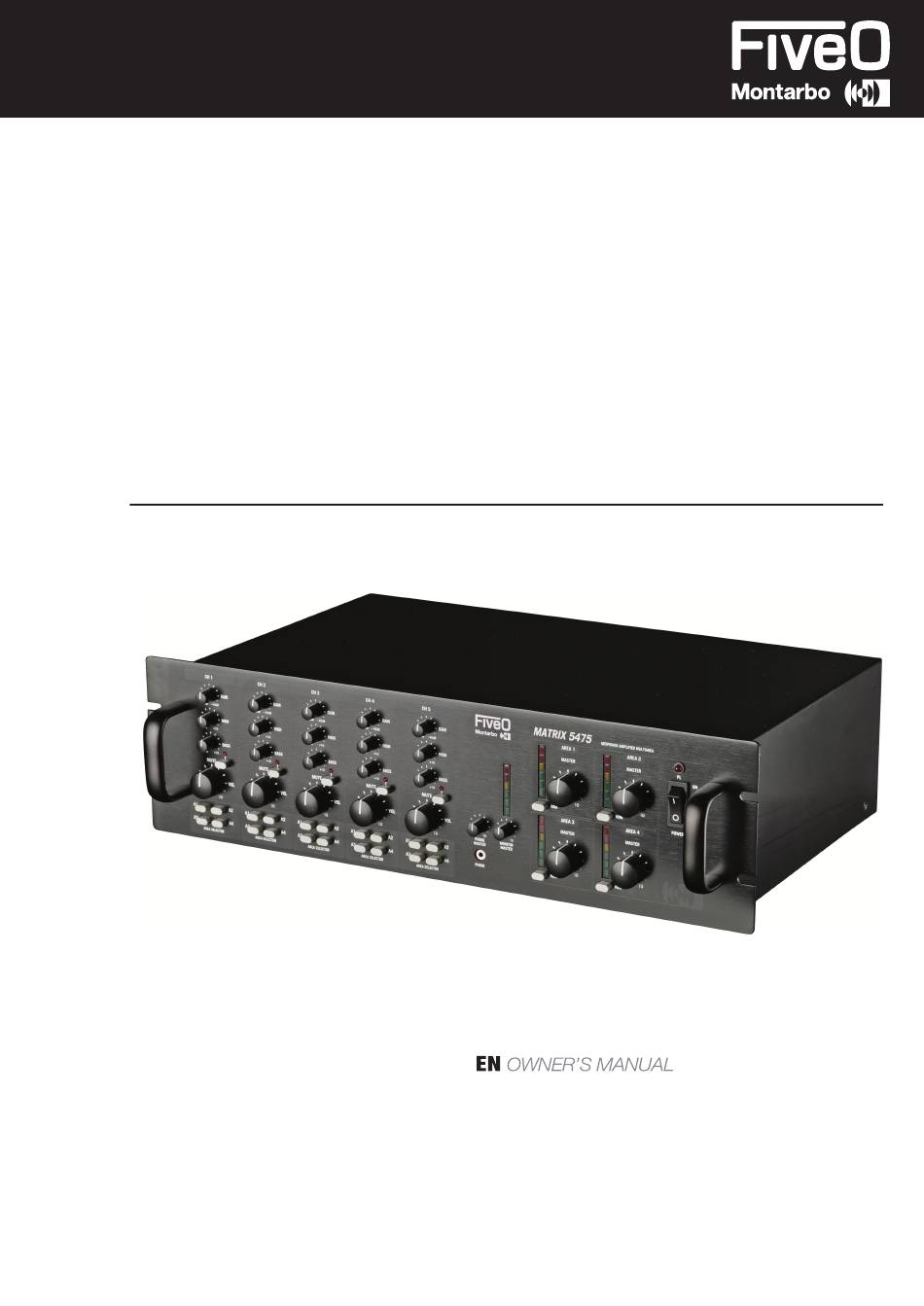

Page 1
MIXER PREAMPLIFIER Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
Page 2
MATRIX5475 Important Safety Instructions - 2 -...
Page 3
MATRIX5475 Table of Contents 1. CONTROL ELEMENT 2. INSTALLATION 3. CONNECTION DESCRIPTION 4. TROUBLE SHOOTING - 3 -...
Page 4
MATRIX5475 Control Element The Front panel 1. Gain knob this knob controls input gain. Turn the knob clockwise, then the input increases. Turn the knob counter-clockwise, then the input decreases. 2. High knob This is the treble control. You can use it to get rid of high frequency noises or to boost the sound of cymbals or the high harmonics of the human voice.
Page 5
MATRIX5475 Control Element 12. LED VU-meter This stereo 6 segment LED-meter indicates the level of the overall output signal. 13. MONITOR selector Push MONITOR button down, then it connects the signal from amplifier 1 to monitor volume. Release the button, then it cuts off the signal connection to monitor volume.
Page 6
MATRIX5475 Control Element 22. "Priority" Terminal. When these terminals are short-circuit (i.e. By means of using an electrical switch), the audio signals coming from "CH2","CH3","CH4", "CH5", are attenuated; when the short-circuit are removed all the signals appear again. 23. Input "AUX Paging" The terminals input lets you connect to an auxiliary signal .
Page 7
MATRIX5475 Control Element Installation INSTALLATION NOTES At all times, the amplifier has to be operated under appropriate conditions. This includes that the operation location provided sufficient ventilation and the device can not be exposed to direct sunlight or the direct radiation or reflection from any heat source.
Page 9
MATRIX5475 Specification MATRIX5475 RMS: 40Wx4; Peak output: 90Wx4 AREA AREA AREA - 9 -...
Page 10
MATRIX5475 Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
