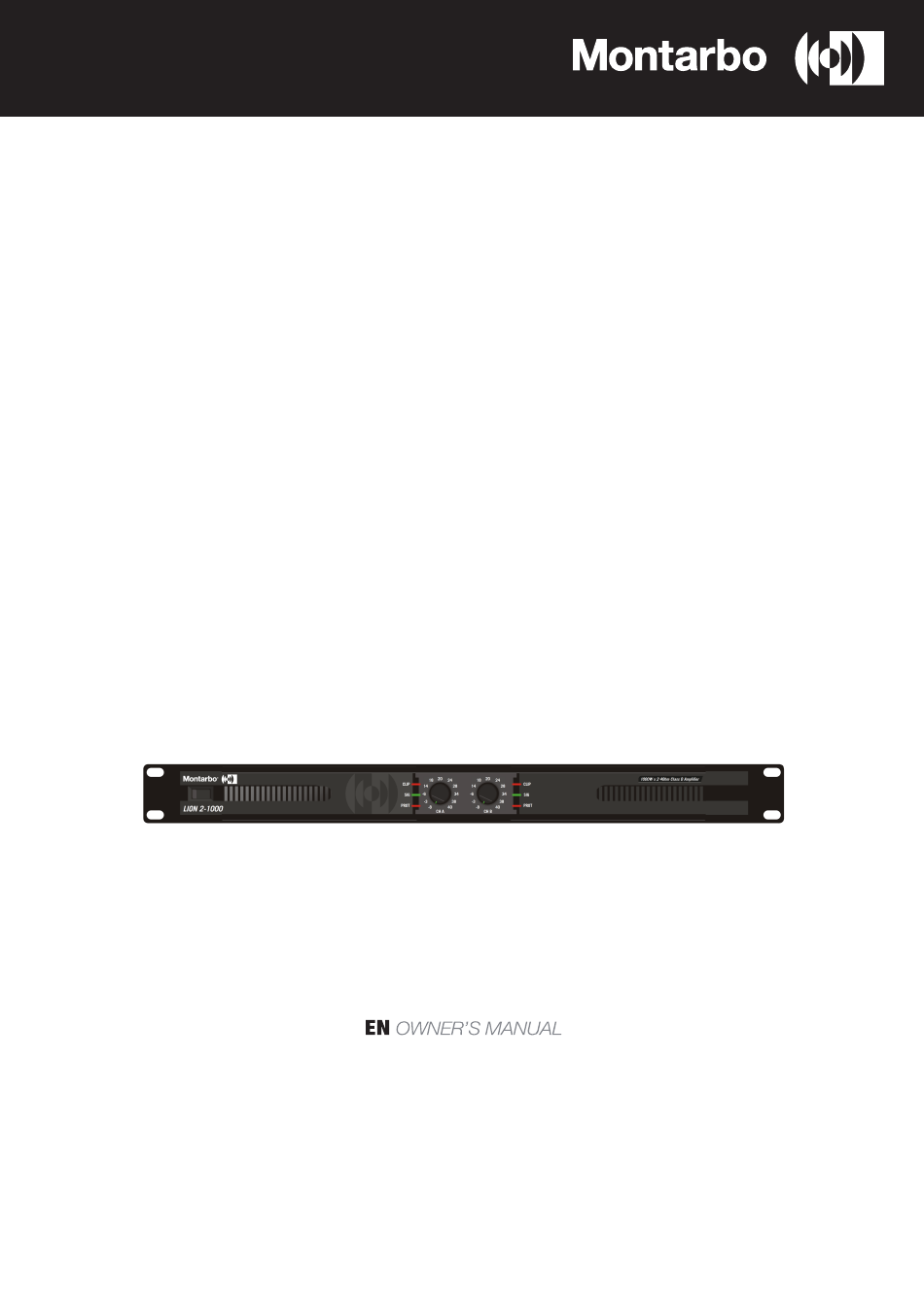

- Page 1 LION 2-1000 Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
- Page 2 LION SERIES Important Safety Instructions - 2 -...
-
Page 3: Table Of Contents
LION SERIES Index 1. INTRODUCTION 2. FEATURES 3. CONTROL ELEMENT 4. APPLICATIONS 5. WIRING CONNECTIONS 6. BLOCK DIAGRAM 7. TECHNICAL SPECIFICATIONS - 3 -... -
Page 4: Introduction
This Amplifier guarantees total reliability and a trouble-free use even in the most demanding conditions. We believe the LION 2-1000 switching power professional amplifier will provide a perfect performance, what you get is unprecedented performance at an incredibly attractive price. -
Page 5: Control Element

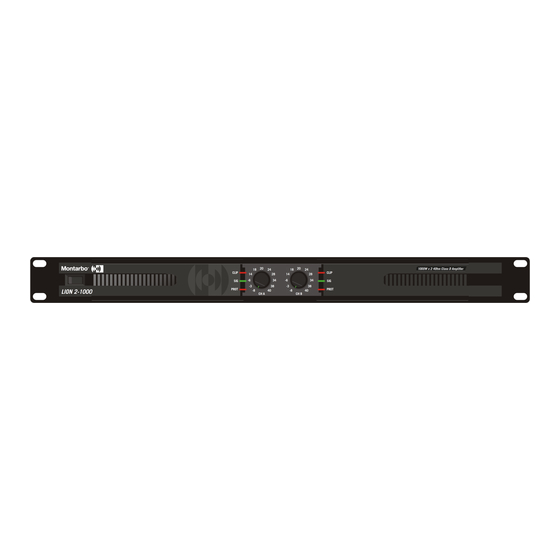

LION SERIES Control Element FRONT PANEL 1- Power Switch It switches ON/OFF the unit main power. 2- Power LED The Power LED lights up when the amplifier is powered on. 3- Level Control These volume controls adjust the volume level. 4- Protection LED In normal operation, the LED will not light up;... - Page 6 LION SERIES Control Element REAR PANEL 1- Channel A Link out 2- Channel A XLR/TRS Input This XLR/TRS jack will accept any balanced or unbalanced low impedance line level source by means of a three-pin XLR/TRS plug. The wiring for the plug is as follows: Pin1(Sleeve)=Ground, Pin2(TIP)=Signal+, Pin3(Ring)=Signal-.
- Page 7 LION SERIES Control Element Mode 5: CHA/CHB sub-Bridged CHA/CHB are Bridged,input the signal to CHA, output signal is Bridged, X-OVER FREQ CHA is available. Mode 6: 70V-Stereo CHA and CHB are stereo 70V line output, the min load is 4Ω. Mode 7: 100V-Bridged CHA and CHB are Bridged, input the signal to CHA, output signal is 100V Bridged, the min load is 4Ω.
-
Page 8: Applications
Applications Stereo Operation The LION 2-1000 Amplifier can be used in the stereo mode as two separate 1000 watt units, each capable of driving loads down to 4 ohms. Each channel operates independently and has its own input connectors, sensitivity level controls, signal indicator LEDs, automatic limiter, fault protection circuitry, power amp, and speaker outputs. - Page 9 LION SERIES Applications Mono Bridge Operation The two internal power amplifiers (CHA and CHB) can be bridged together to form a single, higher powered amp. This is especially useful when using the amplifier to power a subwoofer. In the mono mode, the amplifier uses the Channel A input jacks and sensitivity control (Channel B's are disabled).
- Page 10 LION SERIES Applications Patching two bridge mono mode system Two bridge mono amplifiers can be patched together (operated in mono mode) with connecting signal cable between their input jacks. The signal smart switch must be set to the bridge position. SWITCH SET TO BRIDGE 8 OHMS SUBWOOFER GRAPHIC EQ...
- Page 11 LION SERIES Applications 70V-Stereo Operation SWITCH SET TO 70V-Stereo 1000W 1000W 100V-Bridged Operation SWITCH SET TO 100V-Bridged 100V 1000W - 11 -...
-
Page 12: Wiring Connections
LION SERIES Wiring Connections Ring=Right Signal Sleeve Ring Strain Clamp Tip=Left Signal Sleeve=Ground/Screen Use for Headphone 1/4" Stereo (TRS) Jack Plug Sleeve Tip=Signal Strain Clamp Sleeve=Ground/Screen Use for Mono Line In, Mono 1/4"Jack Plugs 1/4" Mono (TS) Jack Plug Ring=Return Signal Sleeve Ring Strain Clamp... - Page 13 LION SERIES Wiring Connections Ring=Return Signal (Connected together) To Channel Insert Sleeve=Ground/Screen Tip=Signal To Tape or FX Input Sleeve=Ground/Screen 'Tapped' Connection Direct Output Lead (Enables the Insert to be used as a Direct Output while maintaining the channel signal flow) To Processor Input Sleeve=Ground/Screen Tip=Send Signal...
-
Page 14: Block Diagram
LION SERIES Block Diagram - 14 -... -
Page 15: Technical Specifications
LION SERIES Technical Specifications Power Specifications(tolerance +/-5%) LION 2-1000 2 ohms (EIAJ) 2000W x 2 Stereo Mode 4 ohms (RMS) (Both Channels Drive) 900W x 2 8 ohms (RMS) 600W x 2 8 ohms (RMS) 1800W Bridge Mono Mode 4 ohms (EIAJ) - Page 16 LION SERIES Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1 F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA...
