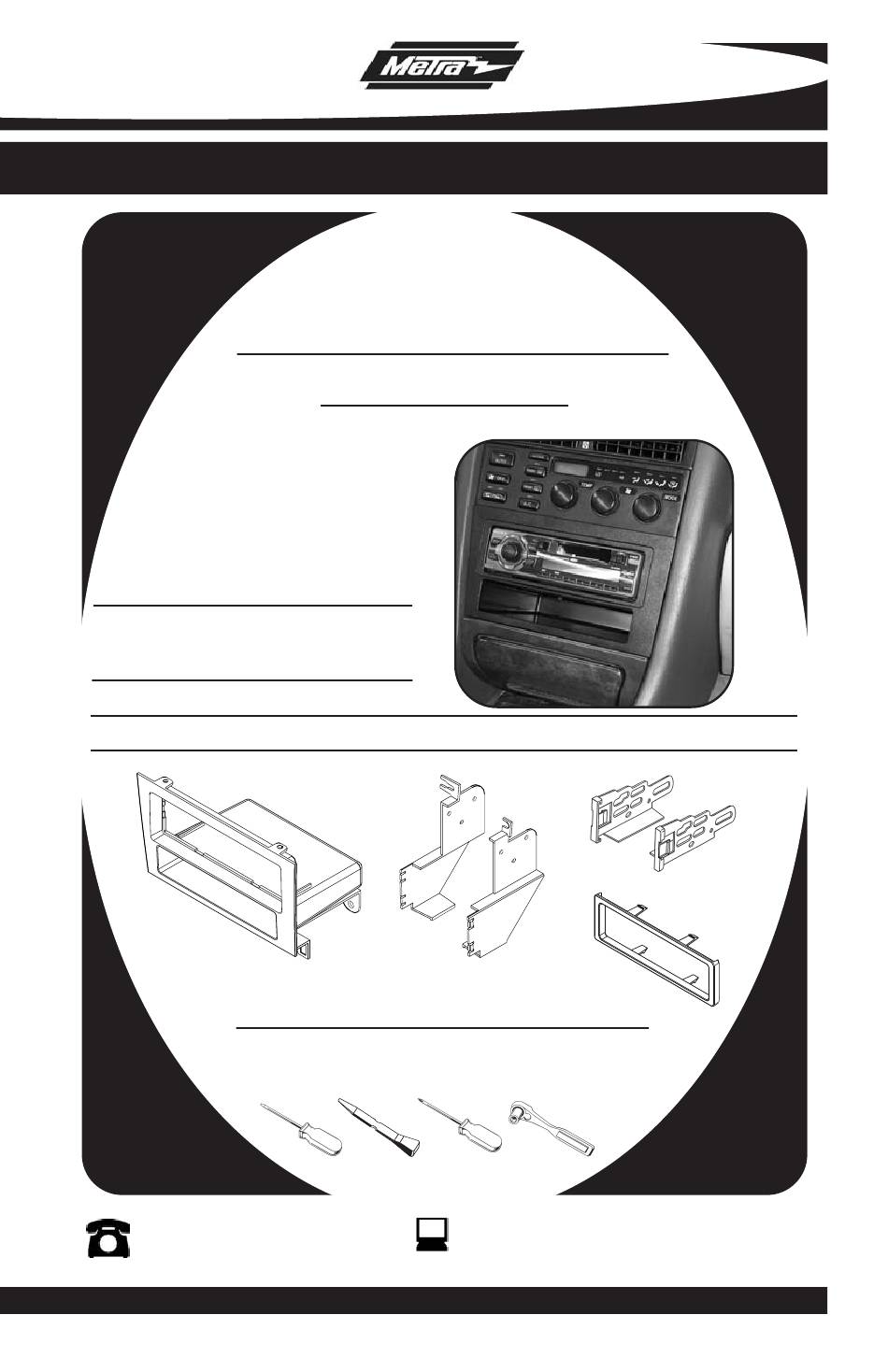

INSTALLATION INSTRUCTIONS FOR PART 99-8154
APPLICATIONS
LEXUS GS SERIES
1993-1997
99-8154
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) Trim Plate
C
A
B
D
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-8154
Summary of Contents for Metra Electronics 99-8154
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8154 APPLICATIONS LEXUS GS SERIES 1993-1997 99-8154 KIT FEATURES • DIN Mount Radio Provision with Pocket • ISO Mount Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) Trim Plate...
-
Page 2: Table Of Contents
99-8154 T ABLE OF CONTENTS Dash Disassembly - Lexus GS Series 1993-1997 ......1 Kit Preparation . -
Page 3: Lexus Gs Series 1993-1997
99-8154 DASH DISASSEMBL Y LEXUS GS SERIES 1993-1997 isconnect the negative battery ter- minal to prevent an accidental short circuit. Using a panel removal tool gently pry out on the top of the a/c vent assem- bly (including clock) and remove. -
Page 4: Kit Preparation
Slide the corresponding bracket onto the 99-8154 until side clips engage. (Figure A) Slide the factory A/C controls into the 99-8154 aligning holes in top of kit with alignment pins in bottom of A/C control and secure with factory hard- ware. (Figure B) -
Page 5: Din Mount Radio Provision With Pocket
99-8154 KIT ASSEMBL Y LEXUS GS SERIES 1993-1997 DIN MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the radio housing/bracket/A/C control assembly and secure by bending the metal locking tabs outward. -
Page 6: Iso Mount Radio Provision With Pocket
99-8154 KIT ASSEMBL Y LEXUS GS SERIES 1993-1997 ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) -
Page 7: Final Assembly
99-8154 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 8 99-8154 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 10/26/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST99-8154...
