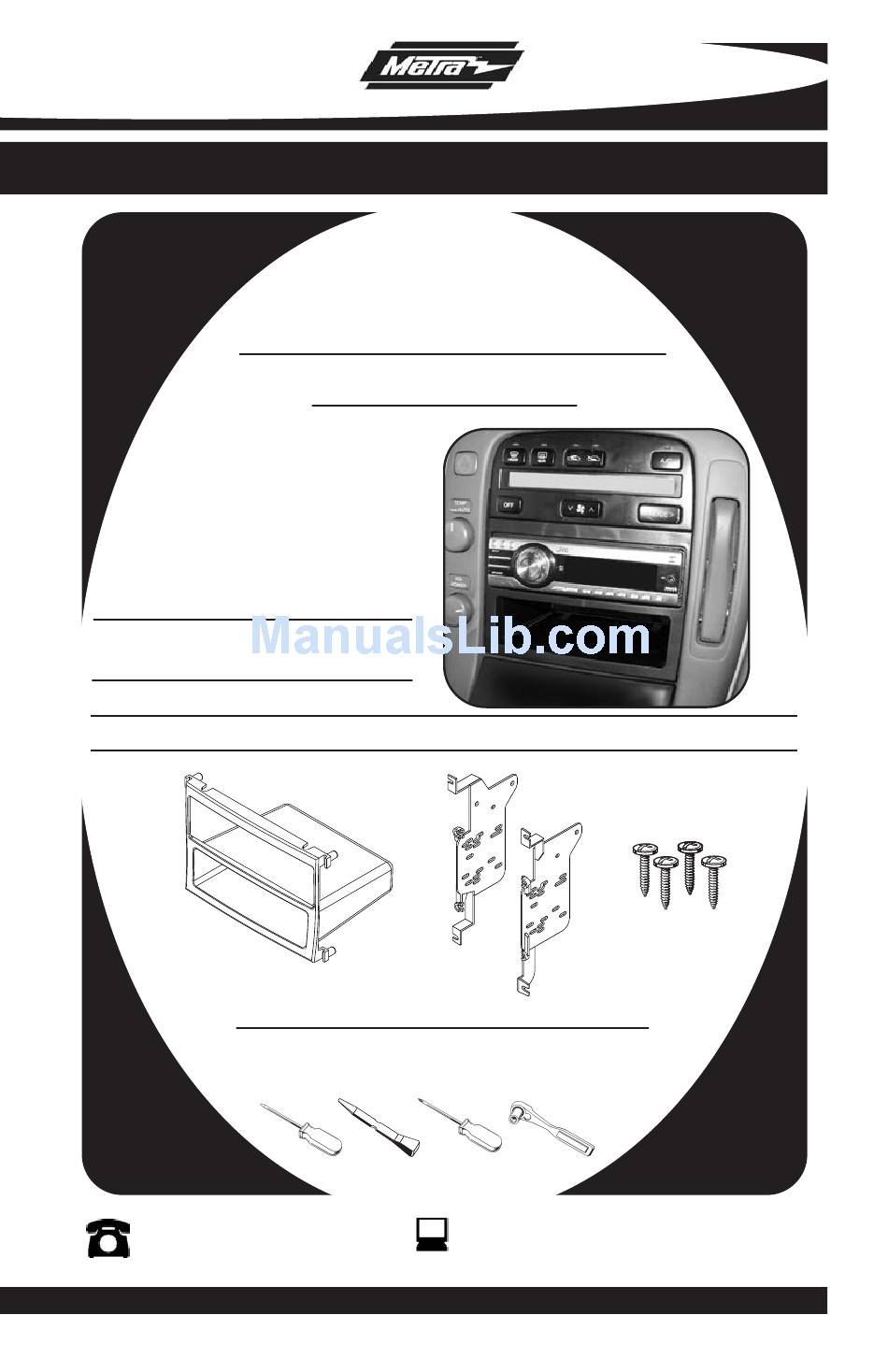

INSTALLATION INSTRUCTIONS FOR PART 99-8157B
APPLICATIONS
LEXUS SC SERIES
1992-2000
99-8157B
KIT FEATURES
• ISO Mount Radio Provision With Pocket
• Painted Black To Match Factory Dash
KIT COMPONENTS
A) Radio Housing With Pocket • B) Housing Brackets • C) (4) #8 X 3/8" Phillips Screws
A
B
C
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2008 METRA ELECTRONICS CORPORATION
