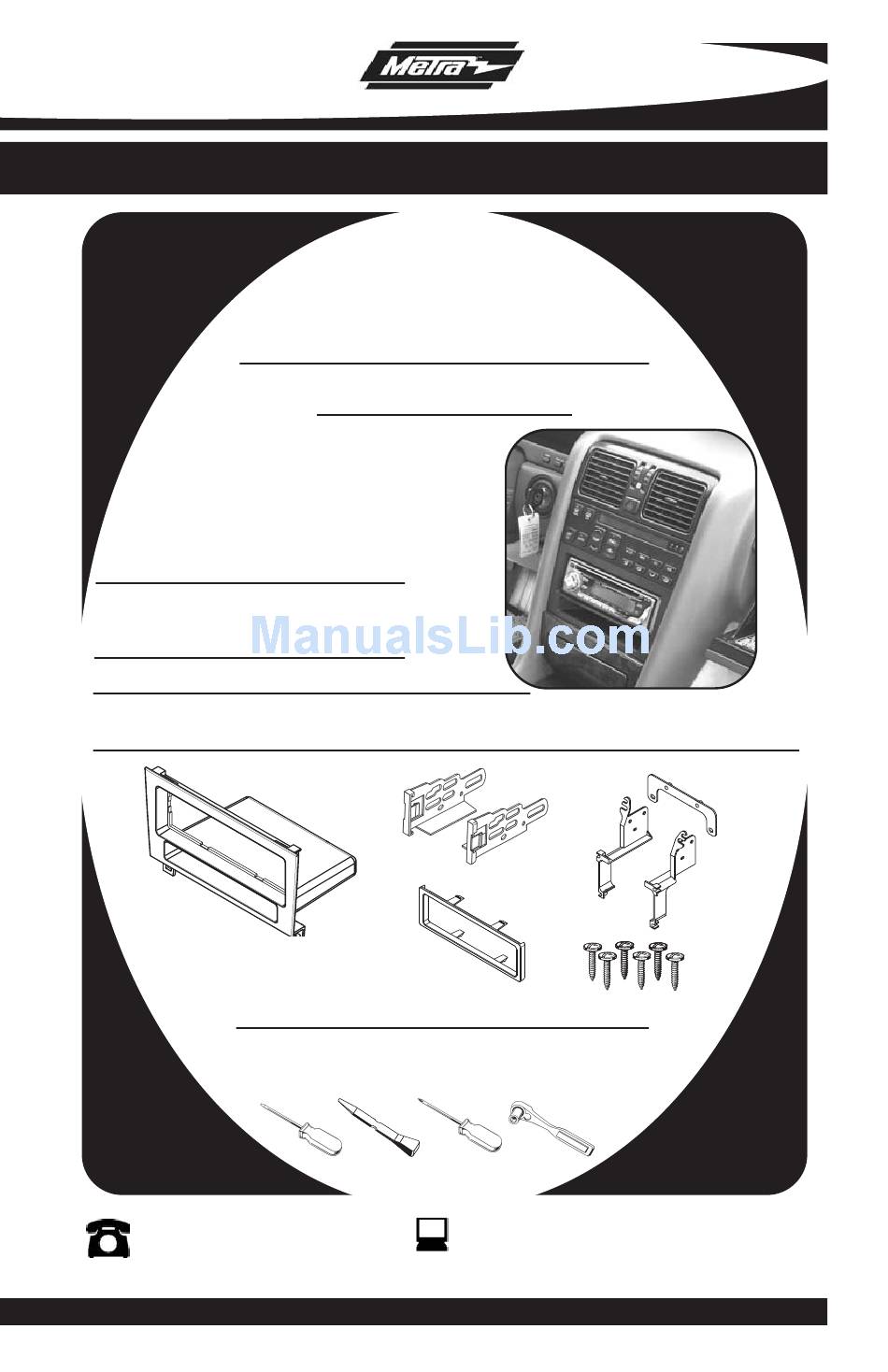

INSTALLATION INSTRUCTIONS FOR PART 99-8156
LEXUS LS SERIES
99-8156
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Radio Housing Brackets • D) Trim Plate
E) (6) #8 Phillips Screws
A
1-800-221-0932
© COPYRIGHT 2007 METRA ELECTRONICS CORPORATION
APPLICATIONS
1990-1994
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
B
D
E
www.metraonline.com
C
Advertisement
Related Manuals for Metra Electronics LEXUS 99-8156
Summary of Contents for Metra Electronics LEXUS 99-8156
- Page 1 A) Radio Housing • B) ISO Brackets • C) Radio Housing Brackets • D) Trim Plate E) (6) #8 Phillips Screws Small Flat Blade Screwdriver/ Panel Removal Tool • Phillips Screwdriver • Socket Set 1-800-221-0932 © COPYRIGHT 2007 METRA ELECTRONICS CORPORATION APPLICATIONS TOOLS REQUIRED: www.metraonline.com...
-
Page 2: Table Of Contents
T ABLE OF CONTENTS Dash Disassembly - Lexus LS Series 1990-1994 ......1 Kit Preparation . -
Page 3: Lexus Ls Series 1990-1994
LEXUS LS SERIES 1990-1994 isconnect the negative battery ter- minal to prevent an accidental short circuit. Carefully pry out and remove ashtray assembly below radio. (Figure A) Using a panel removal tool or small flat blade screwdriver gently pry out on the top of the A/C vent assembly and remove. -
Page 4: Kit Preparation
LEXUS LS SERIES 1990-1994 DIN MOUNT RADIO PROVISION WITH POCKET ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Attach the corresponding radio hous- ing bracket to the radio housing using the included Phillips screws. (Figure A) Slide the factory climate control into the assembled radio housing brack- ets/radio housing assembly and... - Page 5 LEXUS LS SERIES 1990-1994 DIN MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket radio into the cage until it snaps in place.
- Page 6 LEXUS LS SERIES 1990-1994 SO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until the side clips engage.
-
Page 7: Final Assembly
FINAL ASSEMBL Y Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. - Page 8 99-8156 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 12/05/07 © COPYRIGHT 2007 METRA ELECTRONICS CORPORATION INST99-8156...
