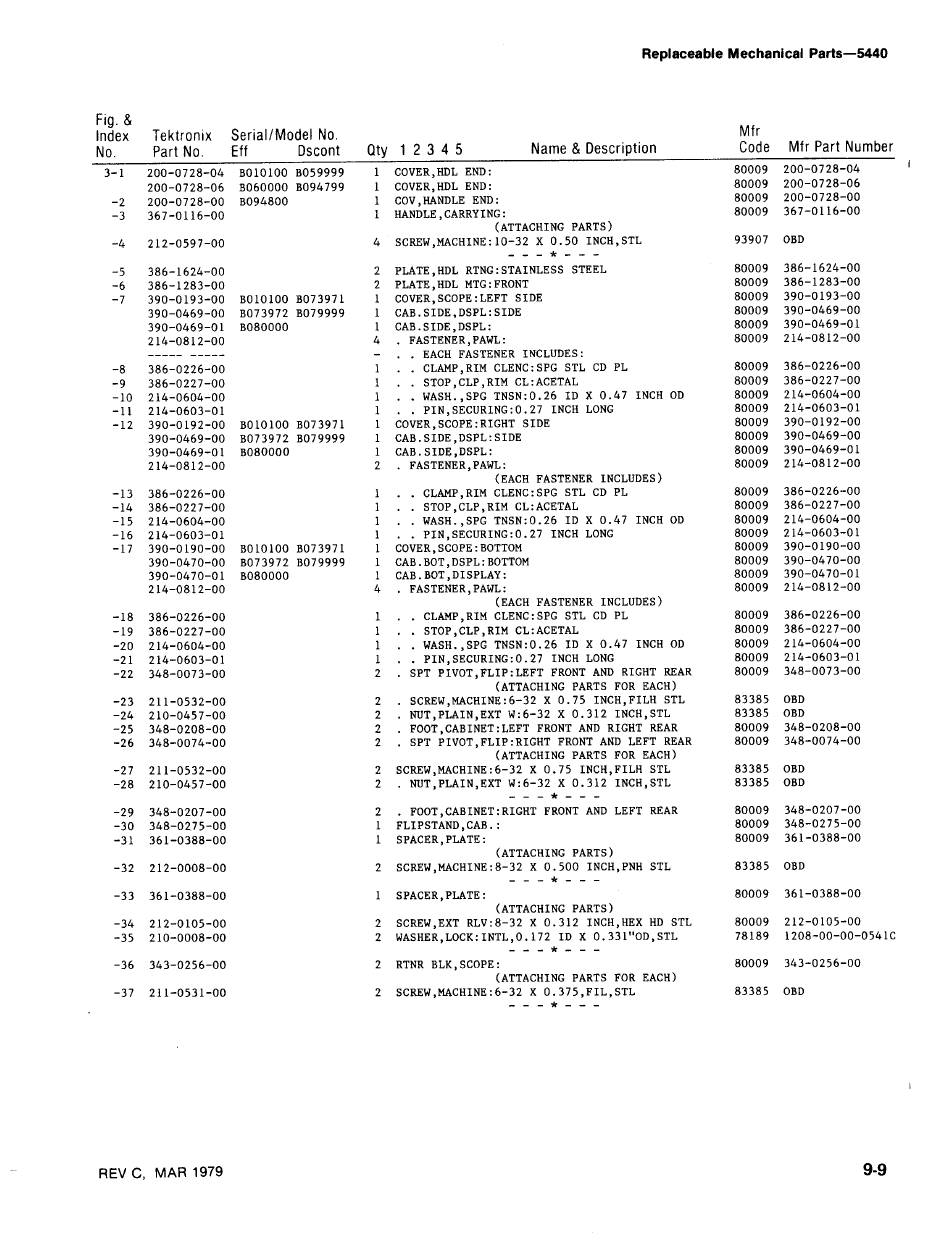

Tektronix 5440 Instruction Manual page 158

Fig . &
I nd ex Te k tr o n ix Serial/ M odel No.
Mfr
No. P
art No.
E
ff
Dsco n t Qty 1 2 3 4 5
Name & Descri ption
Co de Mfr
P
art Nu m ber
3-1 200-0728-04
010100 Β 059999 1 COVER,HDL END :
80009 200-0728-04
200-0728-06
Β060000 Β 094799 1 COVER,HDL END :
80009
200-0728-06
-2 200-0728-00 Β094800
1
COV,HANDLΣ END :
80009 200-0728-00
-3
367-0116-00 1
H ANDLE,CARRYING :
80009 367-0116-00
(ATTACHING PARTS)
-4 212-0597-00
4
SCREW,MACHINE :10-32 Χ 0 .50 INCH,STL 93907
OBD
-5 386-1624-00
2
PLATE,HDL RTNG :STAINLESS STEEL 80009
386-1624-00
-6 386-1283-00
2
PLATE,HDL MTG :FRONT
80009 386-1283-00
-7 390-0193-00 Β010100 Β073971 1
COVER,SCOPE :LEFT
S
IDE
80009 390-0193-00
390-0469-00 Β073972 Β079999
1 CAB .SIDE,DSPL :SIDE
80009 390-0469-00
390-0469-01 Β080000
1 CAB .SIDE,DSPL :
80009 390-0469-01
214-0812-00 4
. FASTENER,PAWL : 80009
214-0812-00
----- ----- -
. . EACH FASTENER INCLUDES :
-8 386-0226-00
1 . . CLAMP,RIM
C
LENC :SPG STL
C
D PL
80009 386-0226-00
-9 386-0227-00
1 . . STOP,CLP,RIM
C
L :ACETAL
80009 386-0227-00
-10 214-0604-00
1 . .
W ASH .,SPG TNSN :0 .26 ID Χ 0 .47 INCH
O
D 80009 214-0604-00
-11
214-0603-01 1 .
. PIN,SECURING :0 .27 INCH LONG
80009 214-0603-01
-12 390-0192-00 Β010100 Β073971 1
COVER,SCOPE :RIGHT
S
IDE
80009 390-0192-00
390-0469-00
Β073972 Β 079999 1 CAB .SIDE,DSPL :SIDE
80009 390-0469-00
390-0469-01
Β080000 1 CAB .SIDE,DSPL :
80009 390-0469-01
214-0812-00
2 .
F
ASTENER,PAWL :
80009 214-0812-00
(EACH FASTENER INCLUDES)
-13 386-0226-00 1 . . CLAMP,RIM
C LENC :SPG STL
C
D PL 80009 386-0226-00
-14 386-0227-00 1
. . STOP,CLP,RIM
C
L :ACETAL 80009
386-0227-00
-15 214-0604-00
1 . . WASH .,SPG TNSN :0 .26 ID Χ 0 .47 INCH
O
D 80009
214-0604-00
-16 214-0603-01 1
. . PIN,SECURING :0 .27 INCH LONG 80009 214-0603-01
-17 390-0190-00 Β010100 Β073971 1
COV ER,SCOPE :BOTTOM 80009
390-0190-00
390-0470-00
Β073972 Β 079999 1 CAB .BOT,DSPL :BOTTOM
80009 390-0470-00
390-0470-01 Β080000 1
CAB .BOT,DISPLAY : 80009 390-0470-01
214-0812-00 4 . FASTENER,PAWL :
80009 214-0812-00
(EACH FASTENER INCLUDES)
-18 386-0226-00
1 . . CLAMP,RIM
C
LENC :SPG STL
C
D PL 80009
386-0226-00
-19 386-0227-00 1 .
. STOP,CLP,RIM
C
L :ACETAL
80009 386-0227-00
-20 214-0604-00
1 . . WASH .,SPG TNSN :0 .26 ID Χ 0 .47 INCH
O
D 80009
214-0604-00
-21 214-0603-01
1 . . PIN,SECURING :0 .27 INCH LONG
80009 214-0603-01
-22 348-0073-00 2
. SPT PIVOT,FLIP :LEFT F RONT
A
ND RIGHT REAR 80009 348-0073-00
(ATTACHING PARTS
F
OR EACH)
-23 211-0532-00 2
. SCREW,MACHINE :6-32 Χ 0 .75 INCH,FILH
S
TL 83385
OBD
-24 210-0457-00
2 . ΝUΤ ,ΡLΑΙΝ , ΕΧΤ
W :6-32 Χ 0 .312 INCH,STL 83385 OBD
-25 348-0208-00 2 .
F OOT,CABINET :LEFT FRONT AND RIGHT REAR 80009 348-0208-00
-26 348-0074-00 2
. SPT PI VOT,FLIP :RIGHT FRONT
A
ND LEFT REAR 80009
348-0074-00
(ATTACHING PARTS
F
OR EACH)
-27 211-0532-00 2
SCREW,MACHINE :6-32 Χ 0 .75 INCH,FILH
S
TL 83385 OBD
-28 210-0457-00 2
. NUT,PLAIN,EXT W:6-32 Χ 0 .312 INCH,STL 83385 OBD
-29 348-0207-00
2 .
F OOT,CABINET :RIGHT FR ONT AND LEFT REAR 80009 348-0207-00
-30 348-0275-00 1 FLIPSTAND,CAB . :
80009 348-0275-00
-31 361-0388-00 1
SPACER,PLATE : 80009
361-0388-00
(ATTACHING
P
ARTS)
-32 212-0008-00
2
SCREW,MACHINE :8-32 Χ 0 .500 INCH,PNH
S
TL 83385 OBD
-33 361-0388-00 1
S PACER,PLATE : 80009 361-0388-00
(ATTACHING
P
ARTS)
-34 212-0105-00
2
SCREW,EXT RLV :8-32 Χ 0 .312 INCH,HEX HD
S
TL 80009 212-0105-00
-35
210-0008-00 2
WASHER,LOCK :INTL,0 .172 ID Χ 0 .331"OD,STL 78189 1208-00-00-0541C
-36 343-0256-00
2 RTNR BLK,SCOPE :
80009 343-0256-00
(ATTACHING PARTS
F
OR EACH)
-37 211-0531-00 2
SCREW ,MACHINE :6-32 Χ 0 .375,FIL,STL 83385 OBD
REV C,
M
A R 1979
Re placea ble M ec ha n ical
P
arts-5440
9-9
