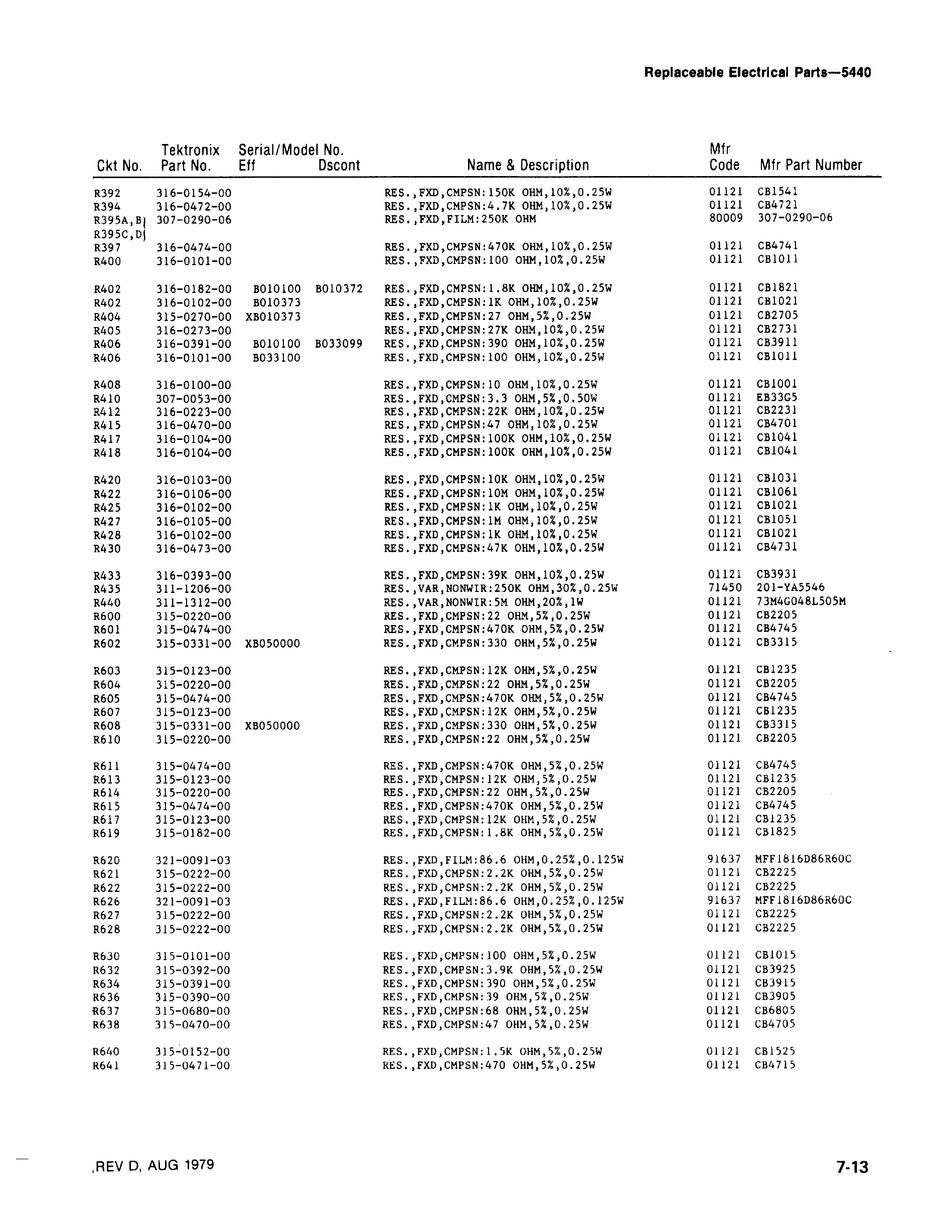

Tektronix 5440 Instruction Manual page 105

Replaceable
E
lect
r
ical
P
arts-5440
Te
k
t
r
onix Se
r
ial/
M
odel No . Mfr
C
k
t No .
P
a
r
t No .
E
ff Dscont
N
ame & Descri
p
tio
n
Code
M
fr
P
art
Nu
m
b
er
Α392 316-0154-00
RES .,FXD,CMPSN :150 K ΟΗΜ,10%,0 .25W 01121
C
B1541
R
394 316-0472-00
R
ES .,FXD,CMPSN :4 .7K ΟΗΜ,10%,0 .25W 01121
C B4721
R
395A,Bj 307-0290-06
RES .,FXD,FILM :250K OHM 80009 307-0290-06
R
395C,D
R397 316-0474-00
R ES .,FXD,CMPSN :470K ΟΗΜ ,10%,0 .25W 01121
C B4741
R
400 316-0101-00
RES .,FXD,CMPSN :100 ΟΗΜ ,10%,0 .25W
01121
C
B1011
Α402 316-0182-00 Β010100 Β010372 RES .,FXD,CMPSN :1 . 8K ΟΗΜ,10%,0 .25W
01121
C
B1821
R402 316-0102-00 Β010373
RES .,FXD,CMPSN :IK ΟΗΜ ,10%,0 .25W 01121
C
B1021
Α404 315-0270-00 ΧΒΟ 10373 RES .,FXD,CMPSN :27 OHM,5%,0 .25W
01121 CB2705
Α405 316-0273-00
RES .,FXD,CMPSN :27K ΟΗΜ ,10%,0 .25W 01121
C
B2731
R406 316-0391-00 Β010100
Β033099 RES .,FXD,CMPSN :390 ΟΗΜ ,10%,0 .25W 01121
C
B3911
R
406 316-0101-00
Β033100 RES .,FXD,CMPSN :100 οκΜ ,10%,0 .25ω 01121
C B1011
R408 316-0100-00 RES .,FXD,CMPSN :10 ΟΗΜ,10%,0 .25W
01121
C
B1001
R
410 307-0053-00
RES .,FXD,CMPSN :3 .3 ΟΗΜ ,5%,0 .50W 01121 EB33G5
R
412 316-0223-00 RES .,FXD,CMPSN :22K ΟΗΜ ,10%,0 .25W
01121
C
B2231
R415 316-0470-00
R ES .,FXD,CMPSN :47 ΟΗΜ,10%,0 .25W
01121
C
B4701
Α417 316-0104-00
RES .,FXD,CMPSN :IOOK ΟΗΜ ,10%,0 .25W 01121
C
B1041
Α418 316-0104-00 RES .,FXD,CMPSN :100K ΟΗΜ ,10%,0 .25W
01121
C
B1041
R
420 316-0103-00
RES .,FXD,CMPSN :IOK ΟΗΜ ,10%,0 .25W 01121 CB1031
R
422 316-0106-00
RES .,FXD,CMPSN :IOM ΟΗΜ ,10%,0 .25W
01121 CB1061
R
425
316-0102-00 RES .,FXD,CMPSN :1K ΟΗΜ,10%,0 .25W
01121
C
B1021
R
427 316-0105-00
RES .,FXD,CMPSN :1M ΟΗΜ,10%,0 .25W
01121 CB1051
Α428 316-0102-00
R
ES .,FXD,CMPSN :IK ΟΗΜ,10%,0 .25W
01121 CB1021
Α430 316-0473-00
R ES .,FXD,CMPSN :47K ΟΗΜ ,10%,0 .25W 01121
C B4731
R433 316-0393-00 RES .,FXD,CMPSN :39K ΟΗΜ ,10%,0 .25W
01121 CB3931
R435 311-1206-00
R ES ., VAR,NONWIR :250K ΟΗΜ,30%,0 .25W 71450 201-ΥΑ 5546
R440 311-1312-00 RES ., VAR,NONWIR :5M ΟΗΜ ,20%,1 W
01121 73M4GO4βL505M
R
600 315-0220-00 RES .,FXD,CMPSN :22 OHM,5%,0 .25W
01121
C
B2205
R601 315-0474-00
RES .,FXD,CMPSN :470K ΟΗΜ ,5%,0 .25W 01121
C
B4745
R602 315-0331-00 ΧΒ050000
RES .,FXD,CMPSN :330 OHM,5%,0 .25W 01121 C B3315
R603 315-0123-00 RES .,FXD,CMPSN :12K OHM,5%,0 .25W
01121 CB1235
R
604 315-0220-00 RES .,FXD,CMPSN :22 OHM,5%,0 .25W
01121
C
B2205
Α605 315-0474-00
RES .,FXD,CMPSN :470K OHM,5%,0 .25W 01121
C
B4745
R607 315-0123-00
RES .,FΧD,CMPSN :12K OHM,5%,0 .25W 01121
C
B1235
R
608 315-0331-00 ΧΒ 050000 RES .,FXD,CMPSN :330 OHM,5%,0 .25W
01121
C
B3315
Α610 315-0220-00 RES .,FXD,CMPSN :22 OHM,5%,0 .25W
01121
C
B2205
Α611 315-0474-00 RES .,FXD,CMPSN :470 K OHM,5%,0 .25W
01121 CB4745
R613 315-0123-00
R ES .,FXD,CMPSN :12K OHM,5%,0 .25W 01121
C
B1235
R614 315-0220-00 RES .,FXD,CMPSN :22 OHM,5%,0 .25W
01121
C
B2205
R615 315-0474-00 RES .,FXD,CMPSN :470K OHM,5%,0 .25W
01121 CB4745
R
617
315-0123-00
R ES .,FXD,CMPSN :12 K OHM,5%,0 .25W 01121
C
B1235
R619 315-0182-00 RES .,FXD,CMPSN :1 .8K OHM,5%,0 .25W
01121 CB1825
R
620 321-0091-03
RES .,FXD,FILM :86 .6 ΟΗΜ ,0 .25%,0 .125W 91637
MFF1816D86R60C
R621 315-0222-00
RES .,FXD,CMPSN :2 .2K ΟΗΜ,5%,0 .25W 01121 CB2225
Α622 315-0222-00 RES .,FXD,CMPSN :2 .2K ΟΗΜ,5%,0 .25ω
01121 CB2225
Α626 321-0091-03
RES .,FXD,FILM :86 .6 ΟΗΜ ,0 .25%,0 .125W 91637 MFF1816D86R60C
R627 315-0222-00
RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121
C B2225
R
628 315-0222-00
RES .,FXD,CMPSN :2 .2K ΟΗΜ,5%,0 .25ω 01121
C
B2225
R
630 315-0101-00
RES .,FXD,CMPSN :100 OHM,5%,0 .25W 01121
C
B1015
Α632 315-0392-00
RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25W 01121
C
B3925
R634 315-0391-00
RES .,FXD,CMPSN :390 OHM,5%,0 .25W 01121 CB3915
R636 315-0390-00
κ
ES .,FXD,CMPSN :39 OHM,5%,0 .25W
01121
C
B3905
β637 315-0680-00 RES .,FXD,CMPSN :68 OHM,5%,0 .25W 01121 C B6805
Α638 315-0470-00
RES .,FXD,CMPSN :47 OHM,5%,0 .25W 01121 C B4705
R640 315-0152-00
RES .,FXD,CMPSN :1 .S K OHM,5%,0 .25W
01121
C B1525
R641 315-0471-00 RES .,FXD,CMPSN :470 OHM,5%,0 .25W
01121 C B4715
,REV D,
A
U G 1979 7- 1 3
