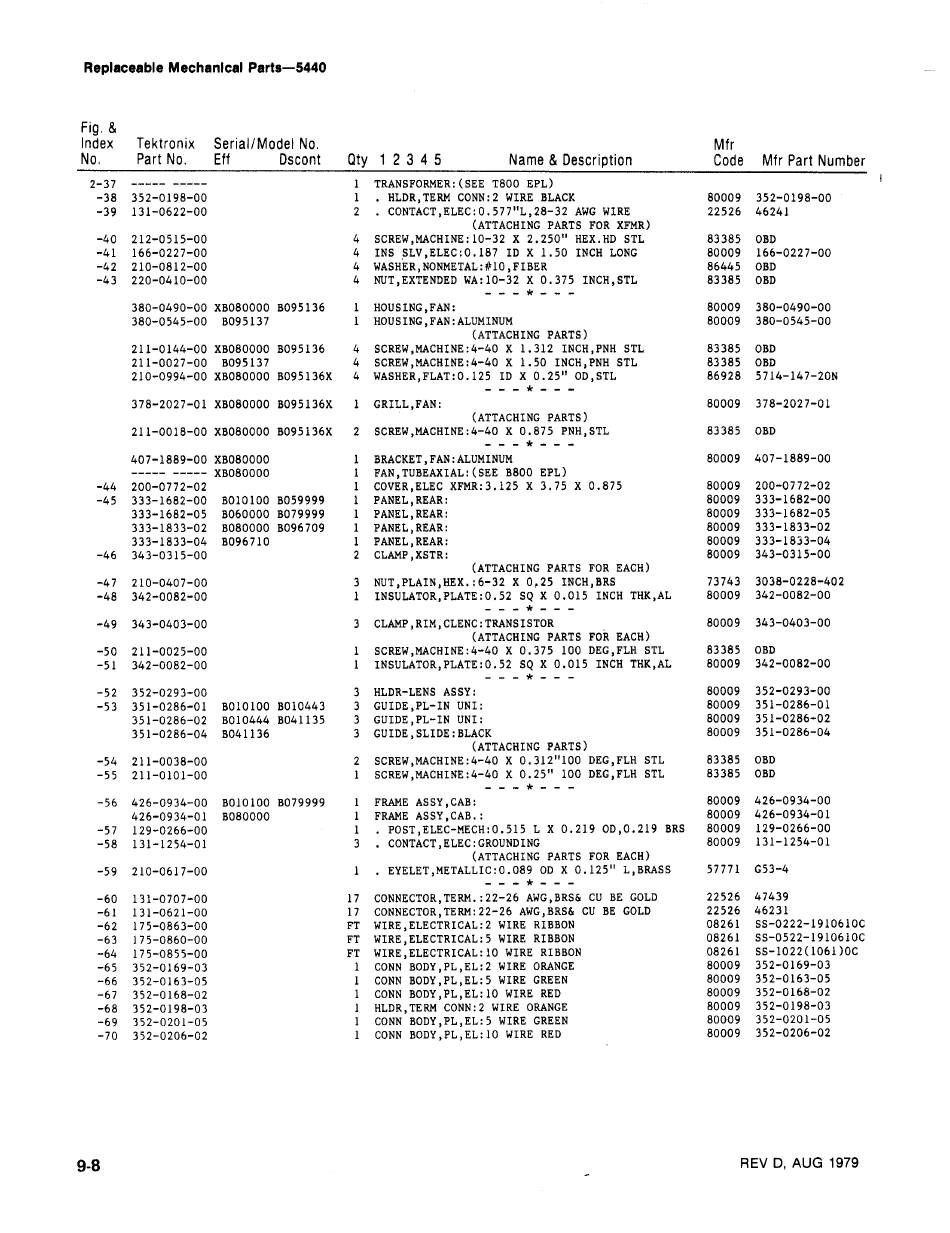

Tektronix 5440 Instruction Manual page 157

R
eplacea ble
M
ec h anical
P
arts-5440
F
ig . &
In d ex Te ktronix Serial/ M odel No .
M fr
No.
P
art No .
E
ff Dsco n t
q
ty 1 2 3 4 5
N ame & Descri p tio n Code M fr
P
art Nu mber
9- 8
2-37 ----- ----- 1 TRANSFORMER :(SEE Τ800 EPL)
-38 352-0198-00 1 . HLDR,TERM CONN :2 WIRE BLACK 80009 352-0198-00
-39 131-0622-00 2 . CONTACT,ELEC :0 .577"L,28-32
A
WG WIRE 22526 46241
(ATTACHING
P
ARTS
F
OR
X
FMR)
-40 212-0515-00 4
SCREW,MACHINE :10-32 Χ 2 .250" HEX .HD
S
TL
83385 OBD
-41 166-0227-00
4 INS SL V ,ELEC :0 .187 ID Χ 1 .50 INCH LONG
80009 166-0227-00
-42 210-0812-00 4 WASHER,NONMETAL :#10,FIBER 86445 OBD
-43 220-0410-00 4 NUT,EXTENDED WA :10-32 Χ 0 .375 INCH,STL 83385 OBD
380-0490-00 ΧΒ 080000 Β095136
1
H
OUSING,FAN : 80009 380-0490-00
380-0545-00 Β095137
1
H
OUSING,FAN :ALUMINUM 80009 380-0545-00
(ATTACHING
P
ARTS)
211-0144-00 ΧΒ 080000 Β095136 4 SCRE W ,MACHINE :4-40 Χ 1 .312 INCH,PNH
S
TL 83385
O
BD
211-0027-00 Β095137 4 SCRE W ,MACHINE :4-40 Χ 1 .50 INCH,PNH
S
TL 83385
O
BD
210-0994-00 ΧΒΟ80000 Β095136 Χ 4
W
ASHER,FLAT :0 .125 ID Χ 0 .25"
O
D,STL 86928 5714-147-20Ν
378-2027-01 ΧΒ 080000 Β095136 Χ 1
G RILL,FAN : 80009 378-2027-01
(ATTACHING
P
ARTS)
211-0018-00 ΧΒ 080000 Β095136 Χ 2 SCREW,MACHINE :4-40 Χ 0 .875 PNH,STL 83385
O
BD
407-1889-00 ΧΒΟ80000 1 BRACKET,FAN :ALUMINUM
80009 407-1889-00
----- ----- ΧΒ 080000
1 FAN,TUBEAXIAL :(SEE Β800 EPL)
-44 200-0772-02
1 CO VER ,ELEC XFMR :3 .125 Χ 3 .75 Χ 0 .875 80009 200-0772-02
-45 333-1682-00 Β010100 β059999 1
P
ANEL,REAR : 80009 333-1682-00
333-1682-05 Β060000 Β079999 1 PANEL,REAR : 80009 333-1682-05
333-1833-02 Β080000 Β096709 1
P
ANEL,REAR :
80009 333-1833-02
333-1833-04 Β096710 1
P
ANEL,REAR : 80009 333-1833-04
-46 343-0315-00
2
C
LAMP,XSTR : 80009 343-0315-00
(ATTACHING PARTS
F
OR EACH)
-47 210-0407-00 3
NUT,PLAIN,HEX . :6-32 Χ 0,25 INCH,BRS 73743 3038-0228-402
-48 342-0082-00 1
INSULATOR,PLATE :0 .52 SQ Χ 0 .015 INCH THK,AL 80009 342-0082-00
-49 343-0403-00
3 CLAMP,RIM,CLENC :TRANSISTOR 80009 343-0403-00
(ATTACHING
P
ARTS
F
OR EACH)
-50 211-0025-00 1
SC REW,MACHINE :4-40 Χ 0 .375 100 DEG,FLH
S
TL 83385 OBD
-51 342-0082-00 1
INSULATO R,PLATE :0 .52 SQ Χ 0 .015 INCH THK ,AL 80009 342-0082-00
-52 352-0293-00
3 HLDR-LENS ASSY : 80009 352-0293-00
-53
351-0286-01
Β010100 Β010443 3 GUIDE,PL-IN UNI :
80009 351-0286-01
351-0286-02 Β010444 Β041135 3 GUIDE,PL-IN UNI :
80009 351-0286-02
351-0286-04 Β041136 3 GUIDE,SLIDE :BLACK
80009 351-0286-04
(ATTACHING
P
ARTS)
-54 211-0038-00
2 SCRE W ,MACHINE :4-40 Χ 0 .312"100 DEG,FLH
S
TL 83385 OBD
-55 211-0101-00
1
SCRE W ,MACHINE :4-40 Χ 0 .25" 100 DEG,FLH STL 83385 OBD
-56 426-0934-00 Β010100 Β079999 1
F RAME ASSY,CAB : 80009 426-0934-00
426-0934-01 Β080000 1
FRAME ASSY,CAB . : 80009 426-0934-01
-57 129-0266-00
1 .
P
OST,ELEC-MECH :0 .515 L Χ 0 .219 OD,0 .219 BRS
80009 129-0266-00
-58 131-1254-01
3 . CONTACT,ELEC :GROUNDING
80009 131-1254-01
(ATTACHING
P
ARTS
F
OR EACH)
-59 210-0617-00 1 .
E YELET,METALLIC :0 .089 OD Χ 0 .125"
L
,BRASS 57771 C53-4
-60 131-0707-00 17
CONNECTO R ,TERM . :22-26 AWG,BRS& CU BE GOLD
22526 47439
-61 131-0621-00 17 CONNECTOR,TERM :22-26 AWG,BRS& CU BE GOLD
22526 46231
-62 175-0863-00 FT
W IRE,ELECTRICAL :2 WIRE RIBBON 08261 SS-0222-1910610C
-63 Ι 75-0860-00 FT
W IRE,ELECTRICAL :5 WIRE RIBBON 08261 SS-0522-1910610C
-64 175-0855-00 FT
W
IRE,ELECTRICAL :10 WIRE RIBBON 08261
SS-1022(1061)0C
-65 352-0169-03
1 CONN BODY,PL,EL :2 WIRE ORANGE
80009 352-0169-03
-66 352- ΟΙ 63-05
1 CONN BODY,PL,EL :5 WIRE
G REEN 80009 352-0163-05
-67 352-0168-02
1
CONN BODY,PL,EL :10 WIRE RED 80009 352-0168-02
-68 352-0198-03 1
HLDR,TE RM CONN :2 WI RE ORANGE 80009
352-0198-03
-69 352-0201-05
1 CONN BODY,PL,EL :5 WIRE
G
REEN
80009 352-0201-05
-70 352-0206-02
1
CONN BODY,PL,EL :10 WIRE RED 80009 352-0206-02
REV D, AUG 1979
