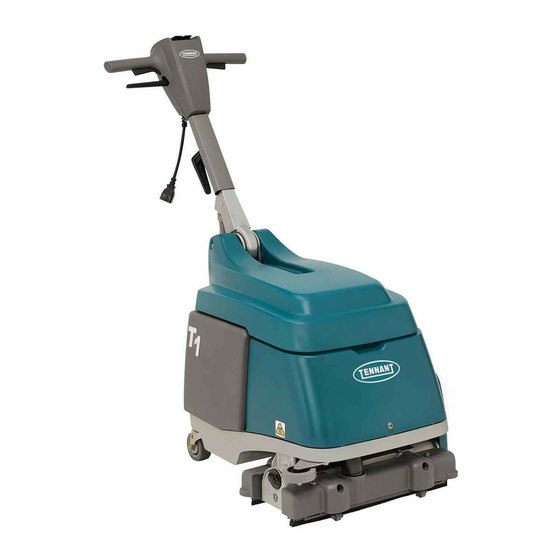

Tennant T1 Manual

Floor scrubber
Hide thumbs Also See for T1:
Table of Contents

Advertisement

Quick Links

See also: Service Information Manual , Operator's Manual
T1
Floor Scrubber
(S/N 10000000- -20000000)
Parts Manual
Models
9004191-120V
9006285
North America / Japan
Rev. 02 (03-2012)
*9006285*
www.tennantco.com
Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T1

Summary of Contents for Tennant T1

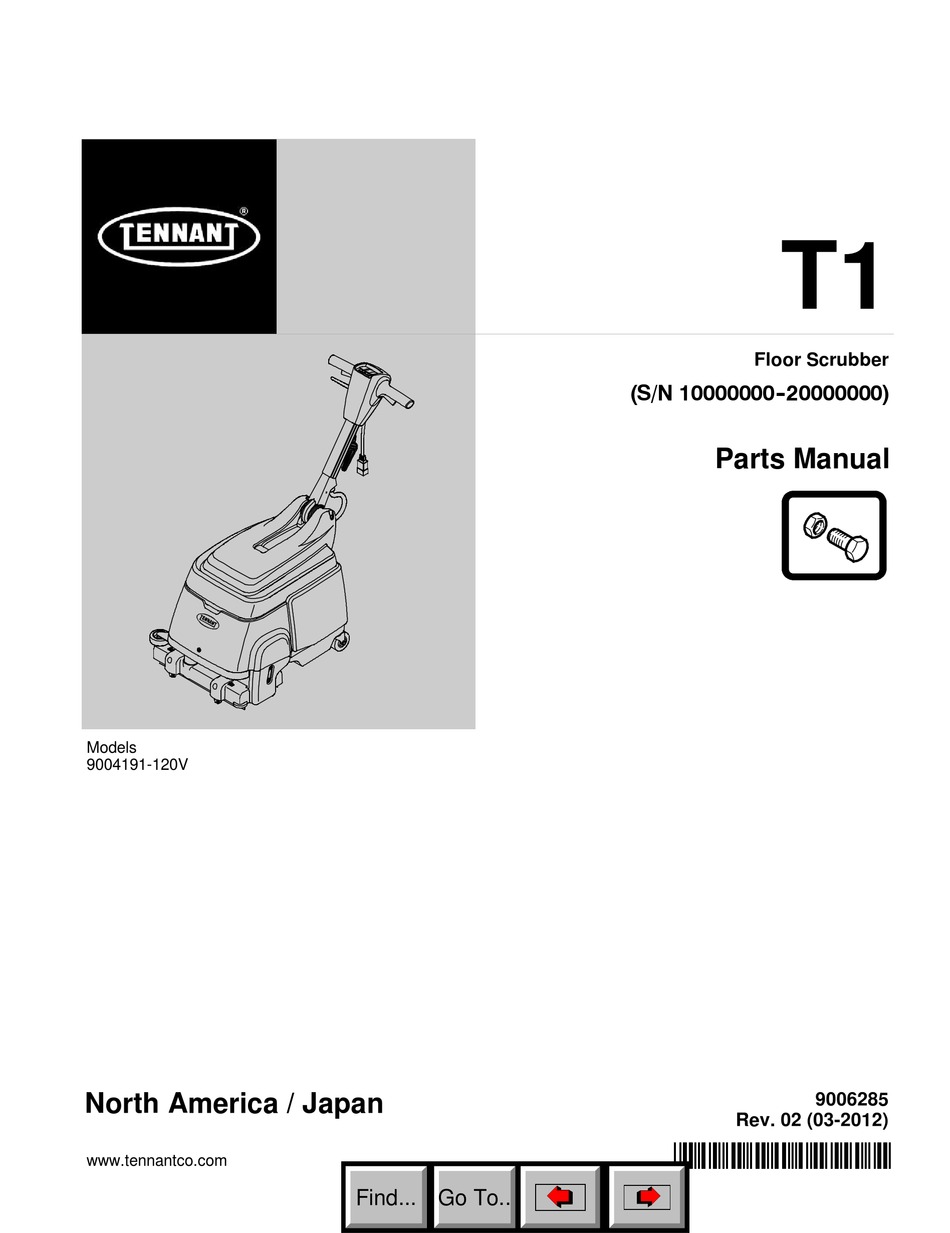

  • Page 1 Floor Scrubber (S/N 10000000- -20000000) Parts Manual Models 9004191-120V 9006285 North America / Japan Rev. 02 (03-2012) *9006285* www.tennantco.com Find... Go To..
  • Page 2 Vaporizer, LPG HOW TO ORDER PARTS - - See diagram above Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online, by phone, by fax or by mail. Follow the steps below to ensure prompt delivery.

  • Page 3: Table Of Contents

    ....ELECTRICAL DIAGRAM, 230V ....Tennant T1 (03- -2012) Find... Go To..

  • Page 4: Recommended Maintenance Items

    Brush, Scrub, 89mm Od X 386mm, Grit (Optional) 9008581 (10000000--20000000 Wheel Kit, Sqge, W/ Hdwr 1057241 (10000000--20000000 Blade Assy, Sqge, Inner, Ure 1050943 (10000000--20000000 Blade Assy, Sqge, Outer, Ure 1052876 (10000000--20000000 Gasket, Tank Tennant T1 Battery (03- -2012) Find... Go To..
  • Page 5 RECOMMENDED MAINTENANCE ITEMS Tennant T1 Battery (05- -2011) Find... Go To..

  • Page 6: Handle Group, 120V

    STANDARD PARTS HANDLE GROUP, 120V 355051 Tennant T1 (03- -2009) Find... Go To..
  • Page 7 Part No. Serial Number Description Qty. 9005505 (10000000--20000000 Handle, Tennant T1[120 Volt]  9004320 (10000000--20000000 Cover, Handle Front/Rear Tennant T1 Kit  1042589 (10000000--20000000 Label, Logo, 02.50l, White [Tennant] 1037324 (10000000--20000000 Label, Opertnl, Instrmt Panl, Scrubber 602919 (10000000--20000000 Switch, Rocker, Dpdt, On / On...

  • Page 8: Handle Group, 230V

    STANDARD PARTS HANDLE GROUP, 230V 355053 Tennant T1 (03- -2009) Find... Go To..
  • Page 9 Part No. Serial Number Description Qty. 9005508 (10000000--20000000 Handle, Tennant T1[230 Volt]  9004320 (10000000--20000000 Cover, Handle Front/Rear Tennant T1 Kit  1042589 (10000000--20000000 Label, Logo, 02.50l, White [Tennant] 1037324 (10000000--20000000 Label, Opertnl, Instrmt Panl, Scrubber 602919 (10000000--20000000 Switch, Rocker, Dpdt, On / On...

  • Page 10: Frame Group, 120V

    STANDARD PARTS FRAME GROUP, 120V 355056 Tennant T1 (03- -2012) Find... Go To..
  • Page 11 (10000000--20000000 Screw, Hex, M8 X 1.25 X 16, Nl, Ss 25 1034805 (10000000--20000000 Bracket, Bumper Wheel N/S 1033825 (10000000--20000000 Harness, Chassis, Ele, Scrbr, [T--Rex]  ASSEMBLY INCLUDED IN ASSEMBLY N/S = NOT SHOWN Tennant T1 (03- -2012) Find... Go To..

  • Page 12: Frame Group, 230V

    STANDARD PARTS FRAME GROUP, 230V 355057 Tennant T1 (03- -2012) Find... Go To..
  • Page 13 (10000000--20000000 Screw, Hex, M8 X 1.25 X 16, Nl, Ss 27 1034805 (10000000--20000000 Bracket, Bumper Wheel N/S 1033825 (10000000--20000000 Harness, Chassis, Ele, Scrbr, [T--Rex]  ASSEMBLY INCLUDED IN ASSEMBLY N/S = NOT SHOWN Tennant T1 (03- -2012) Find... Go To..

  • Page 14: Tanks And Shroud Group

    STANDARD PARTS TANKS AND SHROUD GROUP 355062 Tennant T1 (05- -2011) Find... Go To..
  • Page 15 STANDARD PARTS TANKS AND SHROUD GROUP Ref. Part No. Serial Number Description Qty. 9004312 (10000000--20000000 Tank, Rec W/ Labels Tennant 3 Gal Kit  1039085 (10000000--20000000 Label, Side [T1 Scrubber] 9004285 (10000000--20000000 Handle, Tank Kit  24265 (10000000--20000000 Screw, Pan, Phl, M4 X 0.70 X 16, Ss...

  • Page 16: Tank Cover Group

    STANDARD PARTS TANK COVER GROUP 355055 Tennant T1 (05- -2011) Find... Go To..
  • Page 17 STANDARD PARTS TANK COVER GROUP Ref. Part No. Serial Number Description Qty. 1031638 (10000000--20000000 Cover , Tank, Upper, Tennant [Trex] 1035358 (10000000--20000000 Pin, Grvd, 0.375d, 1.25l 24555 (10000000--20000000 Ring, Retaining, Ext, 0.38d, [E--Ring] 1016399 (10000000--20000000 Screw, Hex, M8 X 1.25 X 30, Nl, Ss...

  • Page 18: Vacuum Fan Group

    STANDARD PARTS VACUUM FAN GROUP 355061 Tennant T1 (03- -2009) Find... Go To..
  • Page 19 (10000000--20000000 Nut, Hex, Lock, M6 X 1.00, Nl 13 630010 (10000000--20000000 Gasket, 12.7mm Th, 43mmid 73mmod 14 09007 (10000000--20000000 Screw, Hex, M6 X 1.00 X 25, Ss 15 1034069 (10000000--20000000 Plate, Vac Mounting Tennant T1 (03- -2009) Find... Go To..

  • Page 20: Solution Group

    STANDARD PARTS SOLUTION GROUP 355060 Tennant T1 (03- -2009) Find... Go To..
  • Page 21 13 02938 (10000000--20000000 Washer, Lock, Int, 08, Ss 14 41579 (10000000--20000000 Washer, Flat, 08, Ss 15 1034395 (10000000--20000000 Shroud, Splash, Nozzle [Trex] 16 1034582 (10000000--20000000 Nozzle Adapter, Qppm 17 1033942 (10000000--20000000 Nozzle [Qmvv 110--015] Tennant T1 (03- -2009) Find... Go To..

  • Page 22: Scrub Head Group, 120V (S/N 10507590-- )

    STANDARD PARTS SCRUB HEAD GROUP, 120V (S/N 10507590- - 355156 Tennant T1 (05- -2011) Find... Go To..
  • Page 23 Hub, Idler, Brush 32 01543 (10000000--20000000 Ring, Retaining, Ext, 0.39d, Basic 33 1030682 (10000000--20000000 Shaft, Idler Plug 34 1019349 (10000000--20000000 Screw, Trs, M6 X 1.00 X 16, Ss, Sems  ASSEMBLY INCLUDED IN ASSEMBLY Tennant T1 (05- -2011) Find... Go To..

  • Page 24: Scrub Head Group, 120V (S/N 10000000--10507589)

    STANDARD PARTS SCRUB HEAD GROUP, 120V (S/N 10000000- - 10507589) 355058 Tennant T1 (05- -2011) Find... Go To..
  • Page 25 (10000000--20000000 Washer, Flat, 0.27b 0.69d .05, Ss 1034380 (10000000--20000000 Housing, Brush, Sngl, 40cm 9008295 (10000000--10507589 Motor Kit, Sheaves, 115vdc [T1]  1045234 (10000000--20000000 Brush, Carbon (Pk=2) Ref Part 1034457 09162 (10000000--20000000 Screw, Set, Soc, M6 X 1.00 X 8, Nl...

  • Page 26: Scrub Head Group, 230V (S/N 10507590-- )

    STANDARD PARTS SCRUB HEAD GROUP, 230V (S/N 10507590- - 355157 Tennant T1 (05- -2011) Find... Go To..
  • Page 27 Ring, Retaining, Ext, 0.39d, Basic 33 1030682 (10000000--20000000 Shaft, Idler Plug 34 1019349 (10000000--20000000 Screw, Trs, M6 X 1.00 X 16, Ss, Sems 35 1036953 (10000000--20000000 Filter, Brush, 270 Vdc, 3a  ASSEMBLY INCLUDED IN ASSEMBLY Tennant T1 (05- -2011) Find... Go To..

  • Page 28: Scrub Head Group, 230V (S/N 10000000--10507589)

    STANDARD PARTS SCRUB HEAD GROUP, 230V (S/N 10000000- - 10507589) 355059 Tennant T1 (05- -2011) Find... Go To..
  • Page 29 Screw, Trs, M6 X 1.00 X 16, Ss, Sems 16 1064396 (10000000--20000000 Cover, Belt, Bl--Gr (Single Roller) 17 9008301 (10000000--10507589 Bracket Kit, Mount, Motor, W/ Brg [T1]  18 08713 (10451589--20000000 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 19 41186 (10000000--20000000 Washer, Flat, Belleville, .31...

  • Page 30: Scrub Head Lift Group

    STANDARD PARTS SCRUB HEAD LIFT GROUP 355073 Tennant T1 (03- -2012) Find... Go To..
  • Page 31 Screw, Hex, M8 X 1.25 X 25, Ss 22 140402 (10000000--20000000 Spring, Extn, 0.375od 0.045wir 01.8l, Mw 23 41128 (10000000--10467312 Nut, Low Crown, .31--18 24 240191 (10000000--10467312 Knob, Rnd, 1.00d 0.41l, .31--18x2.0l Stud Tennant T1 (03- -2012) Find... Go To..

  • Page 32: Squeegee Group, Front And Rear

    STANDARD PARTS SQUEEGEE GROUP, FRONT AND REAR 355158 Tennant T1 (05- -2011) Find... Go To..
  • Page 33 Frame, Squeegee 14 1057241 (10000000--20000000 Blade Assy, Sqge, Inner, Ure 15 1057243 (10000000--20000000 Retainer, Sqge, Inner, Acetal, Blk 16 33932 (10000000--20000000 Nut, Hex, Lock, M4 X 0.70, Nl, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Tennant T1 (03- -2012) Find... Go To..

  • Page 34: Electrical Diagram, 120V

    STANDARD PARTS ELECTRICAL DIAGRAM, 120V 1046178 Tennant T1 (05- -2011) Find... Go To..

  • Page 35: Electrical Diagram, 230V

    STANDARD PARTS ELECTRICAL DIAGRAM, 230V 1046179 Tennant T1 (05- -2011) Find... Go To..
