lancer 2500 Installation Manual

Counter electric remote chiller
Hide thumbs Also See for 2500:

Advertisement

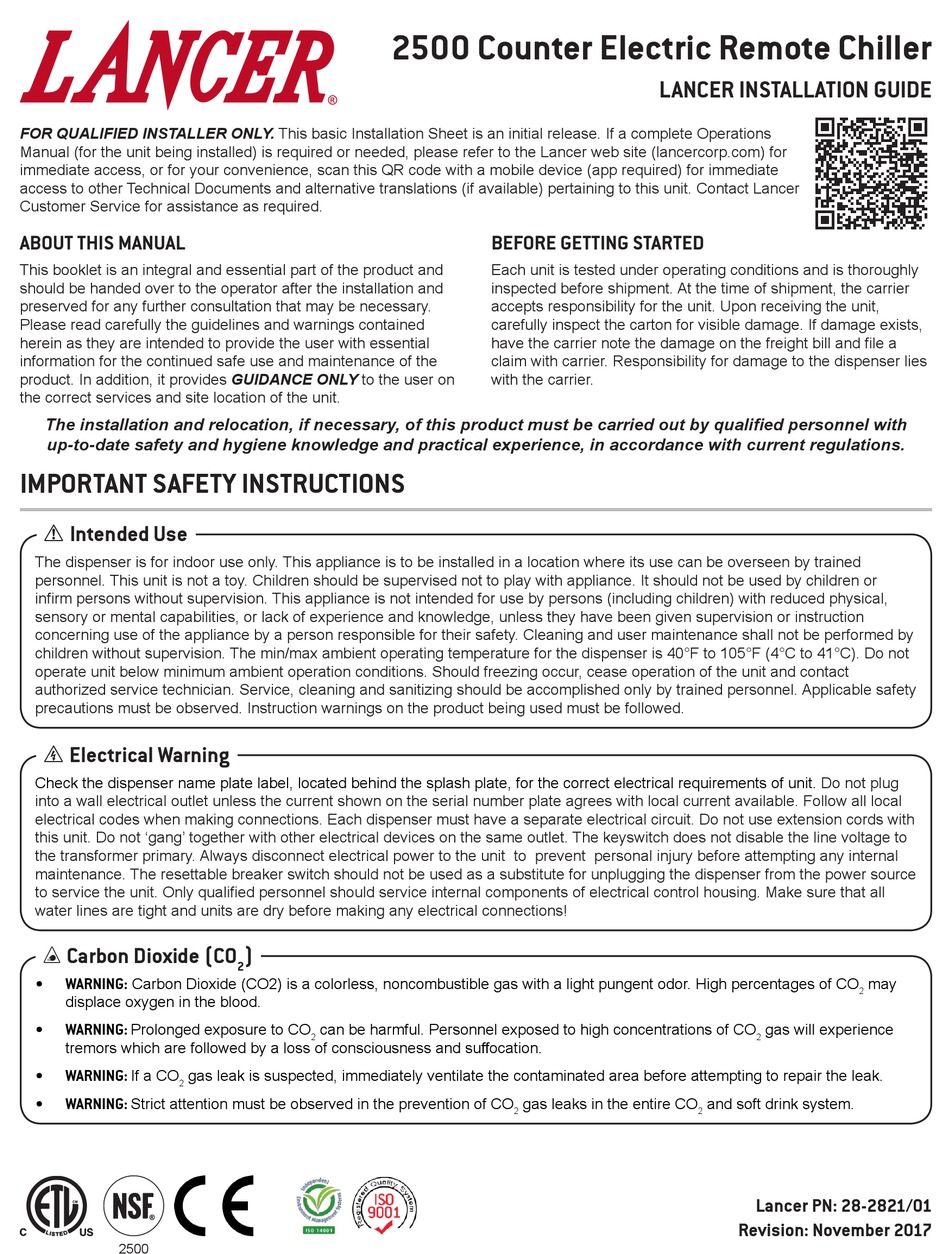

FOR QUALIFIED INSTALLER ONLY. This basic Installation Sheet is an initial release. If a complete Operations
Manual (for the unit being installed) is required or needed, please refer to the Lancer web site (lancercorp.com) for
immediate access, or for your convenience, scan this QR code with a mobile device (app required) for immediate
access to other Technical Documents and alternative translations (if available) pertaining to this unit. Contact Lancer
Customer Service for assistance as required.
ABOUT THIS MANUAL
This booklet is an integral and essential part of the product and
should be handed over to the operator after the installation and
preserved for any further consultation that may be necessary.
Please read carefully the guidelines and warnings contained
herein as they are intended to provide the user with essential
information for the continued safe use and maintenance of the
product. In addition, it provides GUIDANCE ONLY to the user on
the correct services and site location of the unit.
The installation and relocation, if necessary, of this product must be carried out by qualified personnel with
up-to-date safety and hygiene knowledge and practical experience, in accordance with current regulations.
IMPORTANT SAFETY INSTRUCTIONS
! Intended Use
The dispenser is for indoor use only. This appliance is to be installed in a location where its use can be overseen by trained
personnel. This unit is not a toy. Children should be supervised not to play with appliance. It should not be used by children or
infirm persons without supervision. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Cleaning and user maintenance shall not be performed by
children without supervision. The min/max ambient operating temperature for the dispenser is 40°F to 105°F (4°C to 41°C). Do not
operate unit below minimum ambient operation conditions. Should freezing occur, cease operation of the unit and contact
authorized service technician. Service, cleaning and sanitizing should be accomplished only by trained personnel. Applicable safety
precautions must be observed. Instruction warnings on the product being used must be followed.
F Electrical Warning
Check the dispenser name plate label, located behind the splash plate, for the correct electrical requirements of unit.
into a wall electrical outlet unless the current shown on the serial number plate agrees with local current available. Follow all local
electrical codes when making connections. Each dispenser must have a separate electrical circuit. Do not use extension cords with
this unit. Do not 'gang' together with other electrical devices on the same outlet. The keyswitch does not disable the line voltage to
the transformer primary. Always disconnect electrical power to the unit to prevent personal injury before attempting any internal
maintenance. The resettable breaker switch should not be used as a substitute for unplugging the dispenser from the power source
to service the unit. Only qualified personnel should service internal components of electrical control housing. Make sure that all
water lines are tight and units are dry before making any electrical connections!
5 Carbon Dioxide (CO
WARNING:
Carbon Dioxide (CO2) is a colorless, noncombustible gas with a light pungent odor. High percentages of CO
displace oxygen in the blood.
WARNING:
Prolonged exposure to CO
tremors which are followed by a loss of consciousness and suffocation.
WARNING:
If a CO
gas leak is suspected, immediately ventilate the contaminated area before attempting to repair the leak.
2
Strict attention must be observed in the prevention of CO
WARNING:
®
2500
2500 Counter Electric Remote Chiller
)
2
can be harmful. Personnel exposed to high concentrations of CO
2
LANCER INSTALLATION GUIDE
BEFORE GETTING STARTED
Each unit is tested under operating conditions and is thoroughly
inspected before shipment. At the time of shipment, the carrier
accepts responsibility for the unit. Upon receiving the unit,
carefully inspect the carton for visible damage. If damage exists,
have the carrier note the damage on the freight bill and file a
claim with carrier. Responsibility for damage to the dispenser lies
with the carrier.
gas leaks in the entire CO
2
Do not plug
may
2
gas will experience
2
and soft drink system.
2
Lancer PN: 28-2821/01
Revision: November 2017
