- Page 1 S8E V3 Hi-Carb Superchiller 230V / 50Hz Installation, Operation & Service Manual www.lancerbeverage.com...
- Page 2 This page is intentionally left blank www.lancerbeverage.com Page 2 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019...
-
Page 3: Table Of Contents
Certificate of Warranty ....................... 26 Manufacturer’s Checklist ....................27 www.lancerbeverage.com Page 3 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 4: Specifications And Features

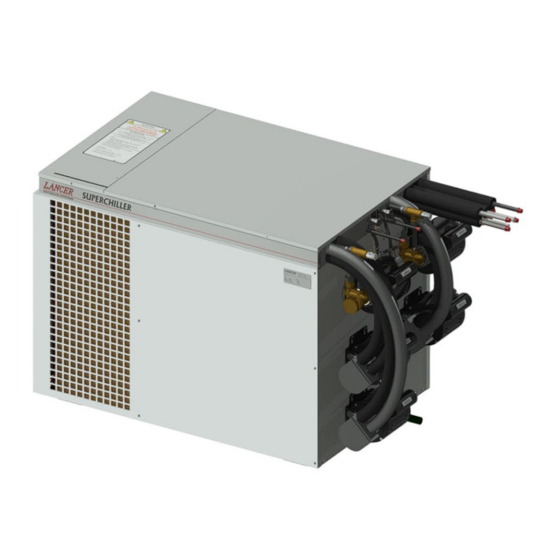

32°C water inlet temperature. Product Features The Lancer Superchiller is an Australian designed and manufactured remote refrigerated unit designed to refrigerate and distribute post-mix (soft drinks) as well as maintaining the product temperature through the python and dispenser. -
Page 5: Recognise Safety Alert Symbols
BEFORE COMMENCING ANY SERVICE OR MAINTENANCE WORK. www.lancerbeverage.com Page 5 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 6: Installation
The Superchiller must always be handled in a vertical position. Carefully unpack the Lancer S8E Superchiller from the shipping carton, remove the wooden base. If appropriate, assemble legs to unit by carefully tilting (tilt should not be more than 45°). -
Page 7: Connecting Python
• Turn on water supply, check for leaks, adjust water regulator to 172-275kpa. www.lancerbeverage.com Page 7 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. -
Page 8: Connecting To Co2 Supply
• After Superchiller has cycled off, reconnect carbonator and recirculation pumps. www.lancerbeverage.com Page 8 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 9: Purge System
Remove all dust and foreign particles from refrigeration deck. www.lancerbeverage.com Page 9 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. -
Page 10: Yearly
BIB's. Operate dispensing valves until syrup flows freely. www.lancerbeverage.com Page 10 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 11: Postmix Circuit Diagram
5. Postmix Circuit Diagram Single Carbonator Superchiller (3 pumps) www.lancerbeverage.com Page 11 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 12: Twin Carbonator Superchiller (4 Pumps)
SODA RELIEF SODA RELIEF VALVE VALVE www.lancerbeverage.com Page 12 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 13: Twin Carbonator Superchiller (5 Pumps)
SODA RELIEF SODA RELIEF VALVE VALVE www.lancerbeverage.com Page 13 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 14: Electrical Circuit Diagram
6. Electrical Circuit Diagram Refrigeration Wiring Diagram www.lancerbeverage.com Page 14 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 15: Postmix Wiring Diagram
S8E V3 Hi-Carb Superchiller 230V / 50Hz Postmix Wiring Diagram www.lancerbeverage.com Page 15 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 16: Airflow Diagram
S8E V3 Hi-Carb Superchiller 230V / 50Hz 7. Airflow Diagram www.lancerbeverage.com Page 16 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 17: Trouble Shooting
Fan not operating. Remove obstruction or replace motor. www.lancerbeverage.com Page 17 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 18: Troubleshooting - Postmix
21. Replace control or probe if defective. www.lancerbeverage.com Page 18 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... - Page 19 Page 19 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019...
-
Page 20: Hydra Icebank Control Go/No Go Test
(Simulates ice growth over black probe only) www.lancerbeverage.com Page 20 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 21: Hydra Carbonator Level Control Test
(i.e. Water level drops below low level) www.lancerbeverage.com Page 21 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 22: Assembly Diagrams & Parts List
78000100 PUMP SS MAG WITH CLAMP www.lancerbeverage.com Page 22 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 23: Postmix Assembly Diagram
S8E V3 Hi-Carb Superchiller 230V / 50Hz 11.2 Postmix Assembly Diagram www.lancerbeverage.com Page 23 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 24: Refrigeration Spare Parts List
PANEL RH 5 PUMP S8E V3 www.lancerbeverage.com Page 24 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 25: Refrigeration Assembly Diagram
S8E V3 Hi-Carb Superchiller 230V / 50Hz 11.4 Refrigeration Assembly Diagram www.lancerbeverage.com Page 25 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019... -
Page 26: Certificate Of Warranty
Warranty shall not apply: a) If in the opinion of Lancer, the equipment has been used in a situation the equipment has not been designed for;... -
Page 27: Manufacturer's Checklist
Copy checklist & file, put manual/checklist and pump insulator kit in plastic bag & place in the tank area. Customer asset No. W/O ..............www.lancerbeverage.com Page 27 of 27 Hoshizaki Lancer reserve the right to change specifications without notice. Part No: 68000021 Images are for illustration purposes only as product may vary. No 043-3 – 19 December 2019...
