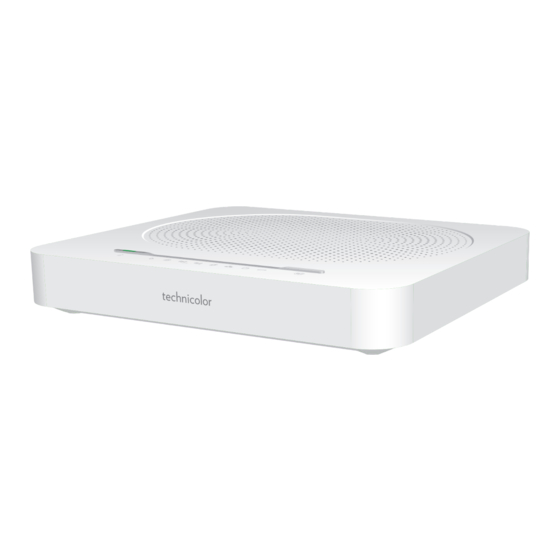

How to setup your Technicolor

TG789vac V2 Fibre Router

What is in the box?

1 Welcome letter including a setup guide sent by Call Flow Solutions

•

1 Router

•

1 Power Lead

•

1 White Ethernet Lead

•

1 DSL Lead

•

2 Micro-filters

•

Setting up

1. Firstly you need to take your router out of the box and connect the power lead, please

do not turn it on until you have all other cables connected.

2. You then need to connect your DSL Lead into the router.

Page 1 How to setup your Technicolor TG789vac V2 Fibre Router What is in the box? 1 Welcome letter including a setup guide sent by Call Flow Solutions • 1 Router • 1 Power Lead • 1 White Ethernet Lead • 1 DSL Lead •...
Page 2 3. You then need to connect the other end of the DSL Lead into the DSL socket labelled on the Micro-filter. If you have the faceplate on the left hand side of the image below, please do NOT use a filter. However, if you have the faceplate on the right hand side, please ensure that you are using the filter supplied by Call Flow.
Page 3 4. If you wish to connect a device hardwired, you will need to use the Yellow Ethernet Lead provided with the router and connect it to one of the 4 ETH ports available. 5) Once all of the cables have been connected, you are now able to switch on the power on the router, leave the router for 10-15 minutes and once all of the lights are on like shown below, you are able to start using your broadband with Call Flow.
