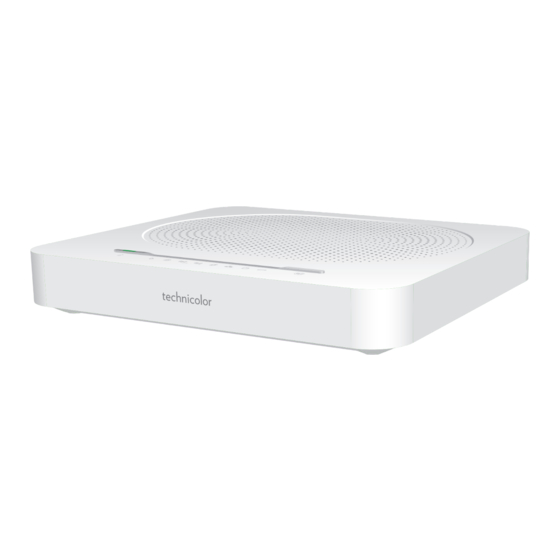

How to setup your Technicolor

TG789vac V2 Radio Router

What is in the box?

1 Welcome letter including a setup guide sent by Call Flow Solutions

•

1 Router

•

1 Power Lead

•

1 White Ethernet Lead with two Red connectors either end

•

1 White Ethernet Lead with two Yellow connectors either end

•

1. Firstly you need to take your router out of the box and connect the power lead, please

do not turn it on until you have all other cables connected.

2. You then need to connect one end of the red ended Ethernet cable in the red WAN

port on the back of your Technicolor router.

Table of Contents

Do you have a question about the TG789vac V2 and is the answer not in the manual?

Page 1 1. Firstly you need to take your router out of the box and connect the power lead, please do not turn it on until you have all other cables connected. 2. You then need to connect one end of the red ended Ethernet cable in the red WAN port on the back of your Technicolor router.
Page 2 Plug the other end of the cable into the Radio’s power supply (also known as an IDU). Alvarion IDU – The black Ethernet cable goes off to the aerial and must be in the ‘Radio’ port in the end of the IDU, this is at the top.
Page 3 5) Once all of the cables have been connected, you are now able to switch on the power on the router, leave the router for 10-15 minutes and once all of the lights are on like shown below, you are able to start using your broadband with Call Flow.
