) EYE-LCD4600M/W-SN
EYE-LCD4600-SN
User's Manual
Version 3.0 (May 2010)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EYE-LCD4600-SN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eyevis EYE-LCD4600-SN Series

Summary of Contents for Eyevis EYE-LCD4600-SN Series

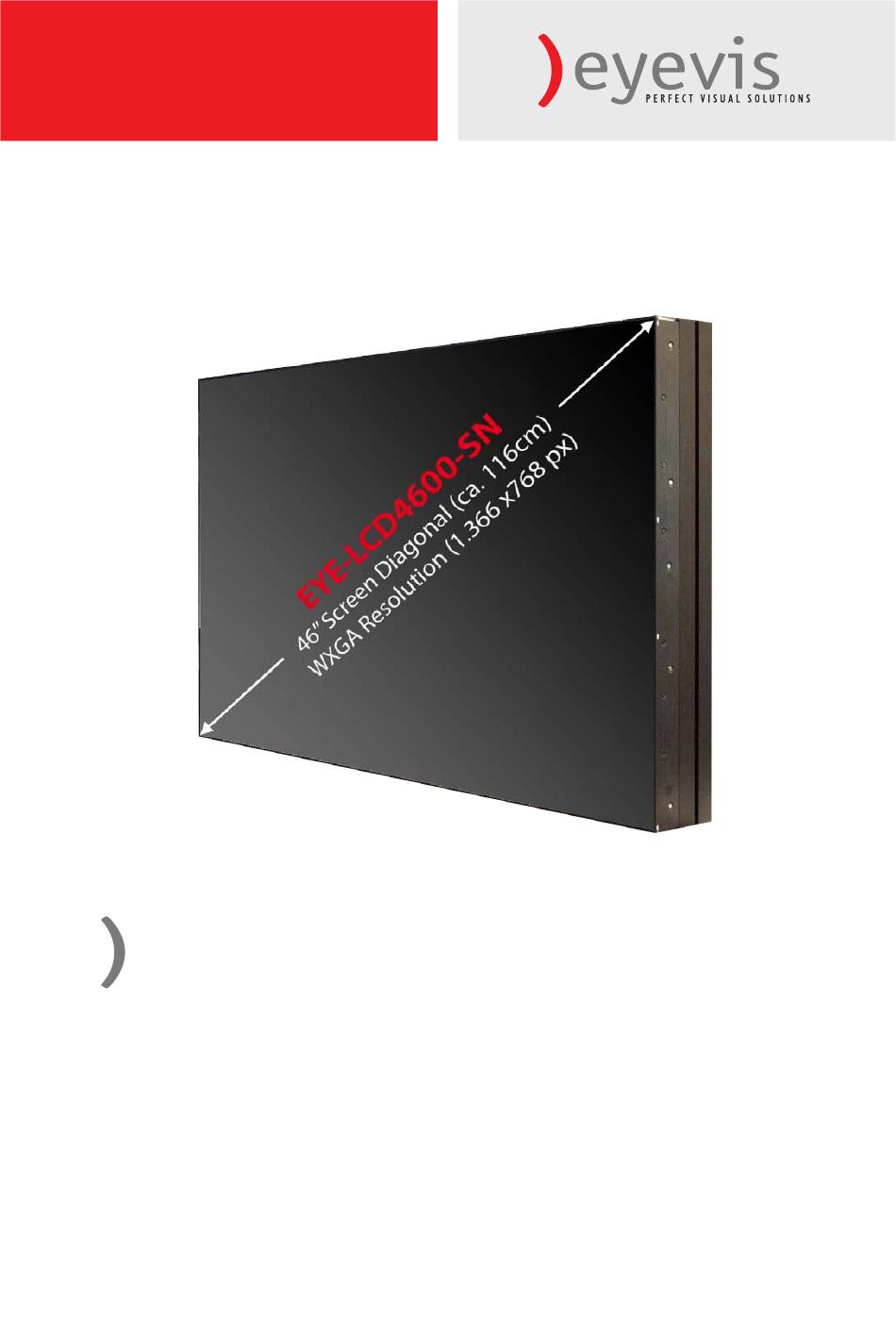

  • Page 1 ) EYE-LCD4600M/W-SN EYE-LCD4600-SN User’s Manual Version 3.0 (May 2010)
  • Page 2 EYE-LCD4600M/W-SN...

  • Page 3: Table Of Contents

    EYE-LCD4600M/W-SN CONTENTS SAFETY INSTRUCTIONS General Instructions Power Installation Unused for long periods of time Precautions for the remote control batteries Cleaning Storing Notes & Cautions fur Use FEATURES Packaging 2.1.1 Way of Packaging Dimensions Video Wall Assembly 2.3.1 Stackable for monitor wall applications 2.3.2 Stacking frame for video walls 2.3.3...
  • Page 4 How to minimize the Danger of Image Retention Integrated Security Features of the EYE-LCDM/W Series Re-arranging the display content with eyecon software Possibilities with similar display contents Résumé Product-design related characteristics of eyevis super narrow bezel displays 7.9.1 Acceptable characteristics 7.9.2 Restrictions for RMA 7.9.3...

  • Page 5: Safety Instructions

    Therefore the mains plug shall be easily accessible. If, not, this may cause electric shock or fire.  Do only use the power cord provided by eyevis. Do not use the power cord of another product. Improper power cords may lead to fire or electric shock. ...

  • Page 6: Installation

    EYE-LCD4600M/W-SN Installation Do not install the device in areas where humidity is high. If the unit is installed in direct sunlight, closed car or near a stove the cabinet or other parts may  distort or be damaged, and electric shock may result. ...

  • Page 7: Use

    EYE-LCD4600M/W-SN Never repair, modify or disassemble the unit by yourself. It may cause a fire or an electric shock because dangerous voltages exist in the unit. Consult your  dealer for internal inspection and repairs. Follow these precautions for the power cord. ...

  • Page 8: Unused For Long Periods Of Time

    EYE-LCD4600M/W-SN wipe it off with cotton swab or soft cloth immediately, otherwise display surface will be deteriorated. If water gets inside the LCD module, circuit may be damaged. This product contains chemicals, including lead, known to cause birth defects or other reproductive harm.

  • Page 9: Storing

    EYE-LCD4600M/W-SN 3 To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzene, or abrasive cleaners, since these will damage the cabinet. Display surface cleaning.

  • Page 10: Features

    Box Content EYE-LCD4600W-SN 3 1 display unit EYE-LCD4600 W-SN 3 1 power cord 3 1 user‘s manual 3 1 eyevis display adjustment software on CD 3 1 remote control (optional) Box Content 1 EYE-LCD4600M-SN 3 1 display unit EYE-LCD4600 M-SN...

  • Page 11: Dimensions

    EYE-LCD4600M/W-SN Dimensions Dimensions Front/Side in mm: Depth: W- Version 167 mm M- Version 217 mm M- Version + R-Frame 277 mm (for wallmount installation) Dimensions Back in mm:...

  • Page 12: Video Wall Assembly

    The main purpose of the T-slot is the precise video wall assembly. When raising a video wall, please use the special cross spacers provided by eyevis. These are highly precise shaped metal pieces which guarantee exact distances between the individual modules of a video wall...

  • Page 13: Example: Video Wall Assembly 3X3

    Align the displays before operation 2.3.4 Optional front service mechanism The displays from eyevis EYE-LCDM/W series are also available with front maintenance option. This new development allows taking of the display panel in a combined video wall without the necessity to demount the entire wall.

  • Page 14: Linking The Displays

    EYE-LCD4600M/W-SN 2.3.6 Linking the Displays The EYE-LCD4600M/W-SN displays are especially designed for video wall applications. The size of the video wall matrix may range from 1x1 up to 10x10 displays Displays within a video wall matrix have to be addressed consecutively from 0 - 99 ) Signal-Daisy-Chain DVI: DVI signals can be daisy-chained through up to 9 displays (depending on the resolution, cabel lengths, cable quality, graphic cards, etc.).
  • Page 15 The individual stacking frames are fixed together with screws or optionally with snap closings. eyevis also provides display racks for the displays of the EYE-LCD4600-SN type. These racks are designed to build up freestanding video walls with the stacking...
  • Page 16 EYE-LCD4600M/W-SN...

  • Page 17: Connectors & Control

    EYE-LCD4600M/W-SN CONNECTORS & CONTROL Power Cord Connection 3 AC power cord connection 3 Use the supplied power cord to connect your LCD panel to the wall outlet. 3 Plug the female power connector into the male connector at the back of the LCD panel Input Source Connections 10 11 Name...

  • Page 18: The Remote Control

    EYE-LCD4600M/W-SN The Remote Control The menu Functions of the OSD Menu can be accessed with the eyevis Remote Control Unit (RCU), see picture below. To use the RCU connect the IR sensor (see picture on the right) with the IR Input socket of the first LC display of the RS232 daisy-chain in the video wall.

  • Page 19: Main Menu

    EYE-LCD4600M/W-SN Press the SOURCE button to switch to the next input source. If Autoscan is enabled in the Input menu this will trigger an input scan and the next active input is selected. You can reboot the display and read back saved settings at any time: press the sequence BLUE-RED- YELLOW () to trigger a reset on the currently selected display.

  • Page 20: Input

    EYE-LCD4600M/W-SN 3.2.1 Input Input Input Source DVI-1 Autoscan Adjustment function / Main menu Functions Description value / range Input Input Source DVI-1 Select input signal of the multi input board DVI-2 RGB-1 RGB-2 CompV1 CompV2 SVideo Autoscan On/Off Activate/Deactivate automatic scanning for input signals...

  • Page 21: Picture Setup

    EYE-LCD4600M/W-SN 3.2.1 Picture Setup Picture Setup Color Temperature 7300 User Color Red User Color Green User Color Blue Manual BL Control Backlight Set Backlight Bright Set Backlight Dark Video Color Video Tint Video Sharpness Brightness Contrast Adjustment function / Main menu Functions Description value / range...

  • Page 22: Matrix

    EYE-LCD4600M/W-SN 3.2.2 Matrix Matrix Enable Matrix Size X Size Y Element X Element Y Matrix Scaling FillAll Frame X Frame Y Set Matrix Adjustment function / Main menu Functions Description value / range Matrix Enable Matrix On/Off Switch matrix function ON / OFF Size X 1 - 10 Set horizontal matrix size...

  • Page 23: Scaling

    EYE-LCD4600M/W-SN 3.2.3 Scaling Scaling Picture Scaling FillAll H-Resolution V-Resolution H-Size V-Size H-Offset V-Offset H-Linearity 4095 V-Linearity 4095 Adjustment function / Main menu Functions Description value / range Scaling Picture Scaling Set scaling mode for the input signal source Fill-All Fill-Ratio User H-Resolution Horizontal resolution of the input signal...

  • Page 24: Analogue Rgb Settings

    EYE-LCD4600M/W-SN 3.2.4 Analogue RGB Settings Analogue RGB Settings Autoadjust Phase 2500 Frequency 2500 H-Position V-Position Options Disabled H-Visible 1000 V-Visible H-Total 1000 H-Start V-Start Install RGB Adjustment function / Main menu Functions Description value / range Analogue RGB Autoadjust On/Off Automatically reset RGB settings to reasonable defaults Settings Phase...

  • Page 25: Network Configuration

    EYE-LCD4600M/W-SN 3.2.5 Network Configuration Network Configuration Netboard IP Address 192 168 000 062 Netboard Netmask 255 255 255 000 Netboard Gateway 192 168 000 001 Netboard TCP Port 7292 Set Netboard Value Adjustment function / Main menu Functions Description value / range All of the following settings presuppose an installed netboard to be functional Network Netboard IP Address...

  • Page 26: Tools

    EYE-LCD4600M/W-SN 3.2.6 Tools Tools Line Move Input Board Reset Framelock Video Framelock RGB Testpattern User Broadcast Mode Adjustment function / Main menu Functions Description value / range Tools Line Move On/Off Switch on a moving line as screensaver On/Off Switch on the PSR screensaver (Continue switching colors in suspend mode) Input Board Reset Reset the Input Board to default settings...

  • Page 27: Status

    EYE-LCD4600M/W-SN 3.2.7 Status Status Fan 1 Speed Fan 1 Status Fan 2 Speed Fan 2 Status Fan 3 Speed Fan 3 Status CPU Temperature DVBPM Temperature Fan Sensor 1 Temperature Fan Sensor 2 Temperature Ambient Sensor Power Time Backlight Time Adjustment function / Main menu Functions...

  • Page 28: Info

    EYE-LCD4600M/W-SN 3.2.8 Info Info LCD Panel WXGA CPU HW Version V210 CPU FW Version 2.40 DB Version SB FW Version C70I02VI Adjustment function / Main menu Functions Description value / range Info LCD Panel String Description of the LCD Panel CPU HW Version Hardware versionn of the CPU CPU FW Version...
  • Page 29 EYE-LCD4600M/W-SN 3.2.9 Power Scheduler Power Scheduler Mon-Fri 08:00:00-18:00:00 Active Mon-Fri 08:00:00-18:00:00 Not Active Mon-Fri 08:00:00-18:00:00 Not Active Mon-Fri 08:00:00-18:00:00 Not Active Mon-Fri 08:00:00-18:00:00 Not Active RTC Time 14:24:13 RTC Date 23/01/2011 With the Power Scheduler you can switch the display on and off at specified times. You can enter five different configurations that can be combined or used separately.

  • Page 30: Getting Started & Menu Function

    Timeout Value in the Windows registry. Depending on your version of eyeCube the keys can be found either in HKEY_CURRENT_USER->Software->eyevis->eyeCube->Timeout or in HKEY_CURRENT_USER->Software->gcc->eyeCube->Timeout A Timeout of 3 seconds for a SetGet-operation, of 5 seconds for ReadAllTimeout and of 10 seconds for GetSet for should normally be sufficient.

  • Page 31: Communication Settings

    EYE-LCD4600M/W-SN Caution: When the display is in Power Up – or Power Down Sequence it is not possible to communicate with the software. The button “Read default” reads the default values of the display. So it is always possible to return to the adjustments of the manufacturer, if the values have been misadjusted too much.

  • Page 32: Program Area "Setup

    EYE-LCD4600M/W-SN 3.3.4 Program Area “Setup” Picture Setup 3 Color Temperature: Set colour temperature, choose from predefined values (9300/7300/5000/User) 3 User Colore Red: Set colour temperature for „red“ 3 User Color Green: Set colour temperature for „green“ 3 User Color Blue: Set colour temperature for „blue“ 3 Manual BL Control: Enable setting the brightness adjustment for the LCD panel backlight (See Backlight) 3 Backlight: adjustment für the LCD panel backlight...
  • Page 33 EYE-LCD4600M/W-SN Scaling 3 Picture Scaling Set scaling mode for the input signal source (1:1, FillAll, FillAspect, User) 3 H-Resolution: Horizontal resolution of the input signal 3 V-Resolution: Vertical resolution of the input signal 3 H-Size: Linear Streching in horizontal direction 3 V-Size: Linear Streching in horizontal direction 3 H-Offset: Advanced scaling horizontal offset 3 V-Offset: Advanced scaling vertical offset...
  • Page 34 EYE-LCD4600M/W-SN Analogue RGB Settings 3 Phase 3 Frequency 3 H-Position: Horizontal Picture Shift 3 V-Position: Vertical Picture Shift 3 Options: [Disabled, Mode1, Mode2, Mode3] 3 H-Visible: H-Resolution in Pixels 3 V-Visible: V-Resolution in Pixels 3 H-Total: H-Total in Pixels 3 H-Start: H-Start in Pixels 3 V-Start: V-Start in Lines 3 Install RGB: Execute the settings (only needed if „Options“...

  • Page 35: Program Area "User

    EYE-LCD4600M/W-SN 3.3.5 Program Area “User” 3 Power: Activate/Deactivate check box to switch selected display on/off Source: 3 Input Source: Select input signal of the input board (DVI-1, DVI-2, RGB-1, RGB-2, CompV1, CompV2, SVideo) 3 Autoscan: Activate/Deactivate automatic scanning for input signals (on / off ) Matrix 3 Enable Matrix: Switch the Matrix Function on or off (To enable the matrix „Set Matrix“...

  • Page 36: Program Area "Service

    EYE-LCD4600M/W-SN 3.3.6 Program Area “Service” Advanced Command 3 At program startup: Action to be performed at program startup (do nothing, read default values, read current values, read a file) 3 Field by Field scanning: Do not use accelerated protocol (tic checkbox to disable). 3 Max.

  • Page 37: Program Area "Status

    EYE-LCD4600M/W-SN 3.3.7 Program Area “Status” 3 Fan 1 Speed: Speed of Fan 1 3 Fan 1 Status: Fan 1 status (OK indicates active / !! indicates inactive) 3 Fan 2 Speed: Speed of Fan 2 [Depends on Fan Temperature] 3 Fan 2 Status: Status of Fan 3 (OK indicates active / !! indicates inactive) 3 Fan 3 Speed: Speed of Fan 3 [depends on CPU Temperature] 3 Fan 3 Status: Status of Fan 3 (OK indicates active / !! indicates inactive) 3 Temp Characteristics: Temperature Characteristic...

  • Page 38: Program Area "Gamma

    EYE-LCD4600M/W-SN 3.3.8 Program Area “Gamma” The manual correction of the gamma-curve is currently not available. This program area will be available with future display versions. 3.3.9 Program Area “Reports” All status reports of the Software are collected here. Diverse services are observed. Commands can be sent directly from the input box to the display “Send”).

  • Page 39: Firmware Updates

    EYE-LCD4600M/W-SN FIRMWARE UPDATES Firmware Update CPU Switch off the LCD Display. Create a direct serial connection with a cable between the display and a COM port of your PC. Open the eyeBootLoader software The window shown below appears. Select the COM port you use in the “Setup Menu” and press “OK”.
  • Page 40 EYE-LCD4600M/W-SN Open the drop-down menu and select the according hardware. Choose the firmware version you want to install. Switch the LCD on and the firmware update starts. You can see the progress in the status bar. Wait till the update is finished. Close the software and restart the Display.

  • Page 41: Firmware Update Scaler

    EYE-LCD4600M/W-SN Firmware Update Scaler Power Off the display Connect the flasher cable (shown in picture) to the PC. Connect the flasher cable to port “AUX1” on the the display SET dipswitch No. 6 to On Start the “Flash Upgrader Software” 3 Choose Connection “Serial”...

  • Page 42: Technical Specification

    EYE-LCD4600M/W-SN TECHNICAL SPECIFICATION EYE-LCD4600-SN LCD Display Technology: S-PVA TFT Display Resolution: 1,366 x 768 Pixel (WXGA) Pixel Pitch: 0.7455 mm (H/V ) Backlight MTBF: 50,000 hrs Display Characteristics Colours: 8 Bit / 16.7 million Aspect Ratio: 16:9 Viewing Angle: H 178° / V 178° Response Time: 8 ms Contrast Ratio:...

  • Page 43: A Guide To Simple Problem Solving

    EYE-LCD4600M/W-SN A GUIDE TO SIMPLE PROBLEM SOLVING Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptom Check these things No picture 3 Make sure the power cord is plugged in 3 Maybe the power is OFF or Standby 3 Check whether the auxiliary equipment is connected properly...

  • Page 44: Guidelines For The Use Of The Displays

    EYE-LCD4600M/W-SN GUIDELINES FOR THE USE OF THE DISPLAYS TO AVOID UNDESIRED EFFECTS 7.1 Introduction 7.2 Advantages of the EYE-LCD Series 7.3 The LCD/TFT Technology of the EYE-LCD Series 7.4. How to minimize the Danger of Image Retention 7.5 Integrated Security Functions 7.6 When using the EYE-LCD4200, 4700, 5700, 7000 and 8200 7.7 When using the EYE-LCDM/W Series 7.8 Re-arranging the display content using eyecon basic software...

  • Page 45: Advantages Of The Eye-Lcd Series Over Other Display Technologies

    The LCD/TFT Technology of the EYE-LCD Series: The light for the LCD/TFT technology used for the displays from eyevis comes from several small fluorescent tubes. These tubes are placed behind several different filter layers and a polarisation filter. In colour LCDs each individual pixel is divided into three cells, or sub-pixels, which are coloured red, green, and blue, respectively, by additional filters (pigment filters, dye filters and metal oxide filters).

  • Page 46: How To Minimize The Danger Of Image Retention

    EYE-LCD4600M/W-SN How to minimize the Danger of Image Retention Reduce Ambient Temperature The ambient temperature and therefore the temperature inside the LCD display plays a decisive role for the appearance of image retention. The risk of image retention increases the higher the surrounding temperature is. If possible, the ambient temperature should not exceed 35°C.

  • Page 47: Integrated Security Features Of The Eye-Lcdm/W Series

    EYE-LCD4600M/W-SN Integrated Security Features of the EYE-LCDM/W Series PSS (Panel-Security-System): The displays provide a range of security functions for long-term operation to avoid so called “image sticking“-effects (e.g. “Line Move” and the “Power Save The PSS functions enable time-scheduled Regeneration”). and automatic inversion of the colours of the input signal.
  • Page 48 The use of the eyecon wall management software makes the re-arrangement of the display content very easy. All necessary settings can be done in the operating software “eyecon Admin“. Please start the software (standard => c:\eyevis\eyecon\gccAdmin.exe) and register with a user login that has the following authorisations:...
  • Page 49 EYE-LCD4600M/W-SN This arrangement normally is saved as a preset. If not, please save your arrangement giving it a name of your choice. Please remind the “Clean Option” and the “Play Option” when virtual walls or several real walls are connected to one graphic controller.
  • Page 50 EYE-LCD4600M/W-SN Save this new arrangement giving it a different name. You can even save it to another group. Now select the “Clean Option“ “Clean partial hidden“ and the “Play option“ “Add“. Now open the integrated scheduler: Here you can define that the preset is changed every six hours, for example.

  • Page 51: Possibilities With Similar Display Contents

    EYE-LCD4600M/W-SN To do so, fill in the various fields as described below: 3 “Day of week” > choose a day 3 “Hour” > the starting time, depending on your schedule 3 Select "Repeat each day" and take care that the check boxes “Exclude Saturday" and “Exclude Sunday”...

  • Page 52: Product-Design Related Characteristics Of Eyevis Super Narrow Bezel Displays

    EYE-LCD4600M/W-SN Product-design related characteristics of eyevis super narrow bezel displays This chapter describes the care which must be exercised in handling LCD panel. The LCD panels are so sensitive that its material and structure may be easily damaged or lost due to carelessness on the part of users or operators.

  • Page 53: White Uniformity

    EYE-LCD4600M/W-SN 7.9.6 White Uniformity Decrease of Luminance (4 edge) Uniformity meets optical specification but edge area of EYE-LCD4600M/W-SN looks more dark than centre area. Dark areas inside active area cause this uniformity issue because super narrow does not have enough mechanical design margin. (Refer to right picture) 7.9.7 Light Leakage “Light Leakage“?

  • Page 54: Visible Sheet Guide Boss & Clip

    EYE-LCD4600M/W-SN 7.9.8 Visible sheet guide boss & clip Left Side Right Side Sheet guide boss & clips may be visible at side view. (3 kinds of shape) Bottom Side Super narrow does not have enough mechanical design margin. 7.9.1 Panel damages caused by handling mistake Line Defect Damaged Top Chassis External shock and vibration by handling mistake may cause panel damage...

  • Page 55: Warranty Information

    Repair and Return The defective product is sent to eyevis by the customer and is repaired within 14 days. In this case eyevis bears the costs for eventually required components or the arising working time, as well as for the costs for the reshipment to the customer.
  • Page 56 The reaction time to claim a right given by this warranty starts with the customer’s announcement of the claim to the eyevis GmbH. It is calculated in accordance to the standard service hours of the eyevis GmbH (daily 9.00 AM to 5.00 PM, except Saturdays, Sundays and Bank Holidays).
  • Page 57 4.) The eyevis GmbH can provide a suitable transport box on request if the customer can not ensure to be able to pack the defect device correctly and to label t as a breakable good. The customer is liable for damages caused by the use of an improper or unsuitable packing by the customer.

  • Page 58: Correct Disposal

    EYE-LCD4600M/W-SN CORRECT DISPOSAL Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.

  • Page 59: Additional Support

    The content of this manual is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by eyevis GmbH. eyevis GmbH resumes no responsibility or liability for any errors or inaccuracies that may appear in this documentation.
