Page 1: User Manual

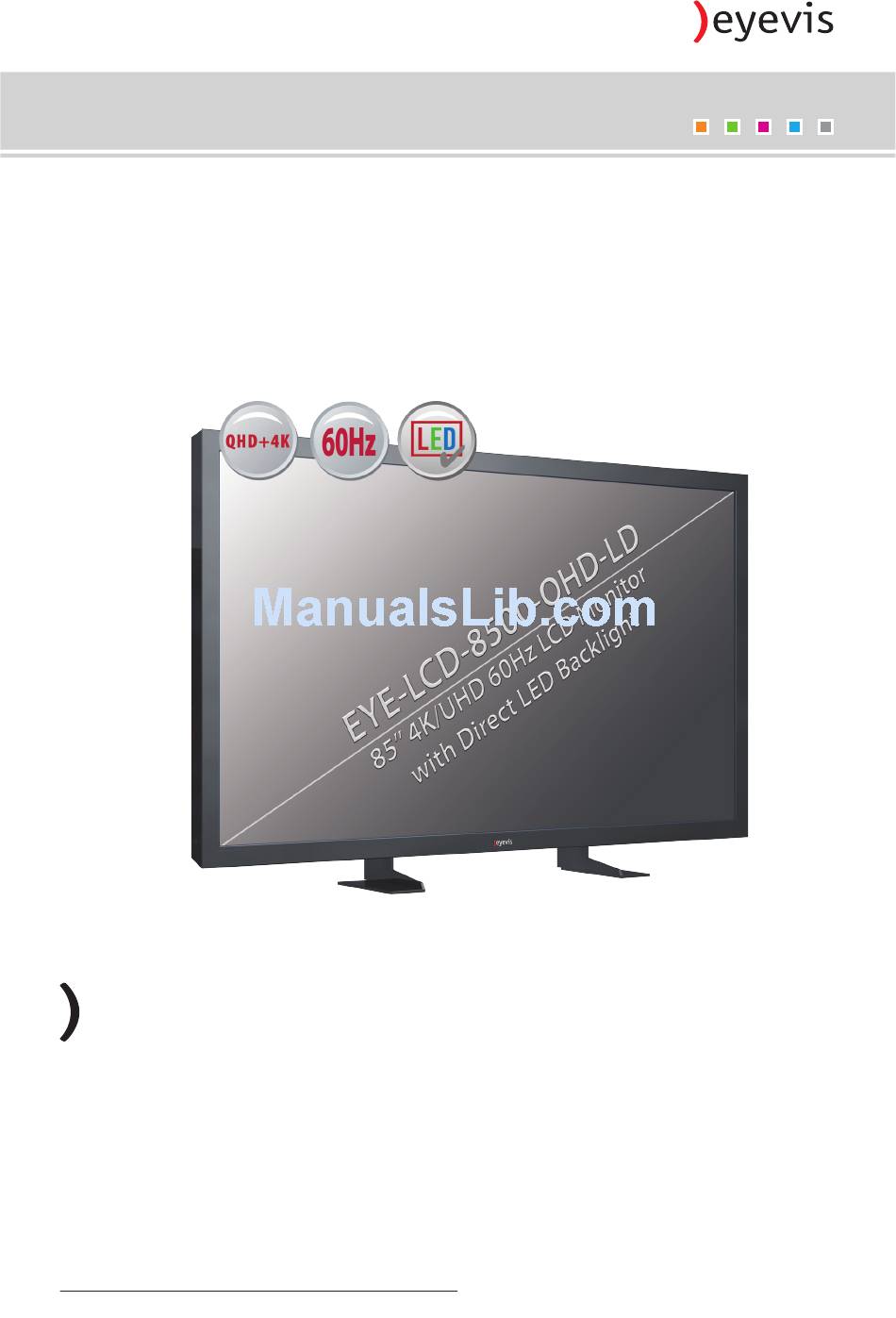

EYEVIS LCD LINE User Manual Product variants: EYE-LCD-8500-QHD-LD EYE-LCD-8500-QHD-LD-TOUCH(AG)-6IR EYE-LCD-8500-QHD-LD-TOUCH(AG)-32IR Version 1.3 (June 2015) Technical changes reserved. -
Page 2: Additional Support
The content of this document is solely informative, can be changed at any time without notice, and represents no obligation on the part of eyevis. eyevis assumes no responsibility or liability for any errors or inaccuracies that may appear in this document. -
Page 3: Table Of Contents
Changing the remote control batteries ... . . 40 Advantages of the EYE-LCD-8500-QHD-LD ..23 Packaging ........24 Using PIP (Picture-in-Picture) Unpacking �... - Page 4 Prepare necessary information � � � � � � � � � � � � � � � � � � � � � � � 63 Approval by eyevis � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 63 Service code: RMA number �...
-
Page 5: About This Manual
EYE-LCD-8500-QHD-LD About this manual Read and pay attention to this manual. It contains important information on the product. In particular, note all of the safety instructions and warnings. Keep this manual in a safe place! Warnings used NOTICE Indicates a hazard that could lead to damage or destruction of the product. -
Page 6: Safety / Sicherheit / Sécurité
EYE-LCD-8500-QHD-LD Safety / Sicherheit / Sécurité Safety Safety precaution Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. - Page 7 EYE-LCD-8500-QHD-LD Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. • When the power cord or plug is damaged. • When a liquid was spilled on the product or when objects have fallen into the product.
- Page 8 If dust collects inside the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized Eyevis servicing dealer or service centre.
- Page 9 EYE-LCD-8500-QHD-LD The power cord Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Do not use damaged extension cords. Damage to the cord may result in fire or electric shock. Use only the power cord supplied with the monitor.
- Page 10 EYE-LCD-8500-QHD-LD NOTICE This is a class A product according EN 55022: 2010. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate counter measures. NOTICE To maintain compliance with EMC regulations, use shielded cables to...
-
Page 11: Zu Diesem Handbuch
EYE-LCD-8500-QHD-LD Zu diesem Handbuch Lesen und beachten Sie dieses Handbuch. Darin stehen wichtige Informationen zum Produkt. Beachten Sie insbesondere alle Sicherheits- und Warnhinweise. Bewahren Sie diese Anleitung sorgfältig auf! Verwendete Warnhinweise ACHTUNG Kennzeichnet eine Gefahr, die zur Beschädigung oder Zerstörung des Produkts führen kann. -
Page 12: Sicherheitsvorkehrungen
EYE-LCD-8500-QHD-LD Sicherheit Sicherheitsvorkehrungen Elektrizität erfüllt viele nützliche Aufgaben, kann aber auch Personen- und Sachschäden verursachen, wenn sie unsachgemäß gehandhabt wird. Dieses Produkt wurde mit Sicherheit als oberster Priorität konstruiert und hergestellt. Dennoch besteht bei unsachgemäßer Handhabung u.U. Stromschlag- und Brandgefahr. Um mögliche Gefahren zu vermeiden, befolgen Sie beim Aufstellen, Betreiben und Reinigen des Produkts bitte die nachstehenden Anleitungen. - Page 13 EYE-LCD-8500-QHD-LD Gegenständen besteht Stromschlaggefahr bzw. die Gefahr von Kurzschlüssen zwischen den Bauteilen. Aus demselben Grunde dürfen auch keine Flüssigkeiten auf das Gerät verschüttet werden. Wartung — Versuchen Sie auf keinen Fall, selbst Wartungsarbeiten am Gerät durchzuführen. Durch das Entfernen von Abdeckungen setzen Sie sich hohen Spannungen und anderen Gefahren aus.
- Page 14 Vermeiden Sie es, den Monitor mit harten Gegenständen abzureiben oder zu berühren. Wir bitten um Ihr Verständnis, dass eyevis über die gesetzlich anerkannte Leistungshaftung hinaus keine Haftung für Fehler übernimmt, die sich aus der Verwendung durch den Kunden oder einen Dritten ergeben, und auch nicht für sonstige Funktionsstörungen oder Schäden, die während der...
- Page 15 Staub im Inneren des Monitors ansammelt, kann es zu einer Überhitzung des Geräts und in der Folge zu einem Brand oder Fehlfunktionen kommen. Bitte lassen Sie das Innere des Monitors von einem autorisierten eyevis-Händler oder einem eyevis Servicecenter reinigen. Bilder können auf diesem Monitor nicht gedreht werden. Wenn Sie den Monitor in vertikaler Ausrichtung verwenden, müssen Sie die Bilder zuvor...
- Page 16 EYE-LCD-8500-QHD-LD ACHTUNG Dieses Gerät ist ein Produkt der Klasse A gemäß EN 55022: 2010. In Wohnräumen kann dieses Gerät Störsignale erzeugen, die durch entsprechende Abhilfemaßnahmen durch den Benutzer beseitigt werden müssen. ACHTUNG Verwenden Sie EMV-gerechte, abgeschirmte Kabel, um die folgenden Anschlüsse zu verbinden:...
- Page 17 EYE-LCD-8500-QHD-LD À propos de ce manuel Lisez et suivez ces instructions. Ils contient des informations importantes sur le produit. Faites particulièrement attention à toutes les consignes de sécurité et aux avertissements. Conservez ce manuel soigneusement! Des symboles d`avertissement utilisés ATTENTION Indique un danger qui peut endommager ou détruire le produit.
-
Page 18: Précautions De Sécurité
EYE-LCD-8500-QHD-LD Sécurité Précautions de sécurité L’électricité remplit de nombreuses fonctions utiles, mais elle peut provoquer des blessures et des dégâts matériels si elle n’est pas utilisée correctement. Cet appareil a été conçu et fabriqué en attachant la plus grande importance à la sécurité. - Page 19 EYE-LCD-8500-QHD-LD Entretien — N’essayez pas de réparer vous-même l’appareil. La dépose des couvercles peut vous exposer à une haute tension ou à d’autres dangers. Confiez toute réparation à un personnel qualifié. Réparation — Dans les cas suivants, débranchez le cordon d’alimentation au niveau de la prise secteur et demandez à...
- Page 20 Ne frottez pas, ne grattez pas le moniteur avec un objet dur. Il faut savoir que la Eyevis décline toute responsabilité en cas d’erreurs commises durant l’utilisation par le client ou par une tierce personne, ainsi qu’en cas de dysfonctionnement ou de dommage survenu à...
- Page 21 EYE-LCD-8500-QHD-LD Veuillez vous assurer que la prise est installée près du système et est facilement accessible. Le cordon d‘alimentation est un dispositif de déconnexion. Le cordon d’alimentation N’endommagez pas le cordon d’alimentation, ne déposez pas d’objets lourds sur le cordon d’alimentation, ne tirez pas dessus et ne le pliez pas de manière excessive.
- Page 22 EYE-LCD-8500-QHD-LD ATTENTION Ce produit appartient à la Classe A d‘après la norme EN 55022: 2010. Dans un environnement résidentiel, il peut provoquer des interférences radio et, dans ce cas, l’utilisateur peut être obligé de prendre les mesures nécessaires. ATTENTION Afin de satisfaire aux normes EMC, utiliser des câbles blindés pour connecter les bornes suivantes : Borne de sortie PC/AV DVI-D, borne d’entrée PC/AV DVI-D, borne d’entrée...
-
Page 23: About Our Product
EYE-LCD-8500-QHD-LD About our Product eyevis new 85” Ultra-HD LCD EYE-LCD-8500-QHD-LD represents the latest state-of-the-art in the fields of professional 4K/Ultra-HD monitor solutions. With a pin-sharp resolution of 3840×2160 pixels and a frame rate of 60 Hz this new device delivers perfectly smooth and vivid images with high quality contents. -
Page 24: Packaging
EYE-LCD-8500-QHD-LD Packaging Unpacking The EYE-LCD-Series display is packed with EPE cushion to protect the device during shipping. To unpack the device: Before unpacking your device, prepare a stable, level, and clean surface near a wall outlet. Place the LCD monitor box in an upright position and open from the top of the box to remove the cushion. -
Page 25: Accessory Box
EYE-LCD-8500-QHD-LD Accessory box Tab. 2: Content of accessory box Item Power cord HDMI cable VGA cable (Sub-D) IR Extender Remote Control Batteries (AAA, in remote control included) USB cable (at touch versions available) CD-ROM (Driver and manual) User Manual Hooks (M8) Tab. -
Page 26: Connectors And Connections
EYE-LCD-8500-QHD-LD Connectors and Connections Main power switch and AC inlet The included power cord is used to connect the side controls of the LCD monitor and the wall outlet. ► Connect the power cord into main power of the monitor, “I” is power ON, “O”... -
Page 27: Input And Output Connections
EYE-LCD-8500-QHD-LD Input and output connections Fig. 3: Rear view of display Tab. 4: Overview of connections Name Connector Remarks 1× RS232C In D-Sub 9 pin Communication Port 1× USB3.0 USB Type A 1× LAN In RJ-45 Communication Port 1× OPS Slot 4×... -
Page 28: Operating The Display
EYE-LCD-8500-QHD-LD Operating the Display NOTE The pictures are for illustration purposes and may differ from the originals. Setup process Plug in the power cable and turn on the main power switch (without turning on the signal source device(s)). "I " = Power ON "O"... -
Page 29: Turning Display On And Off
EYE-LCD-8500-QHD-LD Turn on the power of the signal source device(s) to begin sending signal to the display. Turning display on and off Turning the display on Connect the display to an AC power outlet. Power on by switching the main power switch to “I”. -
Page 30: Osd Keypad, Ir-Sensor, Led
EYE-LCD-8500-QHD-LD OSD Keypad, IR-Sensor, LED Fig. 4: Rearview of display 1 Ambient light sensor 2 IR receiver 3 LED indicator light 4 OSD keypad Ambient light sensor An ambient light sensor automatically adjusts the optimal display illumination depending on ambient light. -
Page 31: Osd Keypad Function List
EYE-LCD-8500-QHD-LD OSD keypad function list Basic functions of OSD keypad and remote control Description Power Standby button Source Source selection; Activate selection ► Menu right / value increasing ◄ Menu left / value decreasing ▲ Menu up ▼ Menu down... -
Page 32: Avoiding Image Retention
EYE-LCD-8500-QHD-LD Avoiding image retention Fixed images displayed over a long periods of time may cause image retention. Image retention is not covered under warranty. ► Set IRFM (Image Retention Frame Motion) to ON: To avoiding image retention, we recommend to set the IRFM feature to "ON". -
Page 33: Installing Touch-Screen
EYE-LCD-8500-QHD-LD Installing touch-screen In this section you will find all information about touch screen installation. Only for displays variants with touch-screen option: • EYE-LCD-8500-QHD-LD-TOUCH(AG)-6IR • EYE-LCD-8500-QHD-LD-TOUCH(AG)-32IR Connecting the touch screen NOTE: If an EPU is installed, the EPU will automatically be connected internally to the touch system. -
Page 34: Installing The Multi-Touch Software
EYE-LCD-8500-QHD-LD Installing the Multi-Touch software NOTE The illustrations and certain descriptions of the software may vary due to development process. For the full functionality, the true Multi-Touch touch screen requires drivers. Insert the attached Installation-CD into the dedicated PC´s CD-ROM drive. - Page 35 EYE-LCD-8500-QHD-LD Accept the terms of the License Agreement then press NEXT > to continue. Press to continue. INSTALL Press on to continue. ”INSTALL THIS DRIVER SOFTWARE ANYWAY” Press FINISH to continue. After installation a new icon appears in the Windows notification area.
-
Page 36: Calibrating The Touch Screen
EYE-LCD-8500-QHD-LD Calibrating the touch screen NOTE: Before operating the touch screen, you need to calibrate it. ► First close all applications so that you have a clear desktop with the normal mouse pointer showing. To enter calibration mode: Double press icon in the Windows notification area. - Page 37 EYE-LCD-8500-QHD-LD Touch the small cross on the screen until it becomes green, then lift your finger from the screen. Touch the small cross Remove your finger Repeat the process at all quadrants. Touch the small cross Remove your finger Repeat the process at all quadrants.
-
Page 38: Controlling The Display
EYE-LCD-8500-QHD-LD Controlling the display The Remote Control (RC) The menu functions of the OSD menu can be accessed with the eyevis Remote-Control (RC). ► To use the RC aim at the display’s IR-Receiver. Opening the On-Screen-Display (OSD) ► Press the button to open the OSD Menu on the screen. -
Page 39: Overview Remote Control Functions
EYE-LCD-8500-QHD-LD Overview remote control functions Tab. 6: Overview of button functions ON/OFF Turns the monitor ON/OFF INFO Provides source and resolution information Selects the PC RGB source Not available at this model. HDMI 1 Selects the HDMI 1 source COMP Not available at this model. -
Page 40: Changing The Remote Control Batteries
EYE-LCD-8500-QHD-LD Changing the remote control batteries Remove the battery cover Slide back and remove the battery cover in the direction of the arrow. Insert the batteries Align and insert two AAA batteries according to their plus and minus ports (as indicated on the button of the battery case of the remote control). -
Page 41: Using Pip (Picture-In-Picture)
OSD menu, see chapter „Input menu“ on page 45. TIP: Some functions can be performed directly using the remote control. The PIP modes Following PIP modes are available for the EYE-LCD-8500-QHD-LD display: PIP (Picture-in-Picture): Main An additional selected input source is displayed in the active main picture. -
Page 42: Window Positions Of The Pip
EYE-LCD-8500-QHD-LD Window positions of the PIP The position of the PIP window can be moved to different positions. To move the PIP window use the remote control. To adjust the PIP position using the remote control: Press and use the arrow buttons ( ▼▲... -
Page 43: Pip Swap Function
EYE-LCD-8500-QHD-LD PIP SWAP function The main input source and the sub source can be swapped with the SWAP button. To swap the sources use the remote control. To swap the main and sub source using the remote control: Press and use the arrow buttons ( ▼▲... -
Page 44: Using The On-Screen-Display (Osd) Menus
EYE-LCD-8500-QHD-LD Using the On-Screen-Display (OSD) menus NOTE: The user interface of the OSD menu depends on the version of the firmware. The appearance may vary but the functions are still available. Navigating through the menu system Opening the On-Screen-Display (OSD) ►... -
Page 45: Osd Menu Overview
EYE-LCD-8500-QHD-LD OSD menu overview Input menu This menu is used for common source adjustments. ► > Input > Input Main Input • DisplayPort1 Picture Auto Scan • Off Audio PiP Mode • Off OSD Settings Sub1 Input • OPS Setup Sub2 Input •... -
Page 46: Picture Menu
EYE-LCD-8500-QHD-LD Picture menu This menu is used for making common picture adjustments. ► > Picture > Input Picture Format • Full Screen Full Screen Picture Scheme • User Audio Contrast • OSD Settings Brightness • Setup Sharpness • Adv. Setup •... -
Page 47: Color Temp & Gamma Menu
EYE-LCD-8500-QHD-LD Color Temp & Gamma menu This menu is used for making common color temperature and gamma adjustments. ► > Picture > Color Temp & Gamma > Input Picture Format • Gamma Picture Scheme • Audio Contrast • OSD Settings Brightness •... -
Page 48: Audio Menu
EYE-LCD-8500-QHD-LD Audio menu This menu is used for adjusting audio settings. ► > Audio > Input Volume • Picture Treble • Audio Bass • OSD Settings Balance • Setup Internal Speaker • Adv. Setup Audio Source • DisplayPort1 Communication •... -
Page 49: Osd Menu
EYE-LCD-8500-QHD-LD OSD menu This menu is used to make initial set-up adjustments to the OSD (On-Screen Display) menu and other On-Screen messages. ► > OSD Settings > Input Horizontal • Picture Vertical • Audio Transparency • OSD Settings OSD Time Out •... -
Page 50: Setup Menu
EYE-LCD-8500-QHD-LD Setup menu This menu is used for adjusting common setup settings. ► > Setup > Input Auto Adjustment • Picture H. Position • Audio V. Position • OSD Settings Phase • Setup Clock • Adv. Setup Zoom • Communication Power LED •... -
Page 51: Real Time Clock Menu
EYE-LCD-8500-QHD-LD Real Time Clock menu This menu is used for adjusting real time clock settings. ► > > Current Time 2015 / / 31 23 : 59 Thursday Timer Mode User Mode Week Enable Power On Power Off Monday 00 : 00... -
Page 52: Advanced Settings Menu
EYE-LCD-8500-QHD-LD Advanced Settings menu This menu is used for adjusting advanced settings of the display. ► > Adv. Settings > Input Smart Light Control • Picture IRFM • Audio Noise Reduction • OSD Settings Wake Up From Sleep • VGA Only Setup DP. -
Page 53: Communication Menu
EYE-LCD-8500-QHD-LD Communication menu This menu is used for adjusting communication settings. ► > Communication > Input • Baud Rate 115200 Picture • Enable Network Audio • IP Address Settings >>> OSD Settings • Power Status Alert Setup • Source Status Alert Adv. -
Page 54: Ip Address Settings Menu
EYE-LCD-8500-QHD-LD IP Address Settings menu This menu is used for adjusting communication settings. ► > Communication > IP Address Setting > Dynamic IP Disable Static IP Address 0 • 0 • 0 • Subnet Mask 0 •... -
Page 55: Information Menu
EYE-LCD-8500-QHD-LD Information menu This read-only menu provides information on the active sources and the installed firmware version. ► > Information > Input Main: • 3840x2160@60Hz Picture • Audio • OSD Settings • Setup • Adv. Setup • Communication 8500-QHD-LD •... -
Page 56: Troubleshooting Guide
EYE-LCD-8500-QHD-LD Troubleshooting guide Before calling service personnel, please check the following chart for a possible cause of the trouble you are experiencing. Symptom Check these things • No picture Check if the power cord is plugged in. • Check if the power is not OFF or standby. -
Page 57: Effects In Continuous Operation Of Lcds
EYE-LCD-8500-QHD-LD Effects in continuous operation of LCDs False installation or use of the display during operating time may bring undesirable partly visible effects. The internal structure of LCD panel may be changed by outside influences with partly visible effects. Image sticking This phenomenon which named alternatively "image retention", "ghost image",... -
Page 58: Prevention Of Undesirable Effects
EYE-LCD-8500-QHD-LD Prevention of undesirable effects NOTICE! Reduce ambient temperature ► Operate the device at an ambient temperature of max. 25°C. ► Ensure that the ventilation slots of the display are not covered or polluted by dust. NOTICE! Avoid direct sunlight This extends the life-time of the display an reduce the risk of undesirable effects. -
Page 59: Evaluation Of Visual Range
EYE-LCD-8500-QHD-LD Evaluation of visual range Pollutions By the production process and handling of the displays occurs kinds of pollution in range of vision. It applies to inclusions, blistering, depressions, marks, scratches. The following tolerance limits is specified for bonded glass... -
Page 60: Overview Acceptable Total Number Of Dot Defects
EYE-LCD-8500-QHD-LD Overview acceptable total number of dot defects Isolated pixel errors can not be eliminated for production reasons. The standard ISO 9241-307 specify the acceptable total number of dot defects for class II panels. You can see the tolerance limits in the following table: Tab. -
Page 61: Warranty Terms And Conditions
Repair and return The defective product has to be sent to eyevis by the customer and is repaired within 21 days. In this case, eyevis bears the costs for required components that may be required or the arising working time, as well as for the costs for reshipment to the customer. -
Page 62: Warranty Exclusions
General exclusions This warranty covers only malfunction due to any defect in material and/or workmanship of a product put into circulation by eyevis . A guarantee is therefore excluded for any faults and defects beyond the responsibility of the eyevis, particularly in cases of: •... -
Page 63: Advised Procedure For Raising A Claim
The customer has to pack the defective device properly in the original box, to label it as fragile, and to attach the RMA number visibly on the box. eyevis can provide a new original box on request. The customer is liable for damages caused by the use of improper or unsuitable packaging. -
Page 64: Limitations Of Liability
The warranty shall not apply to repairs or service necessitated by normal wear and tear or for lack of reasonable and proper maintenance. As far as the liability of eyevis is excluded or limited, this also applies to the personal compensation liability of its staff, employees, associated employees, agents, and auxiliary persons. -
Page 65: Appendix
EYE-LCD-8500-QHD-LD Appendix Appendix: Technical specification LCD PANEL EYE-LCD-8500-QHD-LD Screen Size: 85“ (ca. 216 cm) Brightness: 500 cd/m (typ.) Contrast: 3000:1 (typ.) Backlight: Direct-LED Active Screen Area: 1872 (H) × 1053 (V) mm Pixel Pitch: 0.4875 × 0.4875 mm Colours: 1.07 G Colours (10bit) Response Time: 6.5 ms (typ.) - Page 66 EYE-LCD-8500-QHD-LD Appendix: Technical specification LCD PANEL EYE-LCD-8500-QHD-LD-TOUCH(AG)-6IR EYE-LCD-8500-QHD-LD-TOUCH(AG)-32IR Screen Size: 85“ (ca. 216 cm) Brightness: 500 cd/m (typ.) Contrast: 3000:1 (typ.) Backlight: Direct-LED Active Screen Area: 1872 (H) × 1053 (V) mm Pixel Pitch: 0.4875 × 0.4875 mm Colours: 1.07 G Colours (10bit) Response Time: 6.5 ms (typ.)
-
Page 67: Appendix: Dimensions
EYE-LCD-8500-QHD-LD Appendix: Dimensions EYE-LCD-8500-QHD-LD Dimensions in mm. Version 1.3 | June 2015... - Page 68 EYE-LCD-8500-QHD-LD EYE-LCD-8500-QHD-LD-TOUCH(AG)-6IR Dimensions in mm. User Manual...
-
Page 69: Appendix: Mounting And Handling
The display housing has VESA approved M8 threats on the backside that allow their quick and simple mounting. eyevis provides an optionally wall-mounting kit for the EYE-LCD-8500-QHD-LD displays. These wall-mounting kits consist of wall-mounting brackets that have to be fixed to the backside of the display and an according wall-fixture. -
Page 70: Appendix: Rs232 Protocol
EYE-LCD-8500-QHD-LD Appendix: RS232 protocol RS232 command format Format: STX(1byte)+IDT(1byte)+Type(1byte)+CMD(3bytes)+[Value/Reply(1byte)]+ETX(1byte) STX: Start byte = 07 IDT: Do not care. Type: Read or write command, 01: read, 02: write; 00: return to host (from display) CMD: as following tables Value: Setting value of “Write Command”... - Page 71 EYE-LCD-8500-QHD-LD Main Control Value Type Reply (DEC) Content Remark Item Item (DEC) (HEX) Off (soft power) ▲ Power Control 50 4F 57 On (soft power) ▲ DisplayPort1 DisplayPort2 HDMI1 Input Source HDMI2 4D 49 4E HDMI3 HDMI4 ● ● 0-100...
- Page 72 EYE-LCD-8500-QHD-LD Main Control Value Type Reply (DEC) Content Remark Item Item (DEC) (HEX) 0-99 0-99 Year 52 54 59 1-12 1-12 Month 52 54 4D Current Time 1-31 1-31 52 54 44 Adjustment 0-23 0-23 Hour 52 54 48 0-59...
- Page 73 EYE-LCD-8500-QHD-LD Main Control Value Type Reply (DEC) Content Remark Item Item (DEC) (HEX) 0-255 0-255 Subnet Mask 4 4D 4B 34 0-255 0-255 Gateway 1 47 57 31 0-255 0-255 Gateway 2 47 57 32 0-255 0-255 Gateway 3 47 57 33...
-
Page 74: Display Adjustment
EYE-LCD-8500-QHD-LD Examples: Power Control and Input Source Turn (01) display power off [CMD: POW] [Transmit] : PC → 07 01 02 50 4F 57 00 08 → Display [Return] : Display → 07 01 00 50 4F 57 00 08 → PC Turn (01) display power on [CMD: POW] [Transmit] : PC →... -
Page 75: Appendix: Timings
EYE-LCD-8500-QHD-LD Appendix: Timings Dot clock Timing fH (kHz) fV (Hz) HDMI (MHz) 31,469 59,94 25,175 37,861 72,809 31,5 640x480 37,5 31,5 43,269 85,008 35,156 56,25 37,879 60,317 SVGA 48,077 72,188 800x600 46,875 49,5 53,674 85,06 56,25 48,363 60,004 56,476 70,069... - Page 76 EYE-LCD-8500-QHD-LD Dot clock Timing fH (kHz) fV (Hz) HDMI (MHz) 37,5 74,25 720p 44,995 59,94 74,176 1280x720 74,25 28,13 74,25 1080i 33,716 59,94 74,176 1920x1080 33,75 74,25 HDTV 74,25 28,125 74,25 33,75 74,25 1080p 1920x1080 56,25 148,5 67,433 59,94 148,352...
-
Page 77: Index
EYE-LCD-8500-QHD-LD Index ACCESSORIES LEGAL SERIAL NUMBER ACCESSORY BOX LIMITATIONS SERVICE APPENDIX SHADE FORMATION DIMENSIONS MOUNTING MALFUNCTION RS232 PROTOCOL MENUS TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION NAVIGATING TIMINGS TIMINGS TOLERANCE LIMITS MOUNTING TOUCH SCREEN MURA BATTERIES CALIBRATING BRIGHT PIXEL CONNECTING INSTALLING SOFTWARE NAVIGATING... - Page 78 Fax: +49 (0)7121-4 33 03-22 Hotline: +49 (0)7121-4 33 03-290 (netPIX & eyeCON) Hotline: +49 (0)7121-4 33 03-291 (Cubes & Displays) web: www.eyevis.de e-mail: info@eyevis.de service@eyevis.de service: Version: 1.2 | May 2015 Copyright © 2015 eyevis GmbH. All rights reserved.
