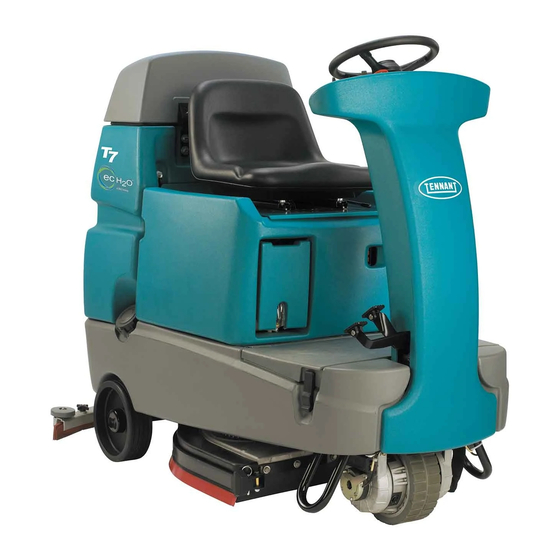

Tennant T7 Instruction Bulletin

Hide thumbs Also See for T7:

Advertisement

Quick Links

Download this manual See also: Service Information Manual, Operator's Manual
INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9013914 (Europe)
SYNOPSIS:
This kit contains the parts needed to install a telemetry kit onto T7 European scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2 hours)
The IRIS (telemetry module) must be activated to complete this installation. The module will
not function until it is activated . Call local IRIS expert for assistance activating the module
after all telemetry components have been installed. Have machine serial number and IRIS
module SIM number (located on back of IRIS control box assembly) ready when calling for
activation.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
PREPARATION:
1. Machines equipped with ec- H2O only:
Confirm the ec- H2O system is fully functional.
The ec- H2O must be fully functional before
the IRIS system can be installed.
2. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
IB 9013780 (02- 2016)
No. 9013780
Machine: T7 (Europe)
Published: 02- 2016
Rev. 05
3. Evaluate the condition of batteries, cables,
and terminal connections. Batteries / cables
/ terminal connections must all be in safe
working condition.
4. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the T7 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant T7

Summary of Contents for Tennant T7

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9013914 (Europe) SYNOPSIS: This kit contains the parts needed to install a telemetry kit onto T7 European scrubbers. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE (Estimated time to complete: 2 hours) The IRIS (telemetry module) must be activated to complete this installation.

  • Page 2: Kit Installation

    5. Disconnect the main wire harness from the KIT INSTALLATION: seat and remove the seat assembly from the NOTE: Numbers in parenthesis ( ) are reference machine. Set the seat assembly aside. numbers for parts listed on page 10. (Fig. 1) 1.
  • Page 3 3. Use four M6 Sems hex screws (4) and the 6. Use four tie clips (15) and four cable ties to control box guard (2) to install the telemetry secure the antenna (5) cable to the battery control box (1) and guard cover (3) onto the box cover.
  • Page 4 7. Use one M8 hex screw (12), one flat washer 9. Use one M4 pan screw (9), one lock washer (13), and one lock washer (14) to connect the (10), and one flat washer (11) to connect the cable assembly(17) BLACK cable to the shunt telemetry shunt harness (19) 79 / WHT wire (8).
  • Page 5 11. Slide the heat shrink (21) over the shunt (8) 14. Use the two wire ties (6) on the shunt bracket wire connections on the shunt and apply heat (7) to secure the shunt (8) and the telemetry to heat shrink. (Fig. 8) harness (16) battery connector to the shunt bracket.
  • Page 6 16. Route and connect the battery cable 18. Route and connect the black shunt cable (18) assembly (17) to the M1 main contactor to the negative ground stand-off where the where the removed red battery cable was removed battery cable was previous installed. previous installed.
  • Page 7 19. Machines equipped with ec-H2O NanoClean B. Remove about 152mm of the braided system: Locate the factory installed brown wire insulator from the end of the ec- H2O labeled “Telemetry” coming from the ec-H2O connector harness. module harness. Connect the telemetry harness Locate wire 22/BRN and add T- tap connector (16) wire 22/BRN into the factory installed wire.
  • Page 8 20. Connect the telemetry harness (16) to the 22. Replace the inline fuse within the telemetry telemetry shunt harness (19). (Fig. 20) harness. (Fig. 22) Fig. 22 23. Reinstall the battery box cover onto the Fig. 20 machine (Fig. 23). 21.
  • Page 9 Telemetry Electrical Schematic IB 9013780 (02- 2016) Page 9 of 11...
  • Page 10 Telemetry Kit, CI [T7, EU] - 9013914 From: On-board chargernegative cable 9 10 Page 10 of 11 IB 9013780 (02- 2016)
  • Page 11 Telemetry Kit, CI [T7, EU] - 9013914 Tennant Part No. Ref. Description Qty. 1070541 Control box Assy, Telem [3G, Intl.] 1218315 Guard Wldt, Control box 1216835 Cover, Guard 1036892 Screw, Hex, M6 X 1.00 X 25, 9.8, SEMS 1070659 Antenna, Telem, 70 In [GPRS] 130773 Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max.
