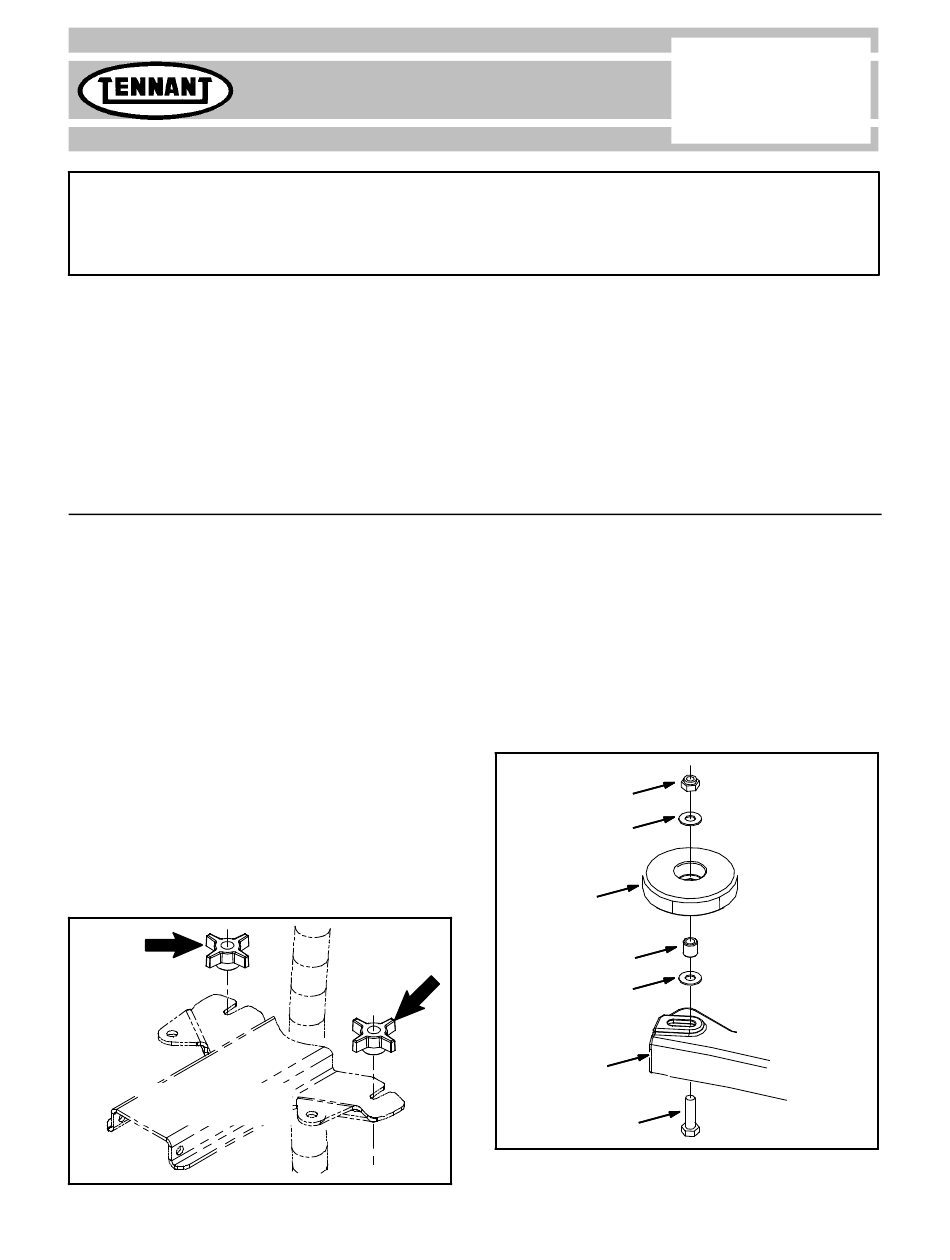

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE:Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9000145

SYNOPSIS / PROBLEM:

This kit contains the parts needed to install a 800 mm squeegee onto the T7/SSR model scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)

PREPARATION:

1. Stop machine on a clean level surface.
2. Raise the scrub head to the raised position.
3. Turn off the machine and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, and turn off the
machine.

INSTALLATION:

1. Remove the vacuum hose from the rear
squeegee assembly. Refer to Fig. 8.
2. Remove the knobs holding the rear squeegee
assembly onto the lower squeegee channel
arm. Refer to Fig. 1.
Lower squeegee
channel arm
FIG. 1
IB 340756 (02- 2019)
3. Remove the rear squeegee assembly from the
machine.
NOTE: For the remainder of this Instruction Bulletin,
refer to Fig. 8 for part locations and orientation of
parts on the squeegee assembly.
4. Use the provided hex screws (8), flat washers
(9), sleeves (10), and hex nuts (11) to install a
bumper wheel (7) onto each end of the new
squeegee frame (1). Refer to Fig. 2.
11
9
7
10
9
1
8
FIG. 2
No. 340756
Machine: T7, SSR
Published: 02-2019
Rev. 02
1
