Servicing a CX700 SPE

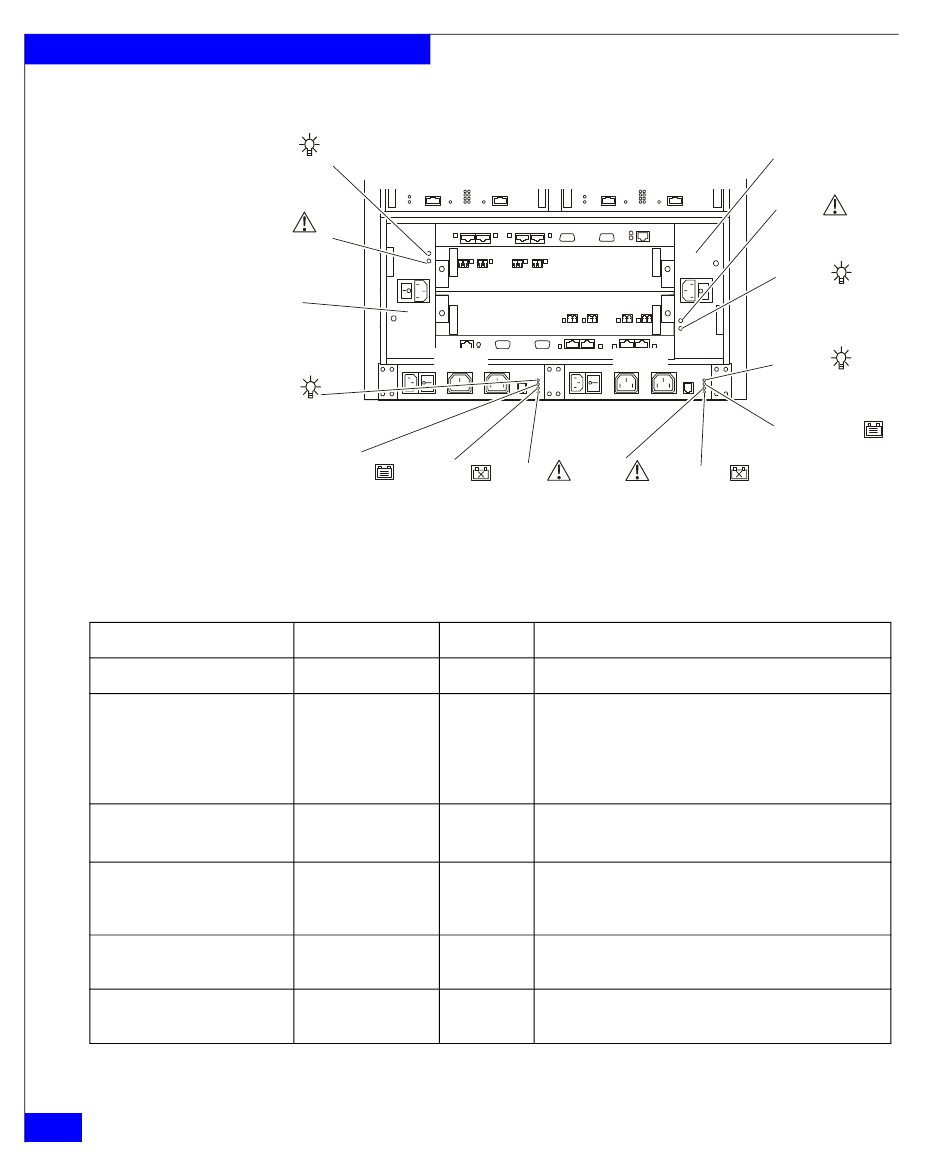

Figure 3-4
Table 3-3
LED
Power Supply Active LED
Power Supply Fault LED
SPS Active LED
SPS On Battery LEDs
SPS Replace Battery
SPS Fault
3-6 CX700 Hardware Reference
Active
(Green)
Fault
(Amber)
Power
Supply B
Active
(Green)
On Battery Replace
(Amber) Battery
(Amber)

Power Supply and SPS Status LEDs

Meaning of the Power Supply and SPS Status LEDs
Quantity
1 per supply
1 per supply
1 per SPS
1 per SPS
1 per SPS
1 per SPS
SPS B SPS A
Fault Fault
(Amber)
(Amber)
Color Meaning
Green On when the power supply is operating.
Amber On when the power supply is faulty or if one of the two is
not receiving ac line voltage.
Flashes when system has been shut down due to a
multiple fan fault or ambient over-temperature.
Green On when the SPS is ready and operating normally.
Flashes when SPS is re-charging.
Amber On to indicate the ac power line is no longer available
and the SPS is supplying dc output power from its
battery.
Amber On to indicate the SPS battery pack can no longer
support loads. Replace the SPS as soon as possible.
Amber On to indicate the SPS has an internal fault. Replace the
SPS as soon as possible.
Power
Supply A
Fault
(Amber)
Active
(Green)
Active
(Green)
On Battery
(Amber)
Replace
Battery
EMC2299
