DECIBELL

2.1 PIEZO Connector

The DECIBELL incorporates 2 x PIEZOs that connect to the PCB. These can be disconnected while
installing the system so that the loud noise will not be a distraction, or you can use the test feature –
please see page 6. The connectors are shown in Figure 1 on page 4.

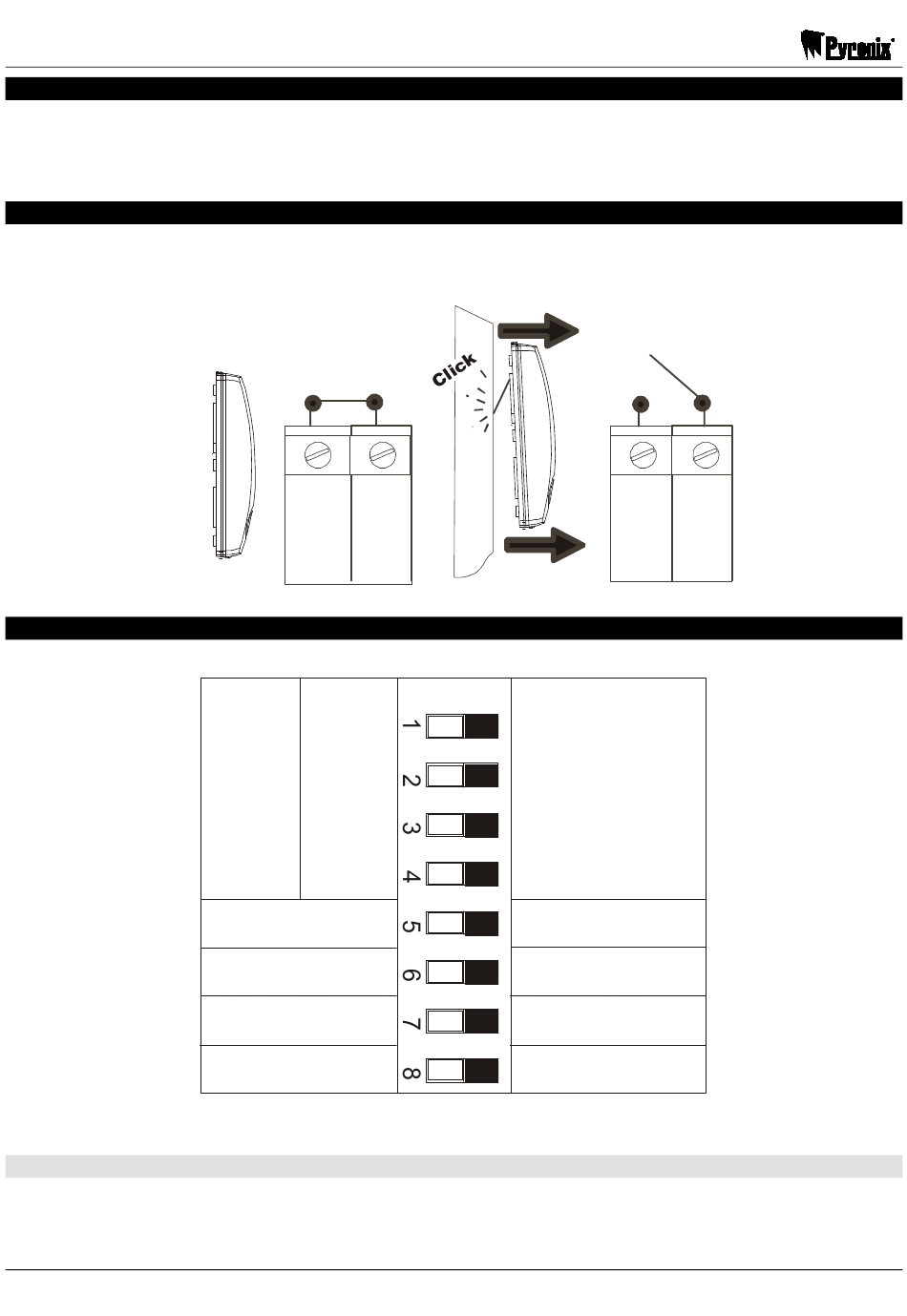

2.2 Rear Tamper

The DECIBELL is fitted with a rear tamper switch, operated by removing the DECIBELL from the
wall. The tamper switch can be adjusted by carefully bending the metal spring.

2.3 Dip Switches

DIP Switches 1, 2, 3 and 4

DIP switches 1, 2, 3 and 4 are used to select the timers for the Decibell sounders.
Please see the following page for the different timings.
RINS040-5
TAMP TAMP
FEED RET
(BT)
2
3
ON
5
10
FLASH
STB-
BELL-
SND
TAMP TAMP
FEED RET
(BT)
OFF
LED ON
STB+
BELL+
SND B
Page: 5
