3. WIRING BELL TAMPER TO CONTROL PANEL ZONES

The examples below show how to connect the bell tamper to the Matrix 6 / 816 systems, this system
uses a zone as a tamper circuit.

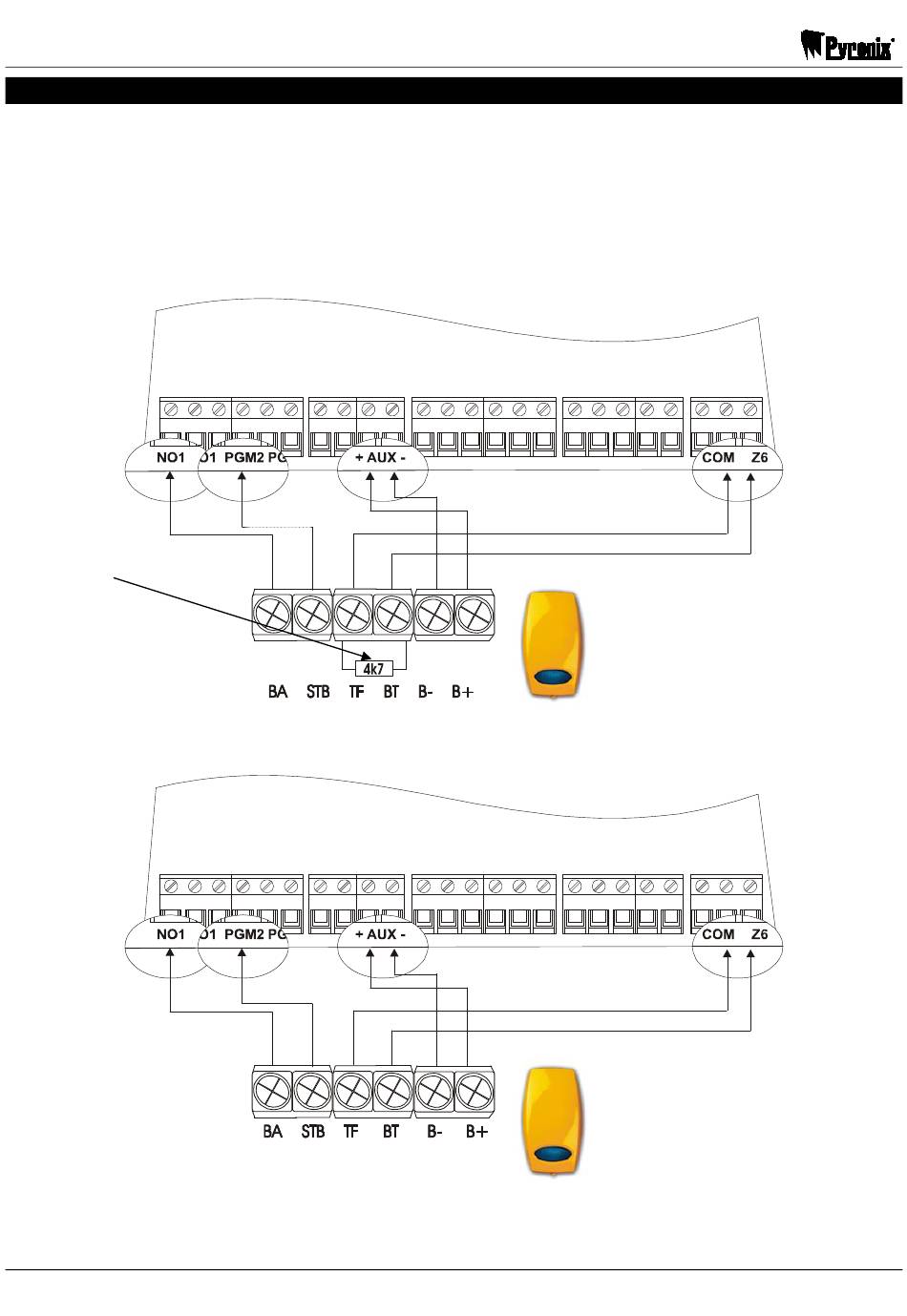

If the alarm panel requires end of line resistors, wire the DECIBELL as the below diagram.
Please note that the resistance value will change depending on the alarm panel (please refer to the
installation manual of that alarm system).
Matrix 6 / 816
NO1
EOL
Resistor
If the alarm panel is wired normally closed, wire the DECIBELL as the following:
Matrix 6 / 816
NO1
RINS040-5
C1 NO1 PGM2 PGM3 PGM4 PGM5 PGM6
C1 NO1 PGM2 PGM3 PGM4 PGM5 PGM6
+ AUX - K+ KD K- Z1 COM
+ AUX - K+ KD K- Z1 COM
Z2 Z3 COM Z4 + AUX - Z5
Z2 Z3 COM Z4 + AUX - Z5
COM Z6
COM Z6
