DECIBELL

2.7 LED Connector

The DECIBELL has two operating LED's that indicate that the DECIBELL is powered. These are
seen through the front lid cover. If it is preferred that these are disabled simply disconnect the
harness from the connector, or you can choose to have the LED illuminated all the time, see page 6.

2.8 Terminal Connections

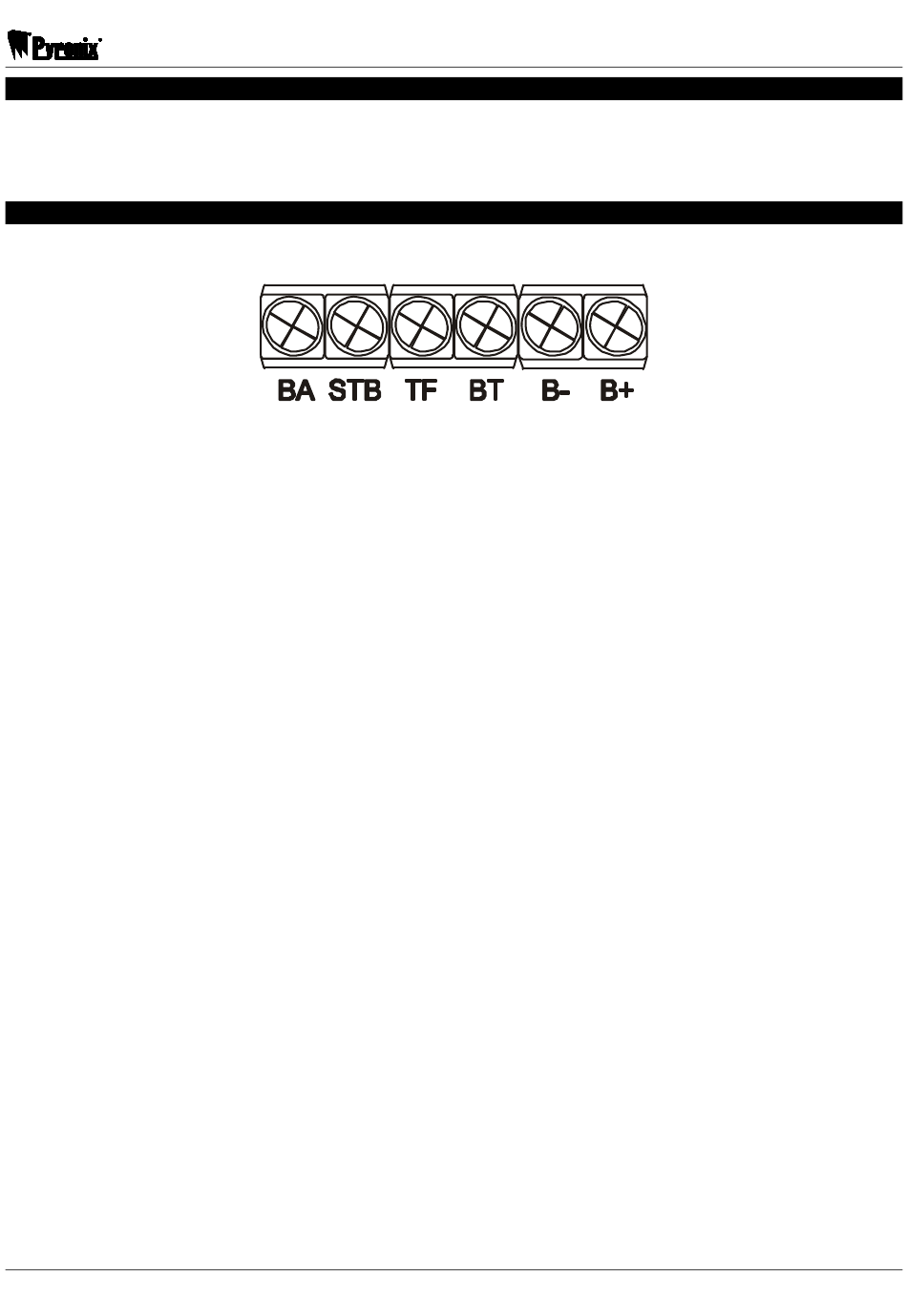

The Terminal Connections for the Decibell are as follows:
BA...............Bell Trigger Terminal
STB.............Strobe Trigger Terminal
TF...............Bell Tamper Feed
BT...............Bell Tamper Return
B+...............12V Positive Hold Off (+)
B-................0V Negative Hold Off (-)
Page: 10 RINS040-5
