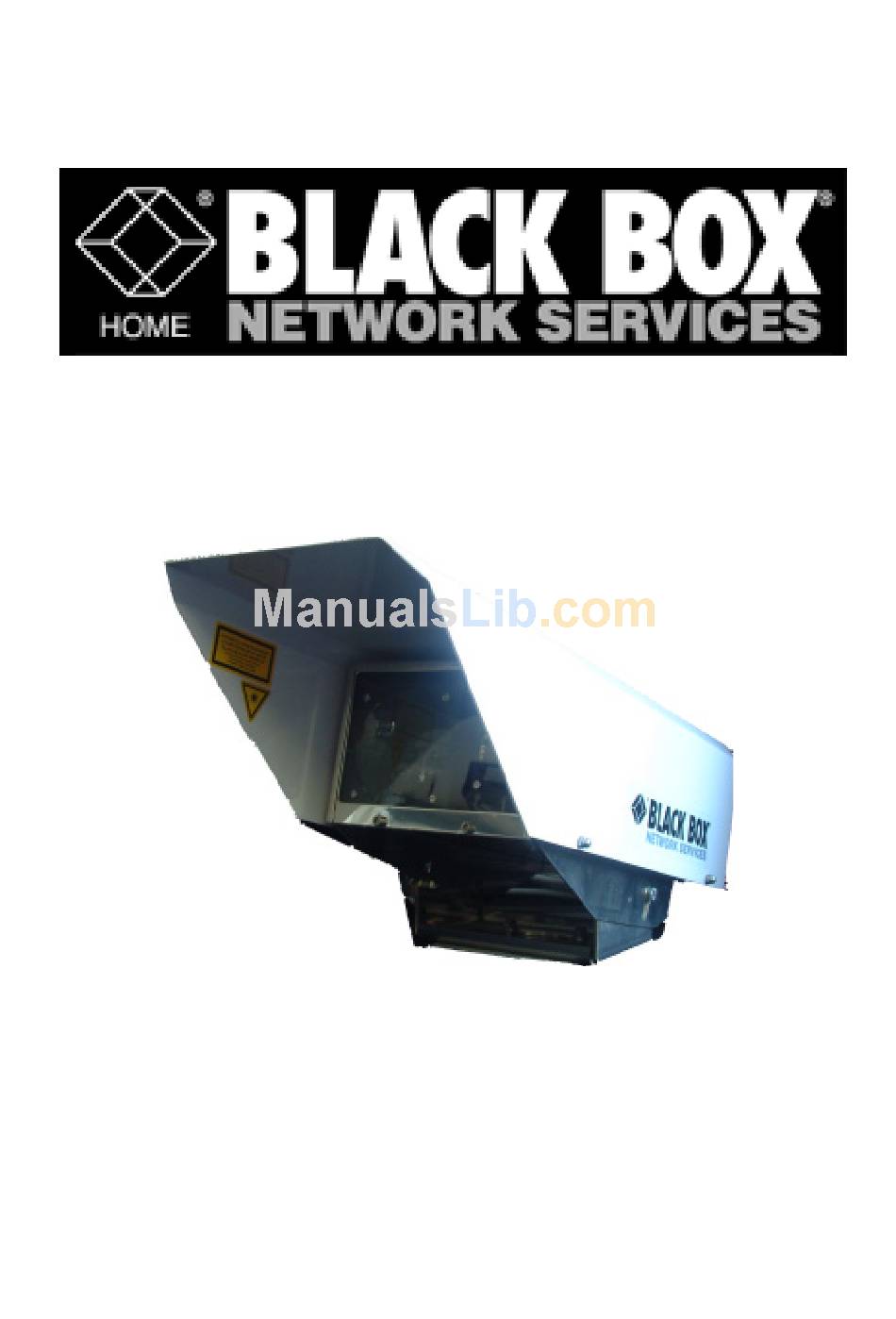

- Page 1 Black Box Networks P ICO systems Pico Manual v5.1 User's Manual V5.1 Black Box Networks P ICO systems V5.1...
-
Page 2: Table Of Contents
Black Box Networks P ICO systems Table of contents: Characteristics:... 8 Features... 9 Accessories ... 9 Optical free space transmission... 10 Areas with natural or artificial obstacles... 11 Urban areas ... 11 Industrial areas ... 11 ISP connections... 12 Installation procedures ... 13 2.1 System set-up overview ... - Page 3 See attached data sheet for exact figures. The Black Box product should be installed in such a way that nobody can access the optical window or can get in the way of the laser beam accidentally. For detailed instructions please read Eye Safety part of chapter 4.5 of the manual (Site Survey).
- Page 4 Laserleistung und Divergenz des Laserstrahl. Details hierzu sind im Datenblatt nachzulesen. Das Black Box Produkt muß so installiert werden, daß niemand Zutritt zu der Optik des Laserkopf hat oder zufällig in den Bereich des Laserstrahl kommen kann. Kapitel 4.5 auf des Handbuchs enthält ausführliche Anweisungen zum Schutz der Augen.
- Page 5 Consulter la feuille de données ci-jointe pour calculs exacts. L’installation de produit Black Box doit être faite de sorte que personne ne puisse accéder à la fenêtre optique ou traverser le rayon laser par accident. Pour instructions détaillées, lire la partie Sécurité de l’œil dans le chapitre 4.5 du manuel (Site Survey) à...
- Page 6 Sicurezza dei prodotti Black Box Black Box e classificáto di essere un Classe 3B prodotto di lazer. Il sistema Black Box e stato collaudato e trovato conforme con EN 60825-1:1994 +A11:96 (sicurezza sul prodotti lazer), EN 60950-1:92+A1:93+A2:93+A3:95+A4:97 (sicurezza eletrica), EN 55022:1998 Class B (emissione) ed EN 55024:1998 ed EN 50082-2:1995 (immunitá), Norme Europee.
- Page 7 • Only qualified technicians should repair the device. Unauthorized opening will result in warranty being void. This manual will show you how to install and use the Black Box PICO systems V5.1 Pico Manual v5.1 3B Class Laser device...
-
Page 8: Characteristics
Black Box Networks P ICO systems 1 Characteristics: Model Number Interfaces Distance in meter Electrical & Optical Characteristics XMT Power mW (max) Transmitter Wave Length (nm) Dynamic range Power Power to Head Environments Operating Temperature Storage Temperature Humidity Physical Characteristic... -
Page 9: Features
Black Box systems do not require frequency licenses and the transmission is not affected by electro-magnetic interference or radio frequency interference. The Black Box Pico link can be considered as a virtual fiber in the air, with standard Cat 5 connection at each end. -
Page 10: Optical Free Space Transmission
(depending on the weather conditions). The Black Box heads are usually placed on top of buildings, where clear line of sight is guaranteed and the beam cannot be interrupted. -
Page 11: Areas With Natural Or Artificial Obstacles
Appropriate interface converters are needed and system bandwidth must be matched for that. Here we collected some circumstances, where the employment of the Black Box is the most adequate and cost effective solution. Those are: 2.1 Areas with natural or artificial obstacles Where cable is actually not an alternative, like across rivers or railways or in rugged terrain. -
Page 12: Isp Connections
Black Box Networks P ICO systems 2.4 ISP connections Where high bandwidth is required. ISP’s can offer high-speed links to their customers or trunks can be established between ISP’s instead of expensive leased lines. C orporate LA N V5.1 Pico Manual v5.1... -
Page 13: Installation Procedures
ICO systems 3 Installation procedures 3.1 System set-up overview The set up of a Black Box link needs careful planning, thorough site preparation, and accurate installation. We have listed the work that is essential for a successful system set up. -
Page 14: Site Survey
It is not only the building that has to be solid, but the support structure too. Antenna poles, security camera holders are not suitable for the Black Box units. A catalogue of more than 80 mounting frames can be ordered from the manufacturer (both available in printed and CD ROM format. -
Page 15: Distance Determination
Black Box Networks P ICO systems Preferred installation sites Concrete wall Brick wall In cases where installations are listed under “AVOID” cannot be avoided than special mounting accessories to be designed and special installations must be used. 4.3 Distance determination Try to get as accurate information about the connection distance as you can in order to get the maximum performance out of the system. -
Page 16: Eye Safety
Black Box Networks P ICO systems 4.5 Eye safety No two installations sites are the same. The buildings or structures, the available space and the accessibility of the place will be different in each case. Nevertheless, as a general rule it is very important to select the installation site so, that nobody can look directly into the transmitter. -
Page 17: Installation Procedure
Black Box Networks P ICO systems 5 Installation procedure For installation purposes the PICO units are factory Pre-Set for 150 meters. If the Pico link distance is less than 50 meters, the beam should be adjusted, with the special tool(see below) 5.1 Installation of the link... - Page 18 Black Box Networks P ICO systems 5. Fine Adjustment is required after the unit has been aligned with the internal pointing device. Fine alignment is applicable for vertical and horizontal orientations. These movements must be done using the fine alignment screws Adjust first the horizontal then the vertical screw 6.
- Page 19 Black Box Networks P ICO systems Fiber optical link between the two heads. TP Link Copper side link between the head and the Network equipment. RX OK There is enough light to start communicate through the link. Level 1 25% of the total (acceptable by the receiver) incoming power...
- Page 20 Black Box Networks P ICO systems Pico Manual v5.1 The required installation tools: screwdriver 10 mm wrench 2 pcs 13 mm wrench for fixing the bracket Punch-down tool for the TP cord Please note: Fixing of unit to a rigid surface is very important for long-term alignment.
-
Page 21: The Connection Of The Outdoor Box
Black Box Networks P ICO systems 5.2 The Outdoor interconnection unit The outdoor interconnection unit (OIU) provides the power supply for the head. This unit provides +8VDC, GND, -8VDC and the 30VDC for the head. Ensure that the cables are connected as it seen below. - Page 22 Black Box Networks P ICO systems Warning! The wrong polarity of the cables can damage the head! 5.2.3 The UTP Connecting Unit This unit is used to connect the data cable coming from the head to the data cables coming from the local network.
-
Page 23: Mounting Bracket Fixing
(e.g. link ON) and cables. If there’s no LINK signal, connect the network equipments back-to-back omitting the Black Box system to ensure that they work properly. Should they operate well, get in contact with your supplier or call the technical support (a Problem Report Form can be found at the end of this book). -
Page 24: Warranty Conditions
Black Box product, even if Black Box Corp. has been advised of the possibility of such damage. If you purchased the Black Box product in the United States, some states do not allow the limitation or exclusion of liability for incidental or consequential damages, so the above limitation may not apply to you. - Page 25 ICO systems Pico Manual v5.1 merchantability and fitness for a particular purpose. Black Box Communication Corp. neither assumes nor authorises any other person to assume for it any other liability in connection with the sale, installation, use or maintenance of the product.
- Page 26 Black Box Networks P ICO systems Pico Manual v5.1 5. Schematic for connecting LAN’s Lan 1 Server TP Cable IR Transmission Distance max 150 m TP Cable Server Lan 2 Schematic for Home Networking Side “A” Side “B” Computer 2...
-
Page 27: Twisted Pair Cabling
Black Box Networks P ICO systems Pico Manual v5.1 7 Twisted pair cabling V5.1...
