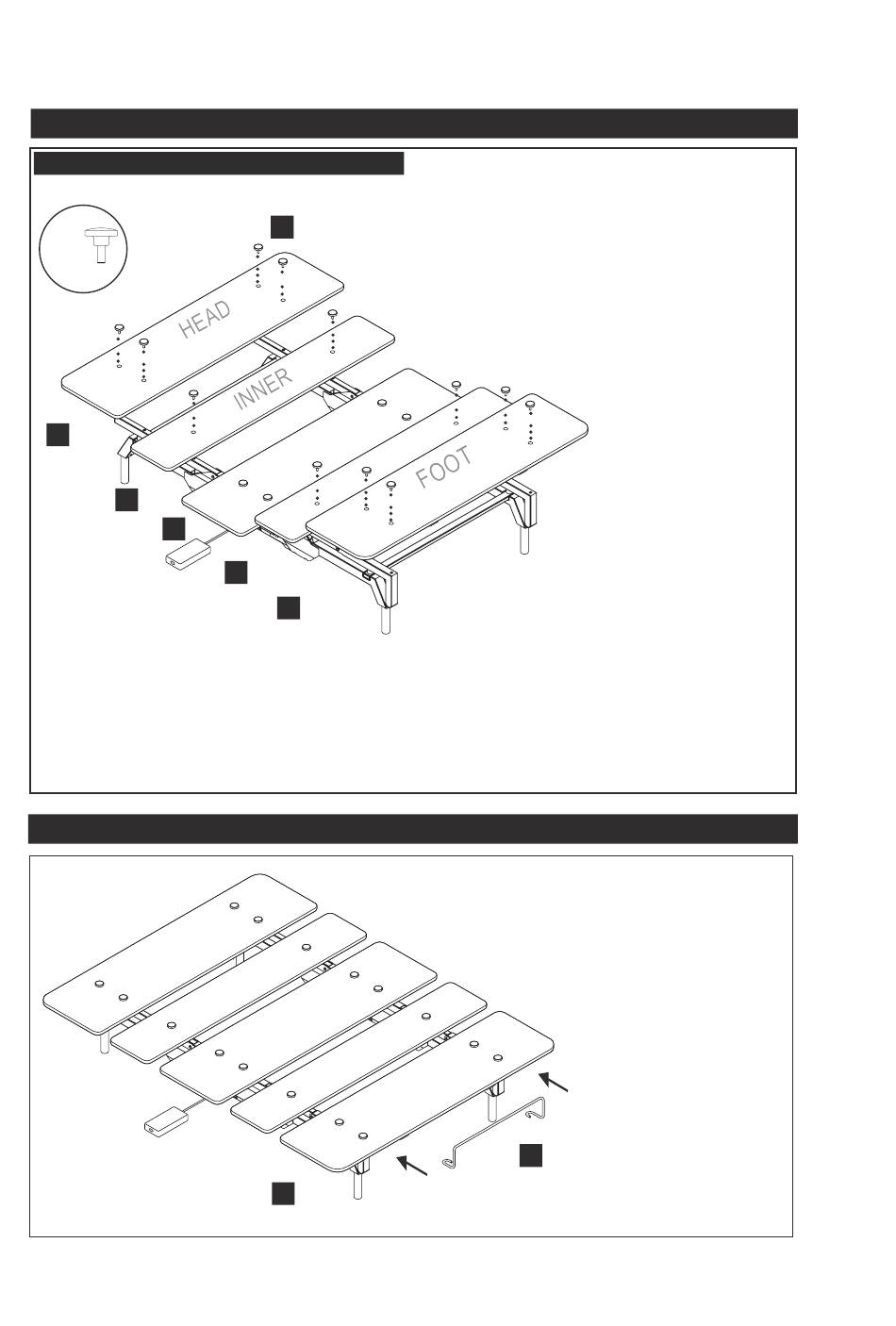

STEP 6: MOUNTING THE OTHER PLATFORMS
USE LABELS ON SIDE RAILS AND PLATFORMS
12x
F
G
H
IMPORTANT:
Use the labels on the Side Rails (A, B) to ensure the Platforms are at the right end.
•
• Ensure the the Platforms are oriented correctly. The curved edges should face outwards and the Brack-
ets for the Retainer Bar should face downwards.
STEP 7: ATTACHING THE RETAINER BAR
N
L
M
M
1. Use 4 Platform Screws
(N) to attach the nar-
rower, Inner Platforms
(G, L) to the Side Rails
on either side of the
Base Platform.
2. Lay the Head and Foot
Platforms (F, M) in po-
sition on the Side Rails.
3. Use the final 8 Platform
screws (N) to attach the
Head and Foot Plat-
forms to the Side Rails.
(A, B).
1. Move the Retainer
Bar (O) into position.
The two ends of the
Bar should be inside
the Brackets at the
end of the Foot Plat-
form (M).
2. Press the Retainer
Bar (O) firmly to-
wards the Bed Frame
to click it into place.
O
