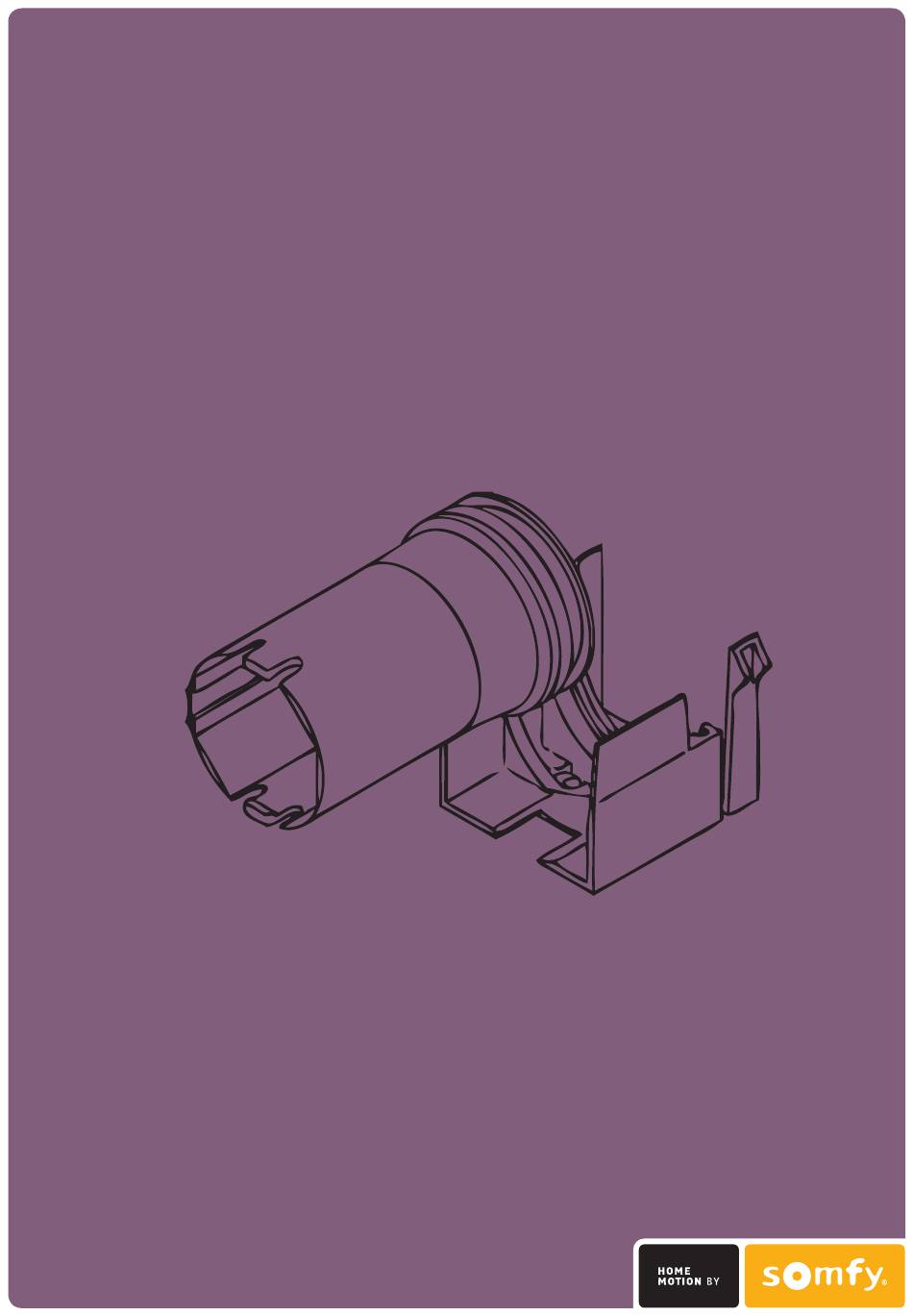

- Page 1 CTS 40 guide • Cts 40 product data • Cts 40 components list • Cts 40 installation advice Copyright © 2009 somfy sAs. All rights reserved - V1 - 06/2009...
- Page 2 • this product is for interior use only. • the Cts 40 cannot be used inside sealed double-glazing. • the Cts 40 system fits only with tubes and headrails compatible B Al lo on Bl i n D s with accessories mentioned p. 4.
- Page 3 20 ± 0.15 All values are in mm t e C H n i C A l s p e C i F i C A t i o n s : CTS 40 4 kg maximum load per cord...
- Page 4 Headrail accessories • For octagonal tube 40 x 0.6 mm imBAC • moQ*: 10 pcs • interface drawing 9147327A • Cts 40 bracket for 51 x 57 headrail • moQ*: 1 pc Ref.: 9147327 • Unit weight: 19 g • interface drawing 9500736A •...
- Page 5 A l l A t i o n A D V i C e This part describes instructions related to authorised applications, compatible associated products and installation of the CTS 40 into the blind system. All instructions must be strictly followed whatever the specification of the system or processes.
- Page 6 C T S 4 0 i n s t A l l A t i o n A D V i C e p R e p A R e t H e l i F t i n g C o R D A n D t H e l A D D e R B R A i D Lifting cord Cut the cord at the blind height + 160 mm.
- Page 7 C T S 4 0 i n s t A l l A t i o n A D V i C e t H R e A D t H e C o R D t H R o U g H t H e B e A R i n g s ( A n D t H e s t A C K o F s l A t s ) place the cord and the ladder in the bearing.
- Page 8 C T S 4 0 i n s t A l l A t i o n A D V i C e s l i D e t H e t U B e i n t o t H e C o n e s Secure the cords onto the cones during this operation.
- Page 9 C T S 4 0 i n s t A l l A t i o n A D V i C e i n s e R t t H e p l U g e n D B R A C K e t i n t o t H e H e A D R A i l A n D o n t o t H e p l U g e n D Fix and secure the plug end bracket to the headrail.
- Page 10 Cyprus: Somfy Middle East +60 (0)3 228 74743 +357 (0) 25 34 55 40 UAe: Somfy Gulf mexico: Somfy Mexico SA de CV +971 (0)4 88 32 808 Czech Republic: Somfy Spol s.r.o. +52 (0) 55 4777 7770 +420 (0) 296 372 486-7...
