Roller Blind - Installation/Program Guides
Stay up to date with the online version
https://poweredblinds-somfy.swipeguide.com/guide/roller-blind-installationprogram-
guides
Created 2/1/2022 10:24 AM
somfy
Version 41 | en_US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roller Blind and is the answer not in the manual?

Questions and answers

Joseph Ettinger
March 19, 2025

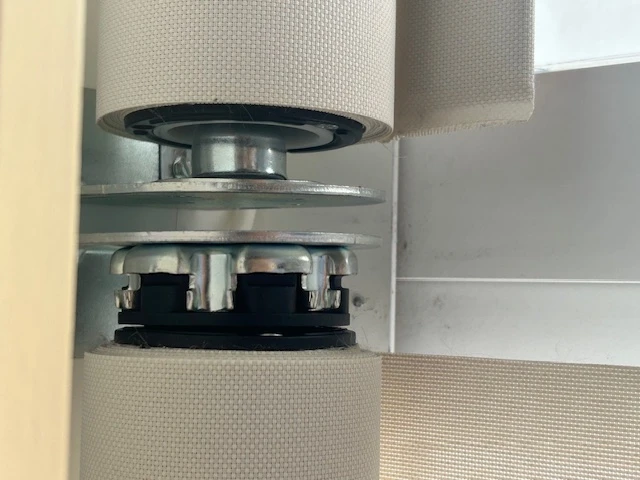

I have two shades on one channel. They became uneven. Two questions. First how to remove this roll. Second is it possible to level them off without removing one.

User image 67dae87a871a9
0
3 comments:
Mr. Anderson
March 19, 2025

The context does not provide specific instructions on how to remove a SOMFY roller blind. However, it does mention installation details, such as ensuring the brackets are level and properly spaced. Typically, to remove a roller blind, you would release it from the brackets by pressing the release lip or unclipping the blind from its mounting points.

Regarding leveling two SOMFY roller blinds on one channel without removing one, the context does not explicitly state this. However, it does explain how to adjust the up and down limits of a motorized shade using a SOMFY remote. If both blinds are on the same channel, you may be able to adjust their limits using the remote without physically removing either blind.

This answer is automatically generated

0
Joseph Ettinger
March 19, 2025

@Mr. Anderson Can you specifically, based on picture I have sent toy tell me how remove roller?

0
Joseph Ettinger
March 19, 2025

Can I get manual for this specific type of shades (see attached icture)

User image 67daeb4c06b84
0

Related Manuals for SOMFY Roller Blind

Summary of Contents for SOMFY Roller Blind

  • Page 1 Roller Blind - Installation/Program Guides Stay up to date with the online version https://poweredblinds-somfy.swipeguide.com/guide/roller-blind-installationprogram- guides Created 2/1/2022 10:24 AM Version 41 | en_US...

  • Page 2: Table Of Contents

    Table of Contents Roller Blind Installation Guide Simplicity Roller Blind Installation Guide Adjust the Uppper Stop Position Adjust the Lower Stop Position Set a 'MY' Position Somfy Rollup Motor Reset Somfy Rollup 28 Motor Control Programming Pairing-Deleting A Single Channel Control...

  • Page 3: Roller Blind Installation Guide

    • Screws and rawl plugs Step 2 / Somfy Motor The Somfy motor powering your roller blind has an integral rechargeable li-ion battery.  The battery within the motor is supplied with enough charge to provide blind operation before a recharge is required.
  • Page 4 Do not operate the blind while the motor is charging Step 4 / STANDARD ROLLER BLIND INSTALLATION Marking and fitting the brackets Put the blind into the corresponding ends of the brackets, then offer the blind into the position where it will fit in your window.
  • Page 5 Important note: Ensure that the plunger at the idle end (opposite the motor end) is depressed by at least 5mm when marking the hole positions.  Make sure the 'Somfy' logo on the motor plate is orientated 'UP' for easy coupling with the bracket. Version 41...
  • Page 6 Step 6 / CASSETTE ROLLER BLIND INSTALLATION Bracket Types There are two bracket options for open cassette blinds, face fix and top fix.  For a blind up to 1 metre wide attach two brackets fitted approximately 75mm from each end of the blind.
  • Page 7 Step 8 / CASSETTE ROLLER BLIND INSTALLATION Marking and fitting the top & face fix brackets SPACING - Mark 2 x brackets approx 75mm in from each end, with any additional brackets spaced evenly between them. TOP FIX - Position each bracket from the centre of the fixing hole a minimum distance of 45mm from the back of any obstruction and with the lip to the back.
  • Page 8 Important note: Ensure that the plunger at the idle end (opposite the motor end) is depressed by at least 5mm when marking the hole positions.  Make sure the 'Somfy' logo on the motor plate is orientated 'UP' for easy coupling with the bracket. Version 41...
  • Page 9 Step 11 / POWER UP & TESTING Your roller blind is tested to ensure it is operating correctly prior to dispatch. During this process, the upper and lower stop positions are preset based on your height measurement. We also pair the control ordered to the motor (if a control was ordered). ...
  • Page 10 Step 13 / BLINDS SUPPLIED WITHOUT A SOMFY CONTROL If you didn’t order a control with your blind(s), then the control you already have requires pairing to the blind. The blind supplied has been set up with the up/down direction correctly defined and the stopping positions preset.
  • Page 11 The LED on the motor head blinks RED slowly before and after operation • The motor battery is low and requires charging External references Go to: Somfy Rollup Motor Reset Go to: Adjust the Uppper Stop Position Go to: Adjust the Lower Stop Position Version 41...

  • Page 12: Simplicity Roller Blind Installation Guide

    • Screws and rawl plugs Step 2 / Somfy Motor The Somfy motor powering your roller blind has an integral rechargeable li-ion battery.  The battery within the motor is supplied with enough charge to provide initial operation before a recharge is required.
  • Page 13 Do not operate the blind while the motor is charging Step 4 / ROLLER BLIND INSTALLATION Marking and fitting the brackets Put the blind into the corresponding ends of the brackets, then offer the blind into the position where it will fit in your window.
  • Page 14 Step 6 / POWER UP & TESTING Your roller blind is tested to ensure it is operating correctly prior to dispatch. During this process, the upper and lower stop positions are preset based on your height measurement. We also pair the Situo control to the motor. ...
  • Page 15 Step 8 / SITUO PROGRAM BUTTON All the instructions listed in the roller blind section can be completed with the Situo control (adjust stop positions, 'my' position, motor reset).  However the handset cover may require removing to access the program button if a motor reset is required.

  • Page 16: Adjust The Uppper Stop Position

    Adjust the Uppper Stop Position Step 1 / Warning The upper stop position cannot be adjusted if you don't allow the blind to stop on its own accord. When pressing the Up button, allow the blind to stop automatically before carrying on with the adjustment procedure.
  • Page 17 Step 3 / Use the Up and / or Down buttons to adjust the blind to the new upper stop position. Warning If adjusting the upper position on a cassette blind, make sure you leave the bottom bar hanging down from the profile.

  • Page 18: Adjust The Lower Stop Position

    Adjust the Lower Stop Position Step 1 / Warning The lower stop position cannot be adjusted if you don't allow the blind to stop on its own accord. When pressing the Down button, allow the blind to stop automatically before carrying on with the adjustment procedure.
  • Page 19 Step 3 / Warning Make sure you don't lower the fabric too much or the fabric will reverse roll around the blind roller tube! Use the Up and / or Down buttons to adjust the blind to the new lower stop position. Step 4 / With the blind at the desired new lower stop position, PRESS &...

  • Page 20: Set A 'My' Position

    Set a 'MY' Position Step 1 / This instruction shows a Telis 1 handset used for the programming procedure, but any Somfy control can be used. Step 2 / SETTING Use the Up and / or Down buttons to operate the blind and briefly press the 'MY' button to stop at the desired ‘MY’...
  • Page 21 Step 4 / USING With the blind stationary prior to activating, BRIEFLY PRESS the ‘MY’ button - the blind will automatically operate to the 'MY' position. Step 5 / DELETE THE 'MY POSITION Send the blind to the ‘MY’ position - allow the blind to operate to the 'MY' position and stop.

  • Page 22: Somfy Rollup Motor Reset

    All setting are deleted and the motor has been reset. The program/reset button will differ depending on the Somfy motor model - see images for reference. Rather than count, wait for the blind to jog x3 times - don't release the button until you see the blind jog briefly Up/Down three times.
  • Page 23 Step 3 / CHECK DIRECTION Press the DOWN button.   If the blind travels down, move on to the next step.  If the blind travels up, change direction by PRESSING & HOLDING the 'MY' button until the blind jogs (approx 5 secs). Press the DOWN button to check the direction has reversed.
  • Page 24 Step 6 / CONFIRM THE STOP POSITIONS Once the blind has stopped at the upper stop position, PRESS & HOLD the 'MY' button until the blind jogs to confirm the stop positions have been recorded (approx 5 secs). Step 7 / PAIR THE CONTROL &...

  • Page 25: Somfy Rollup 28 Motor Control Programming

    Pair or delete a control to a blind using the motor program/reset button - applicable to: Somfy Rollup 28 RTS Somfy Rollup 28 RTS Li-ion (integral battery) This procedure enables a control to be paired to a blind without the need to disconnect power to other blinds in range.
  • Page 26 Step 3 / PAIRING/DELETING A CONTROL Take the control and briefly press the program button - the blind will jog: • A control not previously paired is now paired to the blind motor. • A control previously paired is now deleted from the blind motor.

  • Page 27: Pairing-Deleting A Multi Channel Control

    Pair or delete a control channel to a blind using the motor program/reset button - applicable to: Somfy Rollup 28 RTS Somfy Rollup 28 RTS Li-ion (integral battery) This procedure enables a control channel to be paired to a blind without the need to disconnect power to other blinds in range.
  • Page 28 Step 3 / SELECT THE CONTROL CHANNEL TO PAIR/DELETE Take the control and select the relevant channel: • Use the channel selector button on the Telis 4 or Situo 5 handset to light up the channel • Press the relevant channel button on the Smoove Origin 4 wall switch to light up the channel Step 4 / PAIRING/DELETING A CONTROL CHANNEL...

  • Page 29: Delete All Recorded Controls And Pair A New Control-Channel

    This process is carried out using the motor program/ reset button - applicable to: Somfy Rollup 28 RTS Somfy Rollup 28 RTS Li-ion (integral battery) Step 2 / Press and hold the program/reset button on the motor head until the blind jogs Up/Down twice - then release (about 5-6 seconds).
  • Page 30 Step 3 / PAIR THE CONTROL OR CHANNEL Take the control - if pairing with a multi channel control, make sure you select the relevant channel first. Briefly press the program button - the blind will jog. All previously recorded controls are now deleted and the new control or channel is now paired.
