4K DisplayPort over HDBaseT Extender
Distributes uncompressed 4K @30 Hz UHD video,
audio, power, RS-232, and USB 2.0 up to 330 feet
(100 m) over a single CAT6a/7 cable.
Contact
Order toll-free in the U.S. or for FREE 24/7 technical support:
Information
Call 877-877-BBOX (outside U.S. call 724-746-5500)
www.blackbox.com • info@blackbox.com
Chapter
UVX-DP-TP-100
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box UVX-DP-TP-100
Summary of Contents for Black Box UVX-DP-TP-100
- Page 1 Chapter UVX-DP-TP-100 4K DisplayPort over HDBaseT Extender Distributes uncompressed 4K @30 Hz UHD video, audio, power, RS-232, and USB 2.0 up to 330 feet (100 m) over a single CAT6a/7 cable. Contact Order toll-free in the U.S. or for FREE 24/7 technical support: Information Call 877-877-BBOX (outside U.S.
- Page 2 FCC and IC RFI Statements/NOM Statement FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufac- turer’s instructions, may cause inter ference to radio communication.
- Page 3 NOM Statement 5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
- Page 4 NOM Statement 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18. Servicio por personal calificado deberá ser provisto cuando: A: El cable de poder o el contacto ha sido dañado; u B: Objectos han caído o líquido ha sido derramado dentro del aparato;...
- Page 5 10. Refer all servicing to qualified service personnel. Disclaimer Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice.
-
Page 6: Table Of Contents
Table of Contents Table of Contents Specifications ..................7 2. Overview ....................9 Introduction ................9 Features ..................9 What's Included ............... 10 Hardware Description .............. 10 3. Connection and Installation ............... 12 877-877-2269 | blackbox.com Page 6... -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications Transmitter Connectors (1) 12-VDC barrel connector, (1) HDBaseT OUT, (1) 3-pin Phoenix connector, (1) DisplayPort IN, (1) Audio IN, (1) Audio OUT, (1) USB Type B host connector Input Up to 3840 x 2160 @30 Hz (UHD) Resolution Support Maximum... - Page 8 Chapter 1: Specifications 1. Specifications (continued) Receiver (continued) Maximum Via CAT6a/7 cables: Distance Up to 328 feet (100 m) at 3840 x 2160 @30 Hz, 4:2:0, or 1080p @60 Hz output resolution; Via CAT5e/6 cables: Up to 224 feet (70 m) at 3840 x 2160 @30 Hz; Up to 328 feet (100 m) at 1080p @30 Hz resolution General (Transmitter and Receiver) ESD Protection...
-
Page 9: Overview
2. Overview 2.1 Introduction The UVX-DP-TP-100 is a 4K DisplayPort over HDBaseT Extender with USB 2.0 and audio passthrough. It distributes uncompressed 4K @30 Hz UHD video, audio, power, RS-232, and USB 2.0 together up to 330 feet (100 m) over a sin- gle CAT6a/7 cable. -
Page 10: Hardware Description

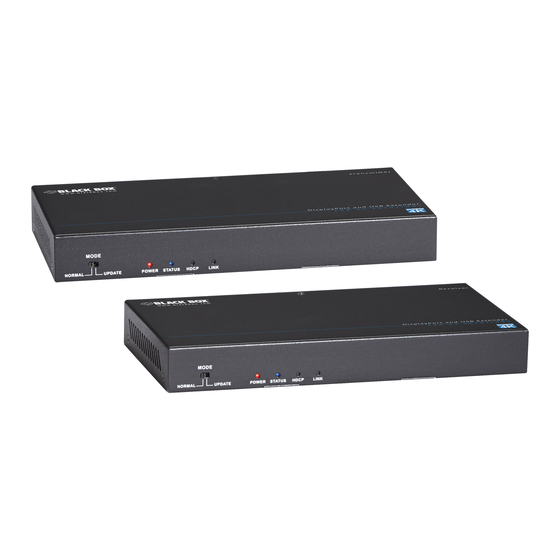

Chapter 2: Overview • (2) mounting brackets • This user manual 2.4 Hardware Description Figures 2-1 and 2-2 show the front and back panels of the receiver. Tables 2-1 and 2-2 describe their components. 2 3 4 5 Receiver (top photo) Transmitter (bottom photo) - Page 11 Chapter 2: Overview Table 2-1. Transmitter front- and back-panel components. Number Component Description Mode Switches the Mode for the RS-232 port. Normal: RS-232 HDBaseT passthrough. Update: RS-232 firmware update. Power LED ON: The transmitter is powered on. OFF: The transmitter is powered off. Status LED Blinking: The transmitter is working properly.
- Page 12 Chapter 2: Overview Table 2-2. Receiver front- and back-panel components. Number Component Description Mode Switches the Mode for the RS-232 port. Normal: RS-232 HDBaseT passthrough. Update: RS-232 firmware update. Power LED ON: The receiver is powered on. OFF: The receiver is powered off. Status LED Blinking: The receiver is working properly.
-
Page 13: Connection And Installation
Chapter 3: Connnection and Installation 3. Connection and Installation 1. Using quality DisplayPort cables, connect a DisplayPort source (Blu-ray ™ games console, satellite/cable TV, media server, etc.) to the DisplayPort IN port of the transmitter. NOTE: Make sure that the source and display are 4K compatible if you are attempting to transmit an Ultra HD signal—check that all devices are correctly configured for input/output compatibility. - Page 14 Chapter 3: Connnection and Installation Audio DP IN 4K DisplayPort over HDBaseT Extender Transmitter (UVX-DP-TP-100) CATx cable 4K DisplayPort over HDBaseT Extender Receiver (UVX-DP-TP-100) Audio DP OUT Monitor Earphone Figure 3-1. Installation diagram. 877-877-2269 | blackbox.com Page 14...
- Page 15 NOTES 877-877-2269 | blackbox.com Page 15...
- Page 16 You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less. © Copyright 2016. Black Box Corporation. All rights reserved. Black Box and the Double Diamond ®...
